Air Atmosphere Ceramic Sintering The Bf125-17 Temperature Bell Furnace with Effective Chamber Dimensions 550*500*550mm D*W*H

Air Atmosphere Ceramic Sintering The Bf125-17 Temperature Bell Furnace with Effective Chamber Dimensions 550*500*550mm D*W*H
Air Atmosphere Ceramic Sintering The Bf125-17 Temperature Bell Furnace with Effective Chamber Dimensions 550*500*550mm D*W*H Air Atmosphere Ceramic Sintering The Bf125-17 Temperature Bell Furnace with Effective Chamber Dimensions 550*500*550mm D*W*H Air Atmosphere Ceramic Sintering The Bf125-17 Temperature Bell Furnace with Effective Chamber Dimensions 550*500*550mm D*W*H Air Atmosphere Ceramic Sintering The Bf125-17 Temperature Bell Furnace with Effective Chamber Dimensions 550*500*550mm D*W*H Air Atmosphere Ceramic Sintering The Bf125-17 Temperature Bell Furnace with Effective Chamber Dimensions 550*500*550mm D*W*H Air Atmosphere Ceramic Sintering The Bf125-17 Temperature Bell Furnace with Effective Chamber Dimensions 550*500*550mm D*W*H

Large Image :  Air Atmosphere Ceramic Sintering The Bf125-17 Temperature Bell Furnace with Effective Chamber Dimensions 550*500*550mm D*W*H

Product Details:
Contact Now

Air Atmosphere Ceramic Sintering The Bf125-17 Temperature Bell Furnace with Effective Chamber Dimensions 550*500*550mm D*W*H

Description
Model NO.: Bf125-17 Range Of Applications: Industrial
Type: Electric Holding Furnace Usage: Ceramic Sintering
Fuel: Electric Atmosphere: Air
Effective Chamber Dimensions: 550*500*550mm(D*W*H) Transport Package: Wooden Packaging
Specification: 1740*2780*2505mm(W*H*D) Trademark: Chitherm
Origin: China HS Code: 8514101000
Supply Ability: 50 Sets/Year Customization: Available
Certification: ISO Place Style: Vertical

1. Application:

This equipment is mainly designed for  electronic ceramic materials, magnetic materials, ceramic filters, etc. require high uniformity of temperature field or multi-species small batch production occasions.

2. Technical Specification:
  1. Effective Chamber Size: 500×500×500mm (D×H×W)
  2. Rated Temperature: 1600°C
  3. Maximum Temperature: 1700°C
  4. Temperature Control Points: 1 point
  5. Temperature Uniformity: ±5°C (tested at 1500°C for 2 hours under no-load conditions)
  6. Temperature Control Method: Intelligent PID controller with auto-tuning function
  7. Control System: High-performance phase-shift voltage regulation + SCR thyristor module control
  8. Heating Elements: U-shaped silicon molybdenum rods (MoSi2)
  9. Control Instrument: Dahua Chino KP1000 Temperature Controller
  10. Alarm & Protection: Audible & visual alarms for overtemperature, thermocouple break, overload, overtravel, and deviation
  11. Power Supply: 220/380V AC, 50Hz
  12. Atmosphere System: Dry, clean, oil-free compressed air or high-purity oxygen
  13. Overall Dimensions: 1740×2780×2505mm (W×D×H)

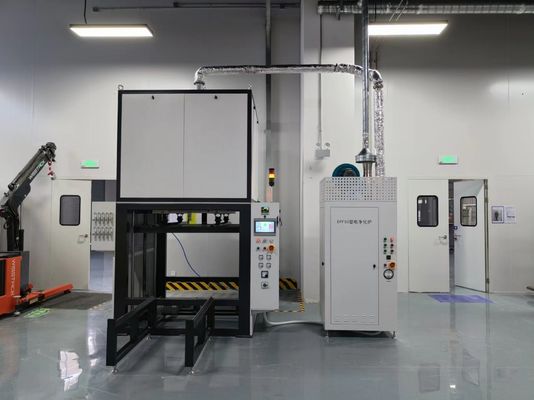

Air Atmosphere Ceramic Sintering The Bf125-17 Temperature Bell Furnace with Effective Chamber Dimensions 550*500*550mm D*W*H 0


2. Delivery List
Table 1 Delivery list
  Item Note Qty.
Basic Components Furnace   1 SET
Inspection Certificates Certificates of major outsourced components 1 SET
Technical Documents Instructions, technical documents of the major outsourced parts, etc 1 SET
Electrical purification furnace   1 SET
Key Components Silicon molybdenum rods U-shaped Model MK1800 (Diameter Range: 6-12mm) 1 SET
Touchscreen   1 SET
Thermocouple R-Type 1 SET
Temperature Control Module   1 SET
Spare Parts Heating Element U-shaped silicon molybdenum heater 1 PC

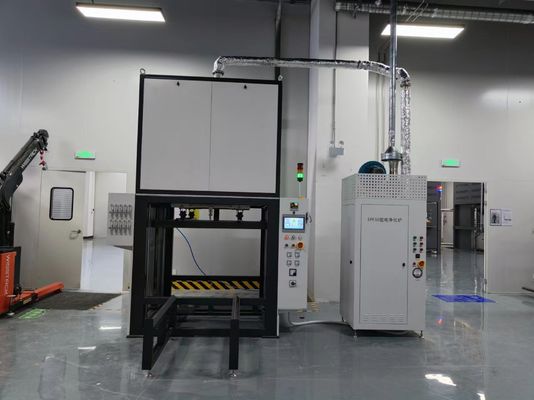

Air Atmosphere Ceramic Sintering The Bf125-17 Temperature Bell Furnace with Effective Chamber Dimensions 550*500*550mm D*W*H 1

3. Equipment Normal Operating Conditions
  1. Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;
  2. Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2-  0.4MPa, gas consumption of 10 - 30 m3/h;
  3. Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 35 m3/h
  4. Ground Requirements: horizontal, no obvious vibration, load-bearing> 600 Kg/m2;
  5. Power Condition(TBD): capacity > 70kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;

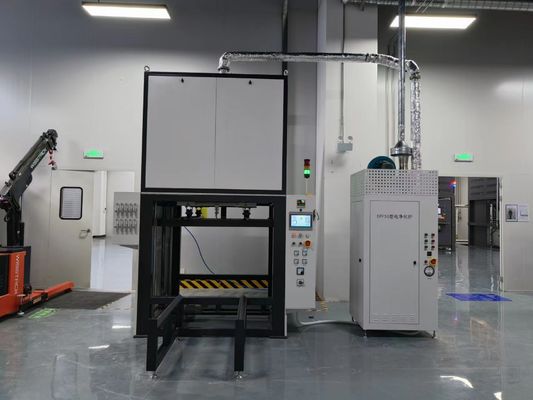

  6. Installation Site:3800mm×2650mm×3500mm(D×W×H), with an installation area greater than 12m2.Air Atmosphere Ceramic Sintering The Bf125-17 Temperature Bell Furnace with Effective Chamber Dimensions 550*500*550mm D*W*H 2
