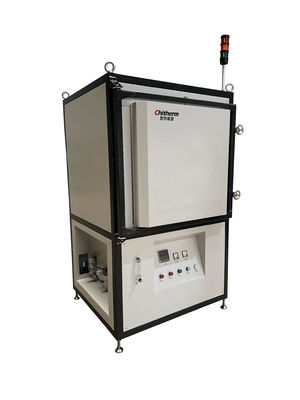

HBF52-17 Type High-temperature Box Furnace With Effective Chamber Dimensions 350300500mm

Large Image : HBF52-17 Type High-temperature Box Furnace With Effective Chamber Dimensions 350*300*500mm

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF52-17

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10500
Packaging Details:	114196116CM
Delivery Time:	60 work days
Payment Terms:	L/C,T/T

Contact Now

HBF52-17 Type High-temperature Box Furnace With Effective Chamber Dimensions 350300500mm

Description

Atmosphere:	Air	Effective Chamber Dimensions:	350300500mm(WHD)
Thermocouple:	B Type	Max Temp:	1700ºC
Rated Temp:	1650ºC	Insulation Power:	≤25kw
Temperature Control Points:	1
Highlight:	high temperature box furnace , HBF52-17 type Box furnace

HBF52-17 Type High-Temperature Box Furnace

Key Specifications

Attribute	Value
Atmosphere	Air
Effective Chamber Dimensions	350×300×500mm (W×H×D)
Thermocouple	B Type
Max Temperature	1700ºC
Rated Temperature	1650ºC
Insulation Power	≤25kW
Temperature Control Points	1

Applications

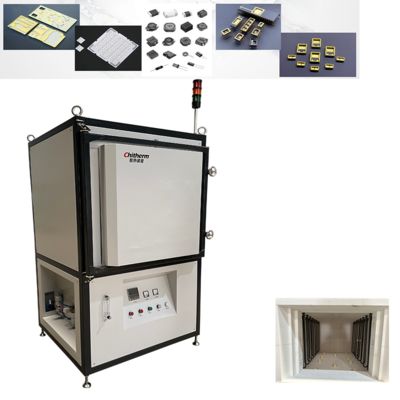

This high-temperature box furnace is designed for epoxy curing and sintering processes requiring high cleanliness, particularly suitable for manufacturing electronic ceramics, ceramic filters, magnetic materials, and electronic devices.

Technical Specifications

Rated Temperature: 1650ºC
Maximum Temperature: 1700ºC
Furnace Chamber Dimensions: 480×390×540mm (W×H×D)
Effective Loading Dimensions: 350×300×500mm (W×H×D)

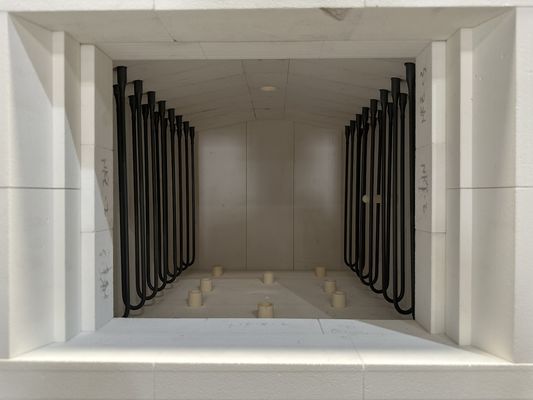

Heating Element: U-shaped molybdenum disilicide rod
High-purity alumina foam ceramic inner chamber ensures cleanliness
Temperature Control Stability: ±1ºC with PID self-tuning
Temperature Uniformity: ±2.5ºC (tested at 1650ºC)
4×16 segment temperature control program
Comprehensive alarm protection system
Surface Temperature Rise: ≤40ºC
Equipment Weight: Approximately 950kg

Product Images

Delivery Contents

Item	Specification	Quantity
Furnace	Main unit	1 PC
Certificates	Furnace and components	1 Set
Technical Documents	Specifications and manuals	1 Set
Silicon-Molybdenum Rod	6-12 U-shaped	1 Set
Thermocouple	THERMOWAY, B Type	1 PC

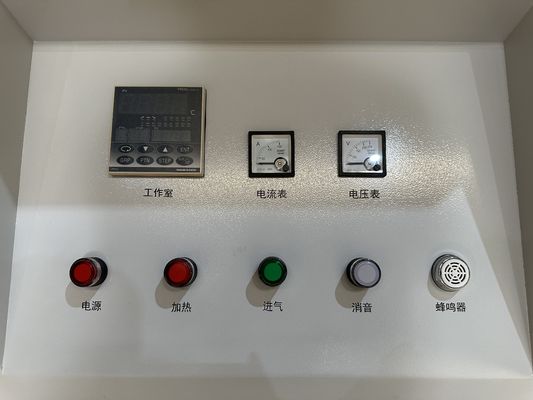

Temperature Control Device	Shimaden	1 Set

Installation Requirements

Environment: 0-40ºC, ≤80% RH, no corrosive gas

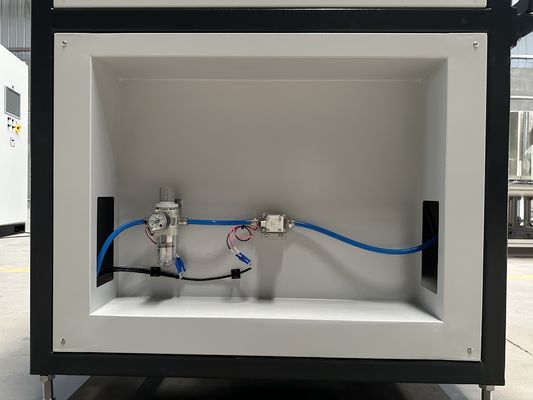

Process Air: Clean, dry compressed air (0.2-0.4Mpa)
Ventilation: Minimum 10m³/h capacity
Floor: Level, >300kg/m² load capacity
Power: >34kVA, 3-phase 5-wire (220/380V, 50Hz)
Space: Minimum 2000×3000×1500mm (W×H×D)

Certifications

Packaging & Shipping

About Hefei Chitherm Equipment Co., Ltd.

We specialize in R&D, manufacturing, and sales of high-, medium-, and low-temperature industrial and laboratory furnaces. Our product range includes bell furnaces, box furnaces, vacuum furnaces, tube furnaces, and more, serving industries such as advanced ceramics, electronics, powder metallurgy, and new energy materials.

Frequently Asked Questions

What products does Chitherm offer?
We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and specialized kilns for various industrial applications.

What pre-sales services are available?
We offer consultation services and customizable solutions to meet specific process requirements.

What are Chitherm's core strengths?
As a high-tech enterprise, we combine patented technologies with core manufacturing capabilities to deliver superior thermal solutions.
