HBF52-17 Type High-temperature Box Furnace For Sintering Ceramic Filters

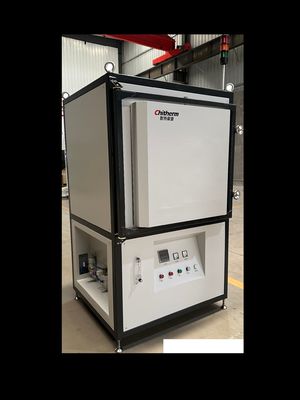

Large Image : HBF52-17 Type High-temperature Box Furnace For Sintering Ceramic Filters

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF52-17

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10500
Packaging Details:	114196116CM
Delivery Time:	60 work days
Payment Terms:	L/C,T/T

Contact Now

HBF52-17 Type High-temperature Box Furnace For Sintering Ceramic Filters

Description

Atmosphere:	Air	Effective Chamber Dimensions:	350300500mm(WHD)
Thermocouple:	B Type	Max Temp:	1700ºC
Rated Temp:	1650ºC	Insulation Power:	≤25kw
Temperature Control Points:	1	Surface Temperature Rise:	≤40ºC
Empty Furnace Holding Powe:	≤10kW	Heating Element:	U-shaped Molybdenum Disilicide Rod
Original Source:	China
Highlight:	HBF52-17 Sintering Box Furnace , HBF52-17 Box Furnace , Sintering Ceramic Filter Box Furnace

HBF52-17 High-Temperature Box Furnace

Professional sintering furnace designed for ceramic filters and high-temperature processes with precise temperature control and uniform heat distribution.

Key Specifications

Attribute	Value
Atmosphere	Air
Effective Chamber Dimensions	350×300×500mm (W×H×D)
Max Temperature	1700ºC
Rated Temperature	1650ºC
Heating Element	U-shaped molybdenum disilicide rod

Product Features

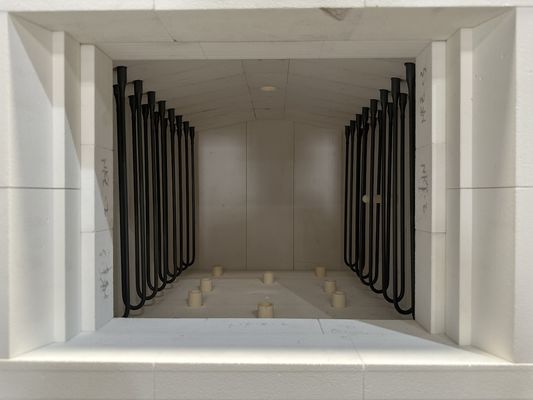

Vertical silicon-molybdenum rod heating elements for uniform temperature distribution
Precision temperature control (±2.5°C at 1650°C)
Comprehensive safety alarms for overheating and system failures
Ideal for electronic ceramics, ceramic filters, and magnetic materials
Energy efficient design with ≤25kW insulation power

Technical Specifications

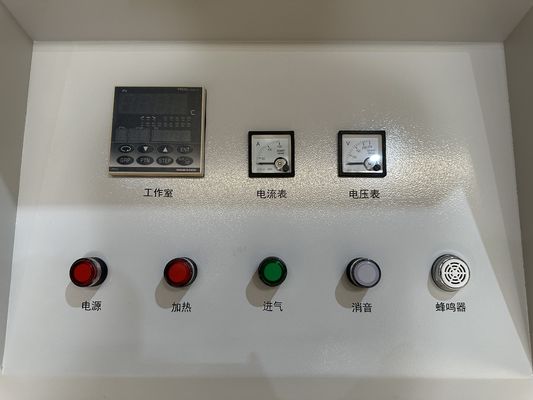

Temperature Control: 4×16 segment programmable controller

Power Requirements: Three-phase five-wire, 220/380VAC, 50Hz, >34kVA

Furnace Lining: Alumina product inner layer

Surface Temperature: ≤40ºC rise during operation

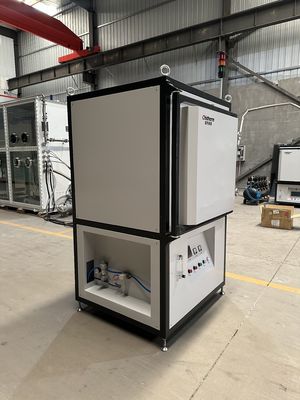

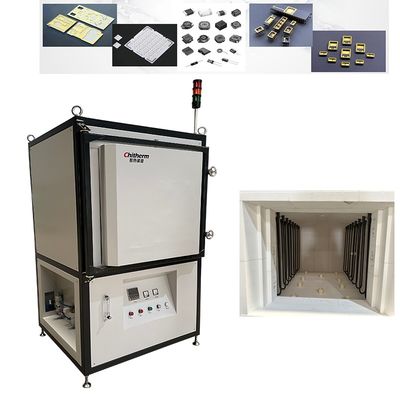

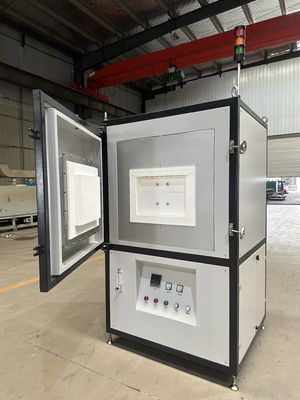

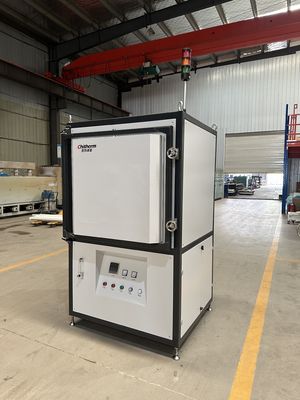

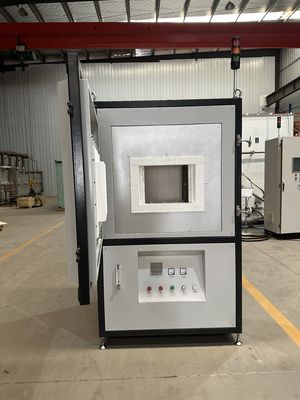

Product Images

Standard Delivery Contents

Component	Details	Quantity
Furnace Unit	Main assembly	1 PC
Heating Elements	U-shaped silicon-molybdenum rods	6-12 PC
Temperature Controller	Shimaden system	1 Set
Thermocouple	B Type	1 PC

Installation Requirements

Indoor installation with 0°C to 40°C ambient temperature
Minimum 5m² area with 3m ceiling height
850kg furnace requires solid, level foundation
Dedicated 380V ±10% three-phase power supply
Proper grounding essential for safety

Certifications

Packaging & Shipping

About Hefei Chitherm Equipment Co., Ltd.

Specialized manufacturer of industrial and laboratory furnaces for advanced ceramics, electronic components, and new material processes. Our product range includes:

Bell furnaces, box furnaces, and tube furnaces
Vacuum furnaces and hot air furnaces
Custom solutions for sintering, curing, and heat treatment

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and specialized kilns for industrial applications.

What pre-sales services are available?

Our team offers technical consultation and customized solutions to match your specific process requirements.

What are Chitherm's core strengths?

As a high-tech enterprise, we combine R&D expertise with patented technologies to deliver superior furnace solutions.
