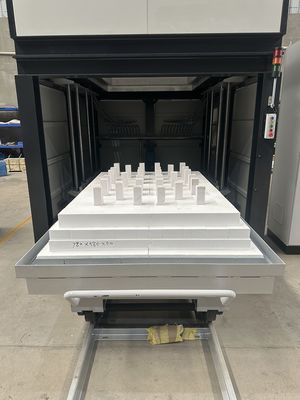

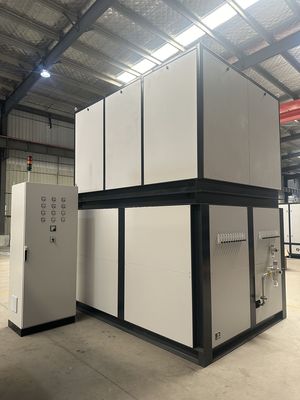

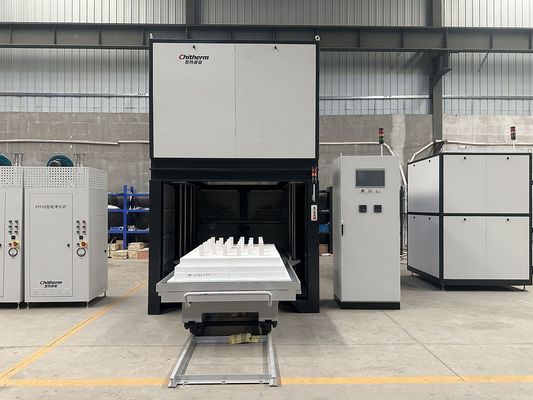

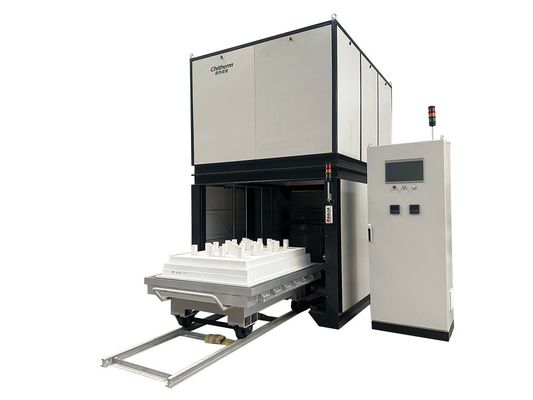

Bf580-17 High-Temperature Bell Furnace Produced By China Factory At 1700° C



2. Technical Specification:

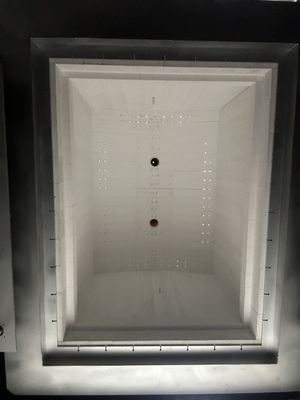

Effective Chamber Size: 1200×600×800mm (D×H×W)
External Reference Dimensions: 2880×3600×2240, excluding tracks and control cabinet
Temperature Range: 1700ºC~1750ºC
Heating Method: Heating Elements
Number of Heating Zones: 1
Insulation Material: Alumina Products / Ceramic Fiber Material
Atmosphere: Air / Oxygen
Number of Control Points: 2

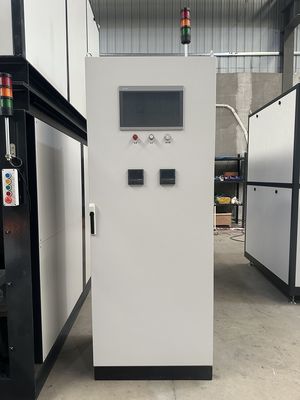

Temperature Control Instrument: Imported Intelligent Temperature Controller from Japan
Number of Gas Inlet Points: 20 points in total on opposite sides of the furnace body (10 points on each side)
Operating Power Supply: 220/380VAC 50Hz
Maximum Power: 120kW
Equipment Weight: Approximately 8000kg

3. Delivery List
4. Equipment Normal Operating Conditions

1. Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;
2. Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.4-  0.8MPa, gas consumption of 10 -30 m³/h;
3. Ventilation System: Non contact access user exhaust system, with an exhaust capacity greater than 50 m³/h
4. Ground Requirements: horizontal, no obvious vibration, load-bearing> 1000 Kg/m²;
5. Power Condition(TBD): capacity > 160kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
6. Installation Site: 6000mm×4000mm×4000mm(D×W×H), with an installation area greater than 24m².
