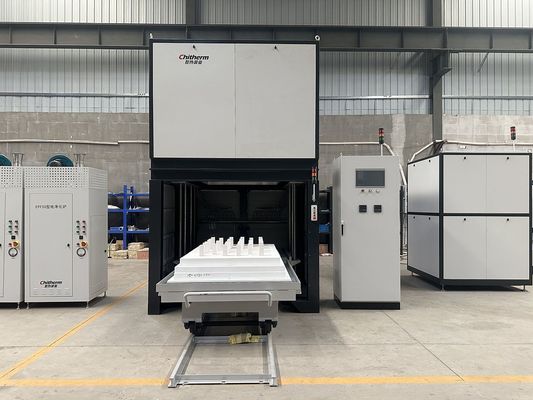

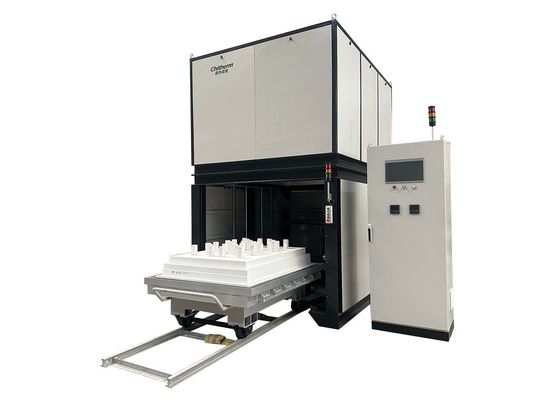

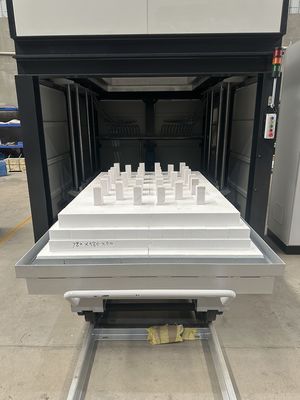

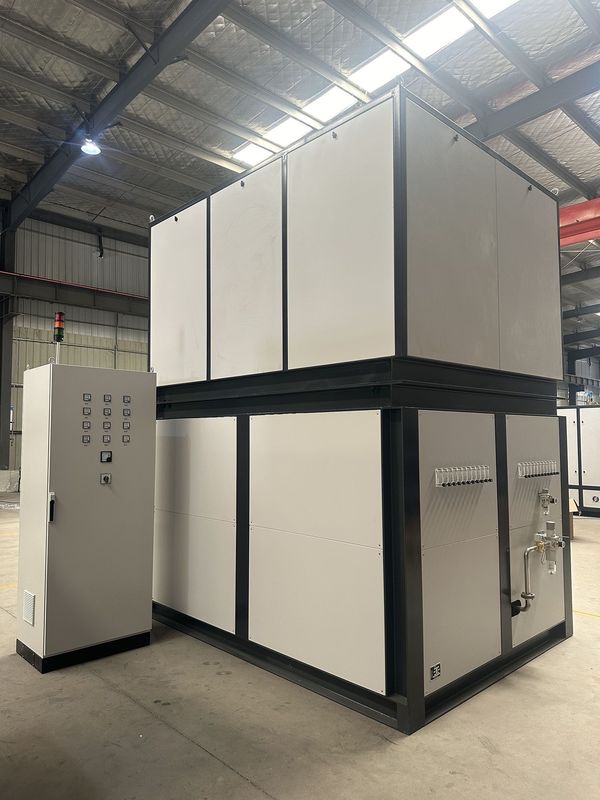

Bf580-17 High-Temperature Bell Jar Furnace Temperature Control Accuracy ± 1° C

Large Image : Bf580-17 High-Temperature Bell Jar Furnace Temperature Control Accuracy ± 1° C

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Bf580-17

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	100000
Delivery Time:	90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now

Bf580-17 High-Temperature Bell Jar Furnace Temperature Control Accuracy ± 1° C

Description

Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Air And O2
Effective Chamber Dimensions:	1200600800mm(DWH)	Warranty:	1 Year
Highlight:	High Temperature Bell Jar Furnace , Bf580-17 Bell Jar Furnace

1. Application:

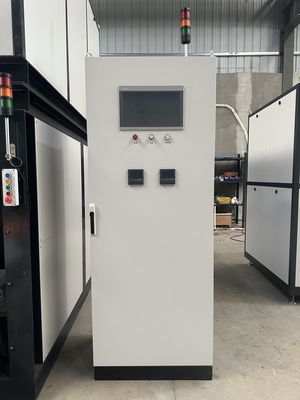

The equipment is widely used in high-temperature sintering processes for advanced ceramics, magnetic materials, electronic ceramic components, and other products. Bf580-17 High-Temperature Bell Jar Furnace Temperature Control Accuracy ± 1° C 0

Bf580-17 High-Temperature Bell Jar Furnace Temperature Control Accuracy ± 1° C 0

2. Technical Specification:

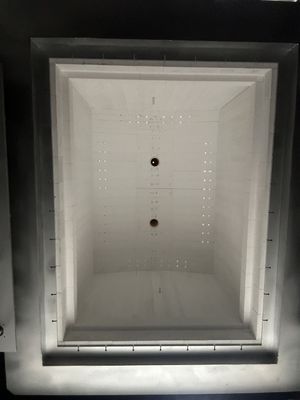

Effective Chamber Size: 1200×600×800mm (D×H×W)
External Reference Dimensions: 2880×3600×2240, excluding tracks and control cabinet
Temperature Range: 1700ºC~1750ºC
Heating Method: Heating Elements
Number of Heating Zones: 1
Insulation Material: Alumina Products / Ceramic Fiber Material
Atmosphere: Air / Oxygen
Number of Control Points: 2
Temperature Control Instrument: Imported Intelligent Temperature Controller from Japan
Number of Gas Inlet Points: 20 points in total on opposite sides of the furnace body (10 points on each side)

3. Delivery List

Table 1 Delivery list
	Item	Note	Qty.
Basic Components	Furnace		1 SET
	Inspection Certificates	Certificates of major outsourced components	1 SET
	Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 SET
Key Components	Silicon molybdenum rod	U-shaped silicon molybdenum heater	1 SET
	Power regulator		1 SET
	Thermocouple		1 SET
	temperature controller	Island Electric, Dahua Qianye, Eurofins and other similar brands	1 SET
	PLC	SIEMENS	1 SET
	Touch Screen	15 cun	1 SET
Spare Parts	Heating Element	U-shaped silicon molybdenum heater	1 PC

4. Equipment Normal Operating Conditions

Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;
Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.4- 0.8MPa, gas consumption of 10 -30 m³/h;
Ventilation System: Non contact access user exhaust system, with an exhaust capacity greater than 50 m³/h
Ground Requirements: horizontal, no obvious vibration, load-bearing> 1000 Kg/m²;
Power Condition(TBD): capacity > 160kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
Installation Site: 6000mm×4000mm×4000mm(D×W×H), with an installation area greater than 24m².
