Industrial Bf216-11 Bell Experimental Furnace For Low-Temperature Co-Fired Ceramics LTCC Casting Sintering Process

Large Image : Industrial Bf216-11 Bell Experimental Furnace For Low-Temperature Co-Fired Ceramics LTCC Casting Sintering Process

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Bf216-11

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	86000-86361
Packaging Details:	Wooden Package
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now

Industrial Bf216-11 Bell Experimental Furnace For Low-Temperature Co-Fired Ceramics LTCC Casting Sintering Process

Description

Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Air	Chamber Dimensions:	600600600mm
Applications:	Ltcc Substrates Bbo And Sintering Process	Thermcouple:	K
Transport Package:	Wooden Package	Specification:	152015202250mm
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Production Capacity:	50 Sets/Year
Highlight:	Bf216-11 Bell Furnace , Casting Bell Furnace , Industrial Bell Furnace

China-Made Industrial Furnaces, Bf216-11 Bell Furnace, Experimental Furnace for Low-Temperature Co-Fired Ceramics (LTCC) Casting, Sintering Process

Product Specifications

Attribute	Value
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Air
Chamber Dimensions	600600600mm
Applications	LTCC Substrates BBO and Sintering Process
Thermcouple	Type K
Transport Package	Wooden Package
Specification	152015202250mm
Trademark	Chitherm
Origin	China
HS Code	8514101000
Production Capacity	50 Sets/Year

Product Description

Applications

This industrial furnace is primarily designed for LTCC sintering processes, with additional capabilities for binder burning out and sintering of other relevant electrical products.

Technical Specifications

Rated Temperature: 850ºC
Max. Temperature: 1000ºC
Chamber Dimensions: 600mm×600mm×600mm (D×W×H)
Effective Dimensions: 400mm×400mm×400mm (D×W×H)

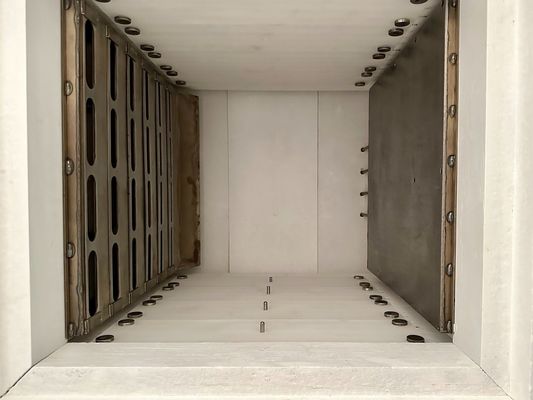

Chamber Insulation Material: Aluminosilicate Ceramic Fiber
Heating Elements: Resistance Coils in Ceramic Fiber Block
Thermcouple: Type K
Temperature Control Point: 4 Points

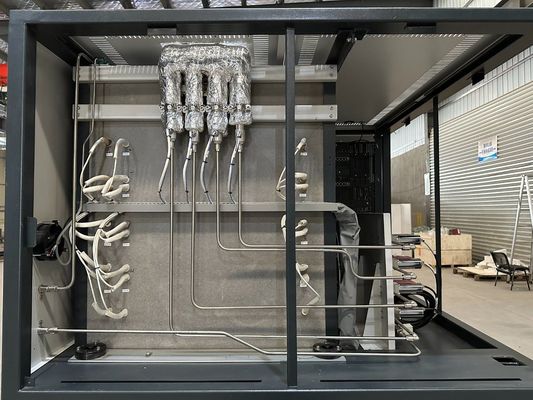

Pre-Heating: 4 Inlets
3 Stages Pre-Filtering of air: 1- dust, 2 - water drops, 3 - oil vapor
Temperature Control Precision ≤ ±1ºC
Temperature Control Mode: Temperature controller imported from Japan
Heating-up Steps: Default 20 Steps
Temperature Record: IPC makes real-time sampling record of chamber temperature
Heat-up Rate ≤6ºC/min
Chamber Temperature Uniformity: ±3ºC in 400mm×400mm×400mm area
Furnace Surface Temperature ≤ RT+35ºC

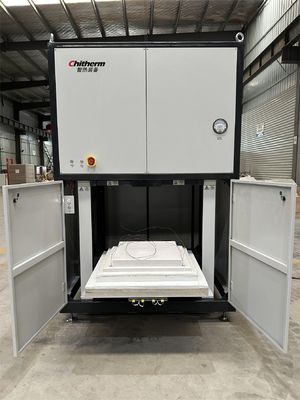

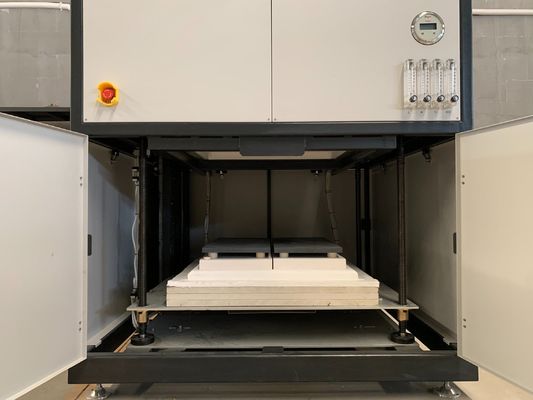

Lift System: Automated three-point control with stable operation
Maximum Lifting Trip: 800mm
Loading Weight ≤ 150Kg (including products and setters)
Total Power: 52kW
Outline Dimensions: 1520×1520×2250mm (D×W×H)
Weight: approximately 1000kg

Shipping List

Item	Description	Quantity
Basic Components	Furnace	1 SET
Inspection Certificate	Certificate of major outsourced components	1 SET
Technical Documents	Instructions, technical documents of major parts	1 SET
Key Components	Resistance Coils Heating Plate	1 SET
Flowmeter	Azbil/Dwyer/TOFCO/YINHUAN	1 SET
Differential Pressure	Dwyer/TOFCO/DUWEI	1 SET
Thermocouple	Watlow/THERMOWAY	1 SET
Lifting System	Customized	1 SET
Temp. Controller	Azbil	1 SET
PLC	SIEMENS	1 SET
Touch Screen	MCGS (based on Linux)	1 SET
Spare Parts	Solid State Relay (XIMADEN)	1 PC
Heating Elements	Resistance Coils Heating Plate	1 PC

Facility Requirements

Atmosphere Conditions: Dry, clean, oil-free compressed air (0.2-0.4MPa, 25-70 m³/h)
Environmental Conditions: 0~40ºC, humidity ≤80%RH, no corrosive gas or strong airflow
Ventilation System: Non-contact access to user pumping system (>100 m³/h capacity)
Ground Requirements: Horizontal, minimal vibration, load-bearing >500 kg/m²
Power: >70KVA, 3-phase 5-line, 220/380V, 50Hz with proper color coding
Installation Site: Minimum 3500×3000×3000mm (D×W×H), >11m² area
