Alumina Fiber Lined Hbf300-13 Box Furnace 1600° C Class Heating Elements

Large Image : Alumina Fiber Lined Hbf300-13 Box Furnace 1600° C Class Heating Elements

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF300 - 13

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	31200
Packaging Details:	Wooden Package
Delivery Time:	60-90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now

Alumina Fiber Lined Hbf300-13 Box Furnace 1600° C Class Heating Elements

Description

Usage:	Steel Molding	Fuel:	Electric
Effective Chamber Dimensions:	560780700mm(WHD)	Atmosphere:	Air
Rated Temperature:	1250ºC	Maximum Temperature:	1300ºC
Transport Package:	Wooden Package	Specification:	157020501830mm (WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Production Capacity:	50 Sets/Year
Highlight:	Alumina Fiber Lined Class Box Furnace , Heating Elements Box Furnace , Hbf300-13 Box Furnace

Overview

Suitable for Various Laboratories: HBF300-13 High-Temperature Box Furnace

The HBF300-13 high-temperature box furnace is designed to meet the diverse needs of laboratory environments. With its advanced heating elements, uniform temperature distribution, and user-friendly operation, it is ideal for a wide range of laboratory processes. Whether for material testing, heat treatment, or other high-temperature applications, this furnace ensures reliable performance and precise temperature control. Its robust construction and safety features make it a versatile and dependable choice for laboratories across various industries.

Specifications

Model: HBF300-13 High-Temperature Box Furnace
External Dimensions: 1540×1800×1380mm (W×H×D)
Chamber Dimensions: 560×780×700mm (W×H×D)
Effective Dimensions: 400×600×550mm (W×H×D)
Rated Temperature: 1250ºC
Maximum Temperature: 1300ºC

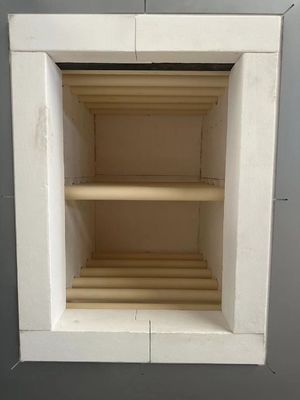

Heating Elements: Silicon carbide rods in ceramic tubes
Number of Heating Zones: 3
Maximum Heating Power: ≤70kW
Applicable Atmosphere: Air
Cooling Method: Natural cooling with the furnace
Power Supply: Greater than 90kVA, three-phase five-wire 220V/380V, 50Hz
Cooling Method: Forced cooling with a blower

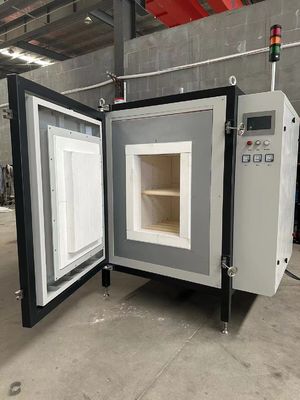

Alumina Fiber Lined Hbf300-13 Box Furnace 1600° C Class Heating Elements 0

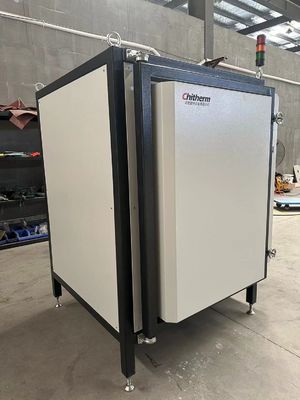

Alumina Fiber Lined Hbf300-13 Box Furnace 1600° C Class Heating Elements 1

Equipment Handover Checklist

Table 1 - Delivery Overview
	Name	Main Content	Quantity
Primary Configuration	Kiln Main Unit	The core equipment of the industrial electric kiln	1 Unit
	Certification of Inspection	Documentation certifying the conformity of components	1 Set
	Technical Documentation	Manuals and technical files accompanying major purchased components	1 Set
Key Components	Ceramic Tube for Silicon Carbide Rod	Protective tube for the heating element	1 Set
	Firing Plate or Burner Plate	Component for supporting and firing materials	1 Set
	Temperature Control Module (Yamatake or Equivalent)	Precision temperature control system	1 Unit
	Thermocouple (Type S)	Temperature sensor with S-type calibration	3 Pieces
	Touchscreen Interface	HMI (Human-Machine Interface) for kiln control	1 Unit
	Programmable Logic Controller (Siemens)	Automation control system	1 Unit
	Power Regulator (Taiwan Techsil)	Device for adjusting power output	1 Set
	Blower Fan	Component for air circulation or forced convection	1 Unit
Spare Parts	Silicon Carbide Rod	Heating element for the kiln	2 Rods

Normal Operating Conditions for Equipment

Environmental Conditions: Temperature 0~40ºC, humidity ≤80% RH, free of corrosive gases, and without strong airflow disturbances.
Ventilation System: Non-contact connection to the user's exhaust system, with an exhaust capacity greater than 10m³/h.
Power Requirements: Capacity greater than 90kVA, three-phase five-wire, voltage 220/380V, frequency 50Hz. Live wires: yellow, green, red; neutral wire: blue; ground wire: yellow-green.
Installation Space: 2800mm×2000mm×3000mm (D×W×H), with an installation area greater than 6m².

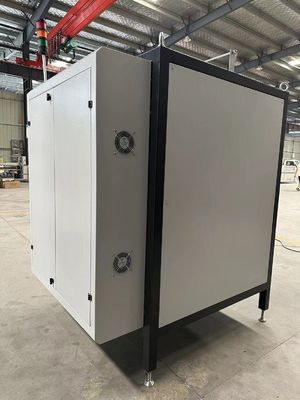

Alumina Fiber Lined Hbf300-13 Box Furnace 1600° C Class Heating Elements 2

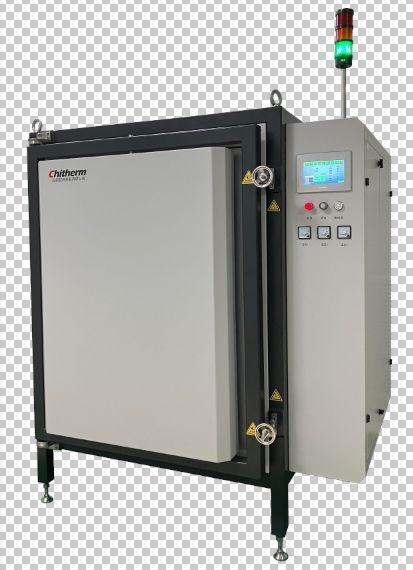

Alumina Fiber Lined Hbf300-13 Box Furnace 1600° C Class Heating Elements 3

1.What products does Chitherm offer?
We provide customers with high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.
2.What pre-sales services does Chitherm provide?
We offer timely consultation services to help customers select the most suitable products, along with highly customizable solutions to meet your specific requirements.
3.What are Chitherm's core strengths?
As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
