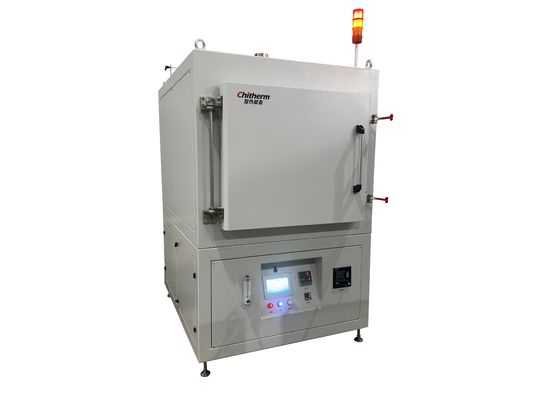

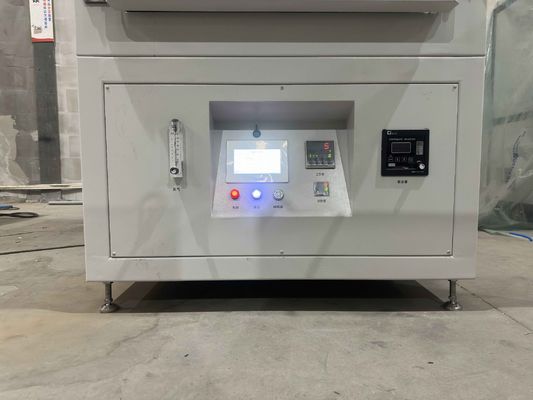

Temperature Control Stability ± 1° C Hrf216-05n Type Box Furnace China Factory

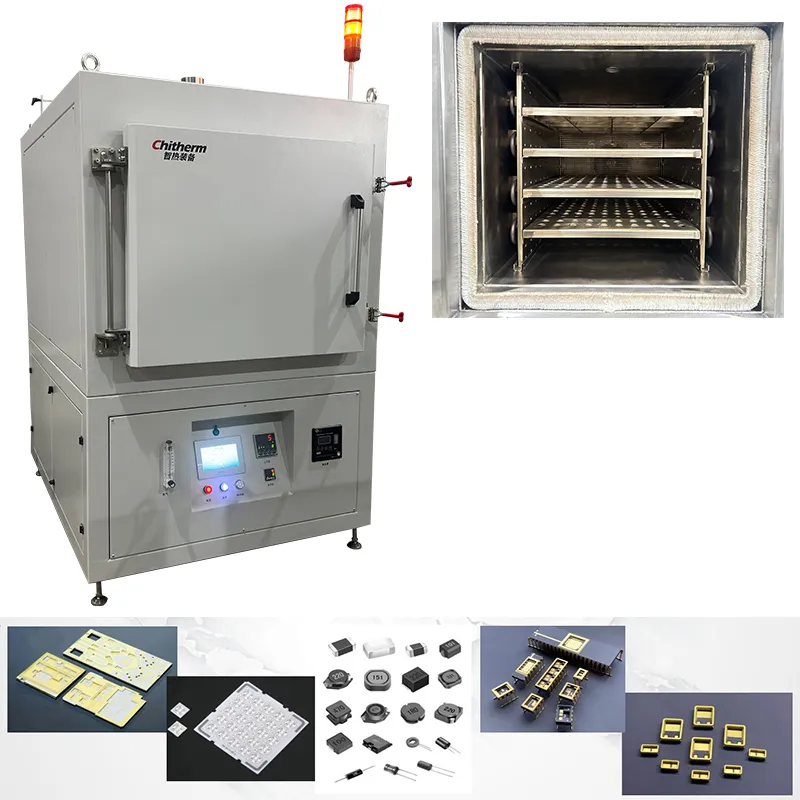

Mainly used for binder burning out(BBO) process of electronic components, ceramic substrates.

2. Mainly Specifics:

1. Rated Temp.: 350ºC
2. Max Temp.: 500ºC
3. Effective Dimensions: 600 × 600 × 600mm(W×H×D)
4. Heating Method: Stainless Steel Heater
5. Process Atmosphere: Nitrogen
6. Temperature Control Stability: ±1ºC, with PID parameter self-tuning function
7. Temperature Uniformity: better than ±5ºC (insulation 1 hour at 400ºC test)
8. Thermocouple: Type K
9. Temperature control points: 1
10. Temperature measurement points: 1 point
11. Process Steps: 4 × 10 steps
12. Exhaust: One exhaust port on top

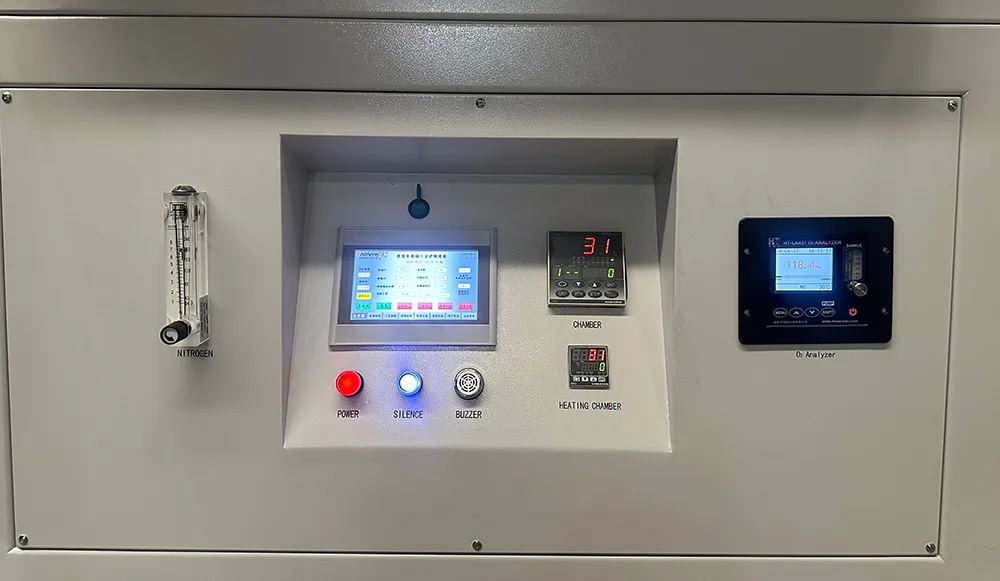

13. Alarm System: over temperature, thermocouple failure and other abnormal conditions will activate sound and light alarm protection
14. Max Heating Power: 18kW
15. Insulation Power: ≤ 12kW
16. Surface Temperature Rise: ≤ 35ºC
17. Weight: about 900kg
18. Furnace Dimensions: about 1350×1750×21950mm (W×H×D);
19. Appearance Color: light gray

4. Facility Requirements
4.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
4.2 Process air conditions: 99.999% purity nitrogen, pressure 0.2 - 0.4Mpa, gas consumption 10m³ /h.
4.3 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 15m³ /h;
4.4 Ground requirements: level, no obvious vibration, bearing capacity >300Kg/m² .
4.5 Power conditions: capacity greater than 24kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
4.6 Installation site: 2000mm×3000mm×3000mm (W×H×D), installation area greater than 6m².


Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Its product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics. These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.

1.What products does Chitherm offer?
We provide customers with high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.
2.What pre-sales services does Chitherm provide?
We offer timely consultation services to help customers select the most suitable products, along with highly customizable solutions to meet your specific requirements.
3.What are Chitherm's core strengths?
As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
