The Heating Element Is The Hbf80-17nh Type High-Temperature Atmosphere Box Furnace with U-Shaped Molybdenum Wire Coil

Large Image : The Heating Element Is The Hbf80-17nh Type High-Temperature Atmosphere Box Furnace with U-Shaped Molybdenum Wire Coil

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF80-17NH

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	95956.13
Packaging Details:	Wooden Package
Delivery Time:	60-90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now Chat Now

The Heating Element Is The Hbf80-17nh Type High-Temperature Atmosphere Box Furnace with U-Shaped Molybdenum Wire Coil

Description

Model NO.:	HBF80-17NH	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Effective Chamber Dimensions:	400400500mm(WHD)
Atmosphere:	Nitrogen/Hydrogen	Thermocouple:	B Type
Rated Temp:	1600ºC	Max Temp:	1700ºC
Transport Package:	Wooden Package	Specification:	157020501830mm (WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Production Capacity:	50 Sets/Year
Highlight:	HBF80-17NH high temperature box furnace , U-shaped molybdenum wire coil furnace , atmosphere box furnace with heating element

1. Applications:

Mainly used for High Temperature Co-fired Ceramic (HTCC) in high temperature nitrogen and hydrogen atmosphere co-firing process, and also can be used for other related products in high temperature atmosphere sintering process.

2. Mainly Specifics:

Rated Temp	1600ºC
Max Temp	1700ºC
Effective Dimensions	400 × 400 × 500mm(W×H×D)

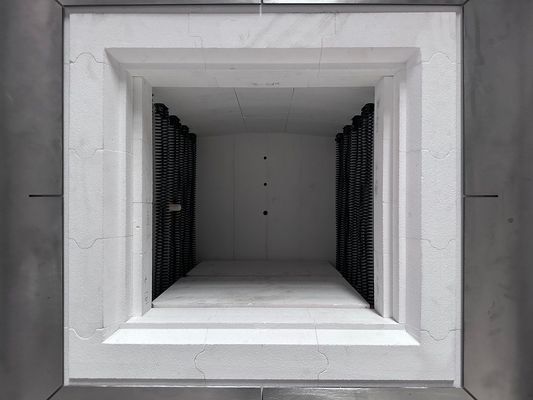

Heating Method	U-shaped molybdenum coil
Process Atmosphere	nitrogen/hydrogen (optional humidification function)
Temperature Control Stability	±1ºC, with PID parameter self-tuning function
Temperature Uniformity	better than ±5ºC (1600ºC insulation 2 small time and space furnace test)
Thermocouple	B Type
Temperature control points	1
Temperature measurement points	1 point
Number of Temp. Profiles	19×19 (the temperature controller can save 19 profiles, each profile can be set 19 steps)
Exhaust	One exhaust port with ignition device
Max Heating Power	25kW
Insulation Power	≤15kW
Heating Rate	RT - 1000ºC ≤ 5ºC/min, 1000 - 1600ºC ≤ 2ºC/min
Surface Temperature Rise	< 35ºC
Furnace Dimensions	about 1570×2050×1830mm (W×H×D)

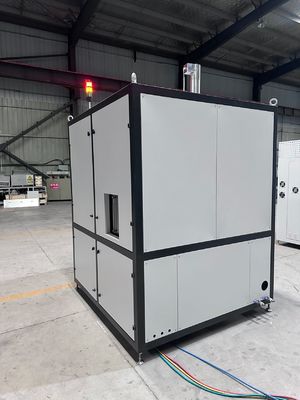

The Heating Element Is The Hbf80-17nh Type High-Temperature Atmosphere Box Furnace with U-Shaped Molybdenum Wire Coil 0

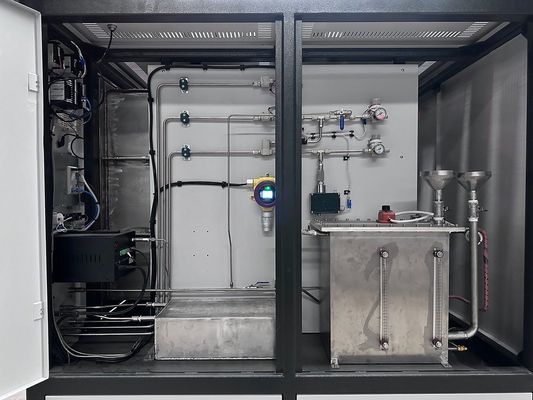

The Heating Element Is The Hbf80-17nh Type High-Temperature Atmosphere Box Furnace with U-Shaped Molybdenum Wire Coil 1

3. Delivery List
	Item	Note	QTY
Basic Compositions	Furnace		1 PC
	Certificates of Inspection	Furnace and major purchased components	1 Set
	Technical Documents	Furnace specifications, technical documents of major purchased components, etc	1 Set
Key Parts	Heating Elements	Molybdenum Coil	1 Set
	Thermocouple	Watlow, THERMOWAY, B Type	1 PC
	Temperature Controller	CHINO	1 Set
	Monitor	Proface 10" touch screen	1 Set
	Vacuum Pump	VALUE, 100m³/h	1 Set
	Oxygen Analyzer	CHANG'AI	1 Set
	Mass Flowmeter	HORIBA	2 Sets
	Flow Indicator	HORIBA	2 Sets
	Dew Point Probe	VAISALA	1 Set
Spares	Heating Elements	Molybdenum Coil	1 PC

4. Optional Items
Item	Note	QTY
Humidifier	humidifying chambers: 2 (nitrogen, hydrogen) Power: 2.5kW Control Mode: PID Control	1 Set
Hydrogen Alarm System	Detection Range: 0 - 5000ppm Resolution: 1ppm	1 Set
Gas Treatment Equipment (Connect to Furnace Exhaust)	Burning Temp.: 750 - 850ºC Max Power: 12kW Burning Method: Electric heating Control Mode: PID Control Max Process Capacity: 50Nm³/h	1 Set
Chiller	Standard cooling capacity: 2451Kcal/h Power Supply: 220V, 50Hz(TBD) Power: 1.22kW Pipe Type: 1/2" Lift: 20m	1 Set

5. Facility Requirements
5.1 Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong
airflow disturbance.
5.2 Process air conditions: nitrogen, purity 99.999%, air source pressure 0.2 - 0.4Mpa, gas
consumption 3 - 6m³ /h; Hydrogen, purity 99.99%, gas source pressure not less than 0.1Mpa, gas consumption is 0.6 - 6m³ /h;
5.3 Power air source conditions: clean, dry, oil-free compressed air, pressure 0.4 - 0.8Mpa;
5.4 Water Inlet condition: 0.1 - 0.3Mpa, clean, no corrosion, supply flow 2 - 5L/min;
5.5 Ventilation system: non-contact access to the user pumping system, pumping capacity is greater
than 10m³ /h;
5.6 Ground requirements: level, no obvious vibration, bearing capacity > 500Kg/m².
5.7 Power conditions: capacity greater than 35kVA, 3 phases 5 lines, voltage 220/380V, frequency
50Hz(according to local situation). Live wire: yellow, green, red, neutral wire: blue, ground wire: yellow-green;
5.8 Installation site: 2500mm×3000mm×2500mm (W×H×D), installation area greater than 7m2.

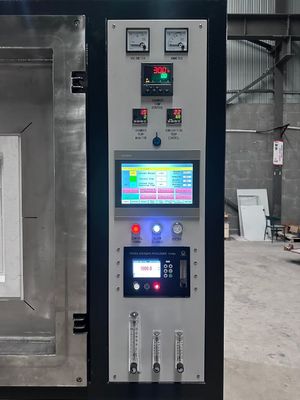

The Heating Element Is The Hbf80-17nh Type High-Temperature Atmosphere Box Furnace with U-Shaped Molybdenum Wire Coil 2

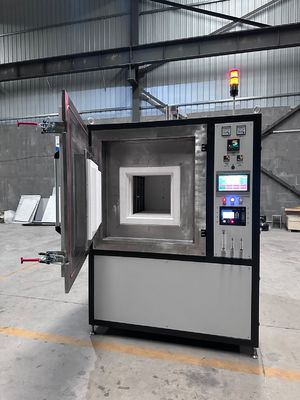

The Heating Element Is The Hbf80-17nh Type High-Temperature Atmosphere Box Furnace with U-Shaped Molybdenum Wire Coil 3

The Heating Element Is The Hbf80-17nh Type High-Temperature Atmosphere Box Furnace with U-Shaped Molybdenum Wire Coil 4

The Heating Element Is The Hbf80-17nh Type High-Temperature Atmosphere Box Furnace with U-Shaped Molybdenum Wire Coil 6

The Heating Element Is The Hbf80-17nh Type High-Temperature Atmosphere Box Furnace with U-Shaped Molybdenum Wire Coil 8
