The Process Atmosphere of The Hbf80-17nh Type High-Temperature Atmosphere Box Furnace Is Nitrogen / Hydrogen

Large Image : The Process Atmosphere of The Hbf80-17nh Type High-Temperature Atmosphere Box Furnace Is Nitrogen / Hydrogen

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF80-17NH

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	95956.13
Packaging Details:	Wooden Package
Delivery Time:	60-90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now Chat Now

The Process Atmosphere of The Hbf80-17nh Type High-Temperature Atmosphere Box Furnace Is Nitrogen / Hydrogen

Description

Model NO.:	HBF80-17NH	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Effective Chamber Dimensions:	400400500mm(WHD)
Atmosphere:	Nitrogen/Hydrogen	Thermocouple:	B Type
Rated Temp:	1600ºC	Max Temp:	1700ºC
Transport Package:	Wooden Package	Specification:	157020501830mm (WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Production Capacity:	50 Sets/Year
Highlight:	HBF80-17NH high-temperature box furnace , nitrogen hydrogen atmosphere furnace , industrial high-temperature box furnace

1. Applications:

Mainly used for High Temperature Co-fired Ceramic (HTCC) in high temperature nitrogen and hydrogen atmosphere co-firing process, and also can be used for other related products in high temperature atmosphere sintering process.

2. Mainly Specifics:

Rated Temp	1600ºC
Max Temp	1700ºC
Effective Dimensions	400 × 400 × 500mm(W×H×D)
Heating Method	U-shaped molybdenum coil
Process Atmosphere	nitrogen/hydrogen (optional humidification function)
Temperature Control Stability	±1ºC, with PID parameter self-tuning function
Temperature Uniformity	better than ±5ºC (1600ºC insulation 2 small time and space furnace test)
Thermocouple	B Type
Temperature control points	1
Temperature measurement points	1 point
Number of Temp. Profiles	19×19 (the temperature controller can save 19 profiles, each profile can be set 19 steps)
Exhaust	One exhaust port with ignition device
Max Heating Power	25kW
Insulation Power	≤15kW
Heating Rate	RT - 1000ºC ≤ 5ºC/min, 1000 - 1600ºC ≤ 2ºC/min
Surface Temperature Rise	< 35ºC
Furnace Dimensions	about 1570×2050×1830mm (W×H×D)

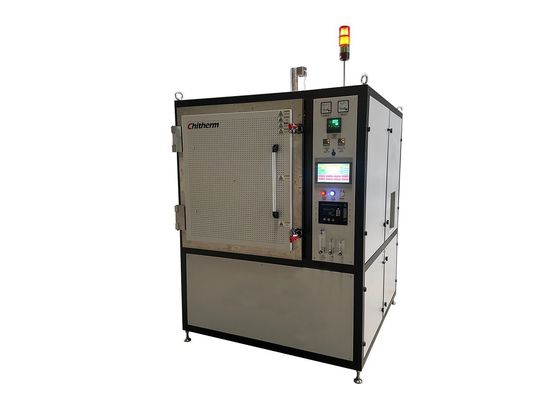

The Process Atmosphere of The Hbf80-17nh Type High-Temperature Atmosphere Box Furnace Is Nitrogen / Hydrogen 0

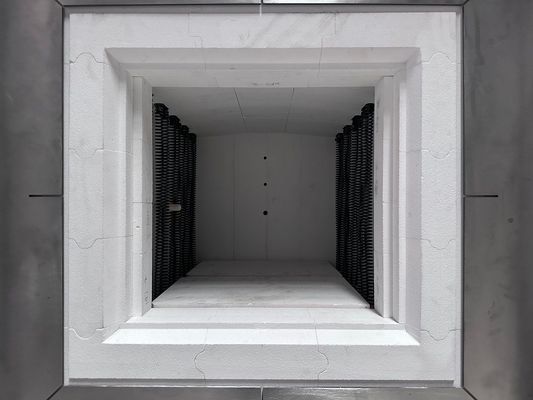

The Process Atmosphere of The Hbf80-17nh Type High-Temperature Atmosphere Box Furnace Is Nitrogen / Hydrogen 1

3. Delivery List
	Item	Note	QTY
Basic Compositions	Furnace		1 PC
	Certificates of Inspection	Furnace and major purchased components	1 Set
	Technical Documents	Furnace specifications, technical documents of major purchased components, etc	1 Set
Key Parts	Heating Elements	Molybdenum Coil	1 Set
	Thermocouple	Watlow, THERMOWAY, B Type	1 PC
	Temperature Controller	CHINO	1 Set
	Monitor	Proface 10" touch screen	1 Set
	Vacuum Pump	VALUE, 100m³/h	1 Set
	Oxygen Analyzer	CHANG'AI	1 Set
	Mass Flowmeter	HORIBA	2 Sets
	Flow Indicator	HORIBA	2 Sets
	Dew Point Probe	VAISALA	1 Set
Spares	Heating Elements	Molybdenum Coil	1 PC

4. Optional Items
Item	Note	QTY
Humidifier	humidifying chambers: 2 (nitrogen, hydrogen) Power: 2.5kW Control Mode: PID Control	1 Set
Hydrogen Alarm System	Detection Range: 0 - 5000ppm Resolution: 1ppm	1 Set
Gas Treatment Equipment (Connect to Furnace Exhaust)	Burning Temp.: 750 - 850ºC Max Power: 12kW Burning Method: Electric heating Control Mode: PID Control Max Process Capacity: 50Nm³/h	1 Set
Chiller	Standard cooling capacity: 2451Kcal/h Power Supply: 220V, 50Hz(TBD) Power: 1.22kW Pipe Type: 1/2" Lift: 20m	1 Set

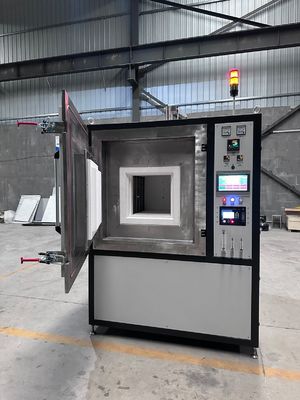

The Process Atmosphere of The Hbf80-17nh Type High-Temperature Atmosphere Box Furnace Is Nitrogen / Hydrogen 2

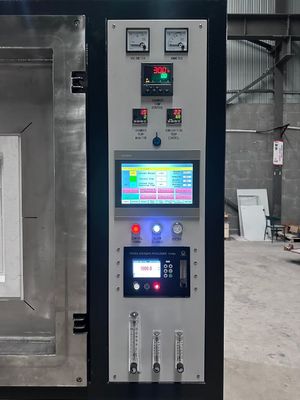

The Process Atmosphere of The Hbf80-17nh Type High-Temperature Atmosphere Box Furnace Is Nitrogen / Hydrogen 3

Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Its product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics. These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.

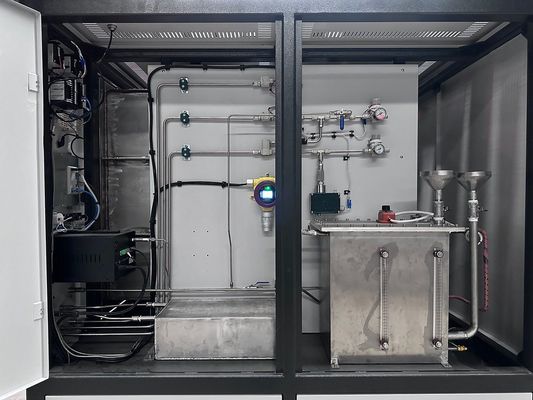

The Process Atmosphere of The Hbf80-17nh Type High-Temperature Atmosphere Box Furnace Is Nitrogen / Hydrogen 4
