Chitherm Heat Treatment Furnace Hbf52-17o High Temperature Box Furnace

Large Image : Chitherm Heat Treatment Furnace Hbf52-17o High Temperature Box Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF52-17o

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10500
Packaging Details:	114196116CM
Delivery Time:	60 work days
Payment Terms:	L/C,T/T

Contact Now Chat Now

Chitherm Heat Treatment Furnace Hbf52-17o High Temperature Box Furnace

Description

Atmosphere:	Air	Effective Chamber Dimensions:	350300500mm(WHD)
Thermocouple:	B Type	Max Temp:	1700ºC
Rated Temp:	1650ºC	Insulation Power:	≤25kw
Temperature Control Points:	1	Model NO.:	HBF52-17O
Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Max Heating Power:	45kw	Transport Package:	Wooden Packaging
Specification:	177021501250mm(WHD)
Highlight:	high temperature box furnace with warranty , Chitherm heat treatment furnace Hbf52-17o , industrial box furnace for heat treatment

Chitherm Heat Treatment Furnace Hbf52-17o High Temperature Box Furnace

Product Specifications

Attribute	Value
Atmosphere	Air
Effective Chamber Dimensions	350300500mm(WHD)
Thermocouple	B Type
Max Temp	1700ºC
Rated Temp	1650ºC
Insulation Power	≤25kw
Temperature Control Points	1
Model NO.	HBF52-17O
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Max Heating Power	45kw
Transport Package	Wooden Packaging
Specification	177021501250mm(WHD)

Product Description

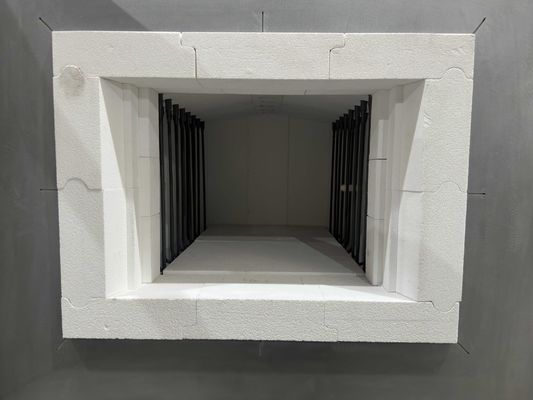

The HBF52-17o high-temperature box furnace utilizes silicon-molybdenum rods as the heating element with vertical installation on either side of the furnace chamber, ensuring uniform temperature distribution. This easy-to-operate device is ideal for various laboratory processes.

Applications

Widely used in high-temperature, high-cleanliness epoxy curing and sintering processes for electronic ceramics, ceramic filters, magnetic materials, and electronic devices.

Technical Specifications

Model: HBF52-17 high-temperature box furnace
Rated temperature: 1650°C
Maximum temperature: 1,700°C
Effective dimensions: 350 × 300 × 500mm (W × H × D)
Furnace lining material: inner layer of alumina product
Heating element: silicon-molybdenum rod
Temperature uniformity: ±2.5°C at 1650°C
Program steps: 4 × 16 segments
Temperature control points: 1 point
Safety features: interlocked door operation, overheating alarm, thermocouple failure alarm
Power requirements: three-phase five-wire, 220/380VAC, 50Hz, >34kVA

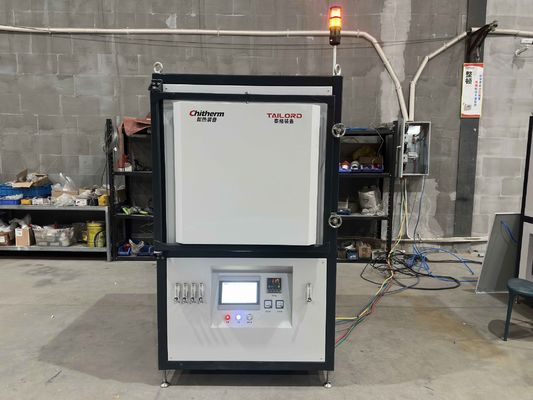

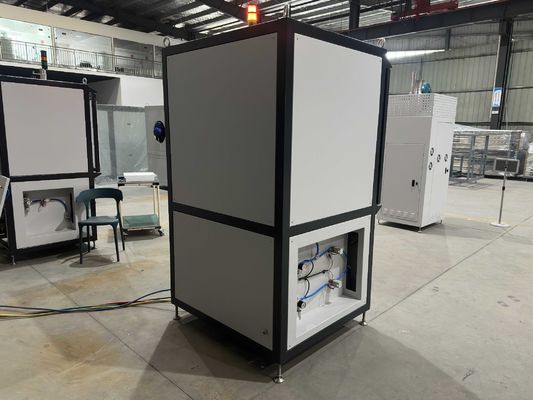

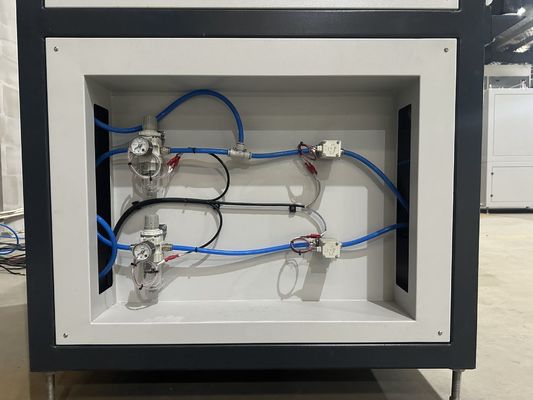

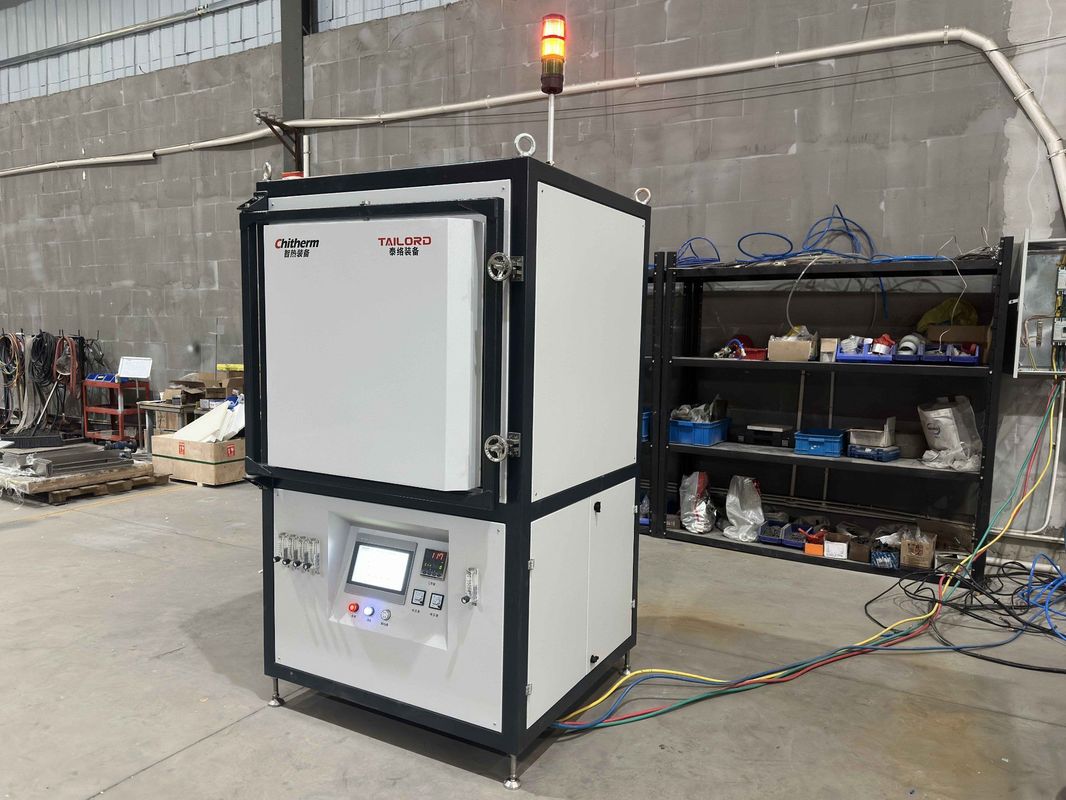

Product Images

Delivery Contents

Item	Description	Quantity
Basic Compositions	Furnace	1 PC
Certificates	Furnace and major components	1 Set
Technical Documents	Specifications and technical documents	1 Set
Key Parts	Silicon-molybdenum rod (6-12 U-shaped)	1 Set
Thermocouple	THERMOWAY, B Type	1 PC
Temperature control	Shimaden device	1 Set
Underglaze board	Corundum-mullite	1 Set
Spares	Silicon-molybdenum rod	1 PC
Underglaze board	Spare piece	1 PC

Installation Requirements

Must be installed indoors (0°C to 40°C environment)
Area must be free from flammable, corrosive gases, and steam
Minimum 5 square meters space required
Working space: 2.5m length × 2m width × 3m height minimum
Solid, flat foundation required (total weight approximately 850 kg)

Certifications

Packaging & Shipping

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.

What pre-sales services does Chitherm provide?

We offer consultation services to help select suitable products and provide highly customizable solutions to meet specific requirements.

What are Chitherm's core strengths?

As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
