Chitherm Hbf52-17o 1700c Box-Type Furnace

Name: Chitherm Hbf52-17o 1700c Box-Type Furnace
Brand: Hefei Chitherm Equipment Co., Ltd
SKU: HBF52-17o
Price: 10500 USD
Availability: InStock

All Products

High Temperature Box Furnace
(109)

Elevator Furnace
(72)

Hot Air Drying Oven
(56)

Atmosphere Box Furnace
(34)

Vacuum Muffle Furnace
(56)

Tube Furnace
(10)

Rotary Furnace
(4)

Waste Gas Incinerator
(4)

Continuous Annealing Furnace
(3)

Electric Muffle Furnace
(11)

Debinding Furnace
(1)

Conveyor Belt Furnace
(8)

Furnace Parts
(2)

Customer Reviews

Dear Valued Partner, Thank you for your support and trust over the past year. It is through your cooperation that we have been able to successfully achieve our goals. In the days to come, we look forward to continuing our close collaboration and creating even greater value together. — With best regards, [Chinese Academy of Sciences]

—— Chinese Academy of Sciences

I'm Online Chat Now

Chitherm Hbf52-17o 1700c Box-Type Furnace

Large Image : Chitherm Hbf52-17o 1700c Box-Type Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF52-17o

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10500
Packaging Details:	114196116CM
Delivery Time:	60 work days
Payment Terms:	L/C,T/T

Contact Now Chat Now

Chitherm Hbf52-17o 1700c Box-Type Furnace

Description

Atmosphere:	Air	Effective Chamber Dimensions:	350300500mm(WHD)
Thermocouple:	B Type	Max Temp:	1700ºC
Rated Temp:	1650ºC	Insulation Power:	≤25kw
Temperature Control Points:	1	Model NO.:	HBF52-17O
Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Max Heating Power:	45kw	Transport Package:	Wooden Packaging
Specification:	177021501250mm(WHD)
Highlight:	1700C box-type furnace , high temperature box furnace , Chitherm Hbf52-17o furnace

Chitherm Hbf52-17o 1700c Box-Type Furnace

Product Specifications

Attribute	Value
Atmosphere	Air
Effective Chamber Dimensions	350300500mm(WHD)
Thermocouple	B Type
Max Temp	1700ºC
Rated Temp	1650ºC
Insulation Power	≤25kw
Temperature Control Points	1
Model NO.	HBF52-17O
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Max Heating Power	45kw
Transport Package	Wooden Packaging
Specification	177021501250mm(WHD)

Product Overview

Hefei Chitherm Equipment Co., Ltd. specializes in the research, development, and manufacturing of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Our product range includes bell furnaces, box furnaces, vacuum furnaces, and more, serving industries such as advanced ceramics, electronic components, powder metallurgy, and new energy applications.

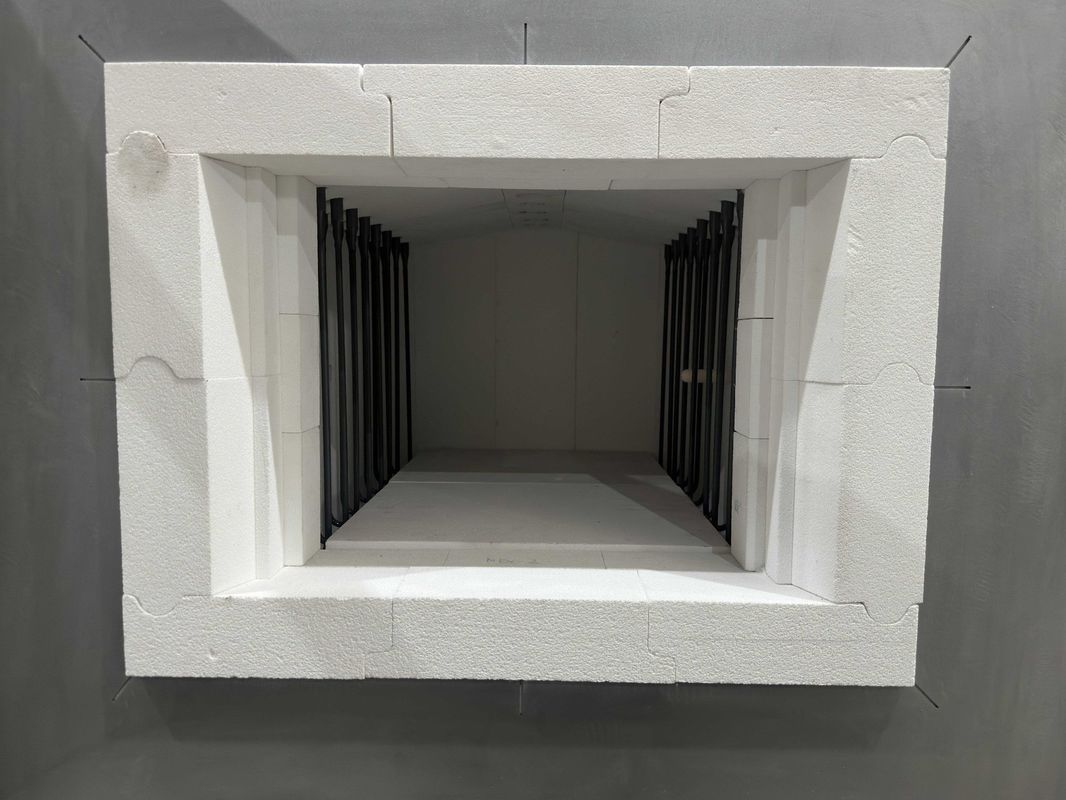

The HBF52-17o high-temperature box furnace features silicon-molybdenum rod heating elements with vertical installation, ensuring uniform temperature distribution. This easy-to-operate furnace is ideal for various laboratory processes.

Key Applications

High-temperature, high-cleanliness epoxy curing
Sintering processes for electronic ceramics
Ceramic filter production
Magnetic materials processing
Electronic device manufacturing

Technical Parameters

Model: HBF52-17 high-temperature box furnace
Rated temperature: 1650°C
Maximum temperature: 1700°C
Effective dimensions: 350 × 300 × 500mm (W × H × D)
Furnace lining: Inner layer of alumina product
Temperature uniformity: ±2.5°C at 1650°C
Program steps: 4 × 16 segments
Safety features: Overheating protection, broken thermocouple alarm, low pressure alarm

Delivery Contents

Item	Description	Quantity
Basic Compositions	Furnace	1 PC
Certificates	Furnace and major components	1 Set
Technical Documents	Specifications and technical files	1 Set
Key Parts	Silicon-molybdenum rods (6-12 U-shaped)	1 Set
Thermocouple	THERMOWAY, B Type	1 PC
Temperature control	Shimaden system	1 Set
Spare Parts	Silicon-molybdenum rod	1 PC

Installation Requirements

Indoor installation with ambient temperature between 0°C to 40°C
Environment must be free from flammable, corrosive gases, and steam
Minimum 5 square meter area with 2.5m × 2m working space
Ceiling height not lower than 3 meters
Solid, flat foundation required (total furnace weight ~850kg)

Certifications & Packaging

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.

What pre-sales services does Chitherm provide?

We offer consultation services to help select suitable products and provide highly customizable solutions to meet specific requirements.

What are Chitherm's core strengths?

As a high-tech enterprise, we possess patented technologies and core resources to deliver superior furnace solutions through integrated R&D, manufacturing, and sales.
