Hbf52-17o High-Temp. Box Furnace Has a Wide Range of Applications

Large Image : Hbf52-17o High-Temp. Box Furnace Has a Wide Range of Applications

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF52-17o

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10500
Packaging Details:	114196116CM
Delivery Time:	60 work days
Payment Terms:	L/C,T/T

Contact Now Chat Now

Hbf52-17o High-Temp. Box Furnace Has a Wide Range of Applications

Description

Atmosphere:	Air	Effective Chamber Dimensions:	350300500mm(WHD)
Thermocouple:	B Type	Max Temp:	1700ºC
Rated Temp:	1650ºC	Insulation Power:	≤25kw
Temperature Control Points:	1	Model NO.:	HBF52-17O
Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Max Heating Power:	45kw	Transport Package:	Wooden Packaging
Specification:	177021501250mm(WHD)
Highlight:	Hbf52-17o high temperature box furnace , high temp box furnace wide applications , box furnace with high temperature range

HBF52-17O High-Temperature Box Furnace with Wide Industrial Applications

Key Specifications

Attribute	Value
Atmosphere	Air
Effective Chamber Dimensions	350×300×500mm (W×H×D)
Max Temperature	1700ºC
Rated Temperature	1650ºC
Heating Element	Silicon-Molybdenum Rods
Power Requirements	Three-phase five-wire, 220/380VAC, 50Hz

Product Overview

The HBF52-17O high-temperature box furnace features vertically installed silicon-molybdenum rod heating elements arranged on both sides of the furnace chamber for optimal temperature uniformity. Designed for laboratory and industrial use, this electric furnace offers precise temperature control and reliable performance.

Primary Applications

High-temperature epoxy curing processes
Sintering of electronic ceramics and ceramic filters
Processing of magnetic materials and electronic components
Various laboratory heat treatment applications

Technical Specifications

Parameter	Value
Furnace Lining Material	Alumina product inner layer
Temperature Uniformity	±2.5°C at 1650°C
Program Steps	4 × 16 segments
Safety Features	Overheat protection, thermocouple failure alarm, door interlock

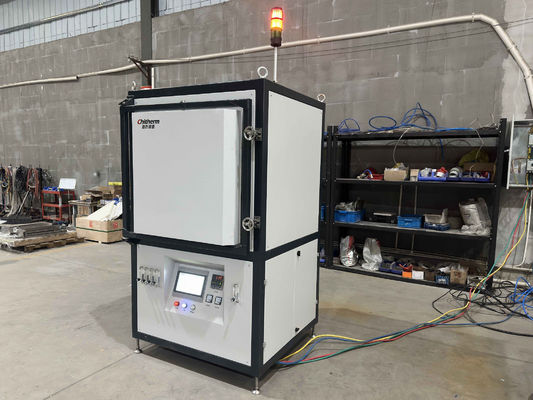

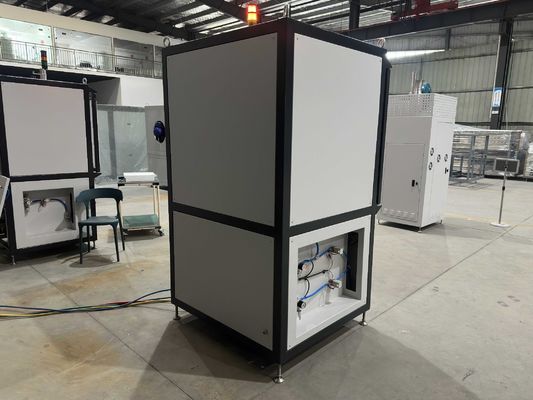

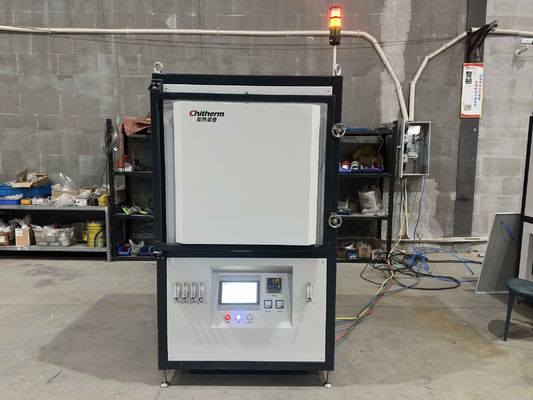

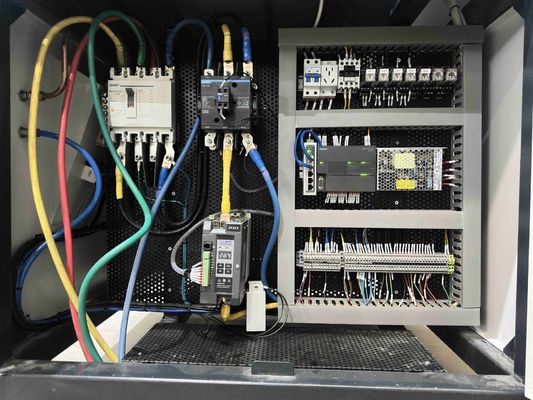

Product Images

Standard Delivery Contents

Component	Specification	Quantity
Main Furnace Unit		1 PC
Heating Elements	U-shaped silicon-molybdenum rods	6-12 PC
Temperature Control	Shimaden controller	1 Set
Thermocouple	B Type	1 PC

Installation Requirements

Indoor installation in temperature-controlled environment (0°C to 40°C)
Minimum 5m² area with 2.5m length × 2m width × 3m height clearance
Solid, level foundation capable of supporting 850kg total weight
Environment free from flammable, corrosive gases or steam

Certifications & Packaging
