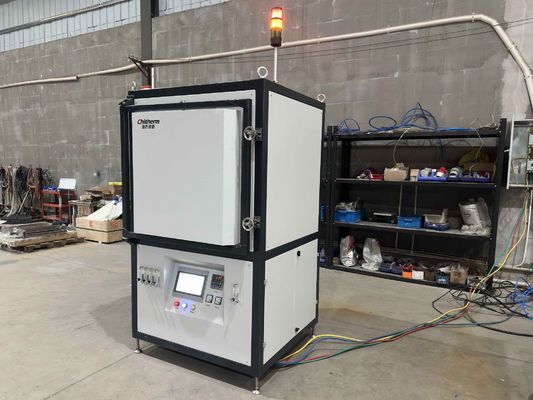

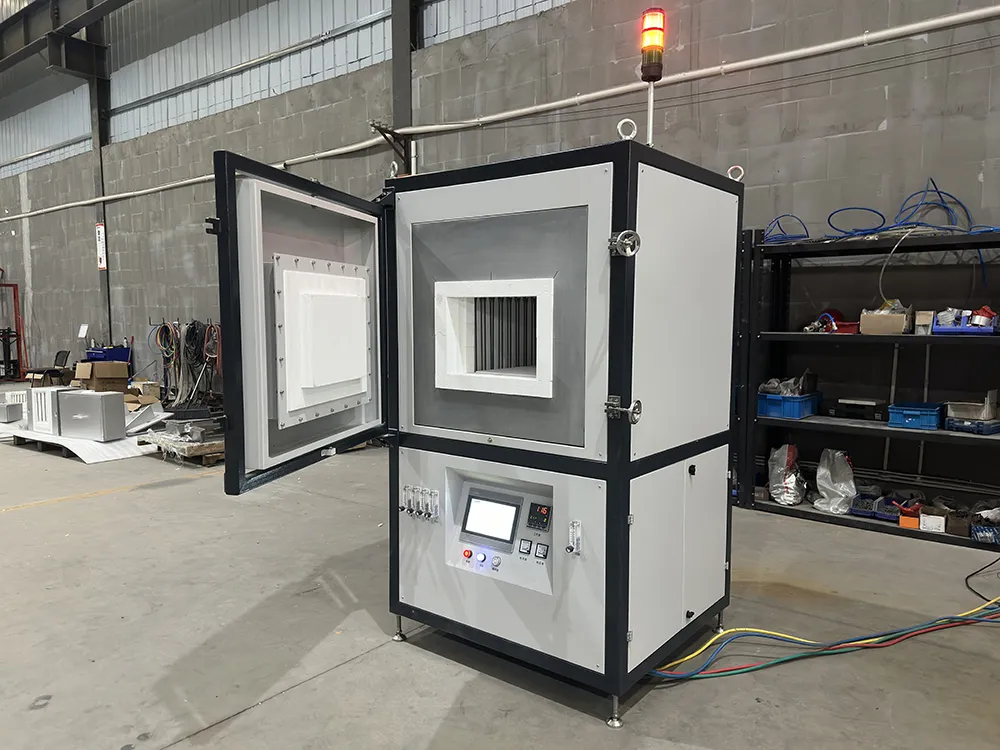

Chitherm 1700 º C Hbf52-17o High Temperature Box Furnace

Name: Chitherm 1700 º C Hbf52-17o High Temperature Box Furnace
Brand: Hefei Chitherm Equipment Co., Ltd
SKU: HBF52-17o
Price: 10500 USD
Availability: InStock

All Products

High Temperature Box Furnace
(109)

Elevator Furnace
(72)

Hot Air Drying Oven
(56)

Atmosphere Box Furnace
(34)

Vacuum Muffle Furnace
(56)

Tube Furnace
(10)

Rotary Furnace
(4)

Waste Gas Incinerator
(4)

Continuous Annealing Furnace
(3)

Electric Muffle Furnace
(11)

Debinding Furnace
(1)

Conveyor Belt Furnace
(8)

Furnace Parts
(2)

Customer Reviews

Dear Valued Partner, Thank you for your support and trust over the past year. It is through your cooperation that we have been able to successfully achieve our goals. In the days to come, we look forward to continuing our close collaboration and creating even greater value together. — With best regards, [Chinese Academy of Sciences]

—— Chinese Academy of Sciences

I'm Online Chat Now

Chitherm 1700 º C Hbf52-17o High Temperature Box Furnace

Large Image : Chitherm 1700 º C Hbf52-17o High Temperature Box Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF52-17o

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	10500
Packaging Details:	114196116CM
Delivery Time:	60 work days
Payment Terms:	L/C,T/T

Contact Now Chat Now

Chitherm 1700 º C Hbf52-17o High Temperature Box Furnace

Description

Atmosphere:	Air	Effective Chamber Dimensions:	350300500mm(WHD)
Thermocouple:	B Type	Max Temp:	1700ºC
Rated Temp:	1650ºC	Insulation Power:	≤25kw
Temperature Control Points:	1	Model NO.:	HBF52-17O
Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Max Heating Power:	45kw	Transport Package:	Wooden Packaging
Specification:	177021501250mm(WHD)
Highlight:	1700°C high temperature box furnace , HBF52-17O box furnace , industrial high temperature furnace

Chitherm 1700 º C Hbf52-17o High Temperature Box Furnace

Product Specifications

Attribute	Value
Atmosphere	Air
Effective Chamber Dimensions	350300500mm(WHD)
Thermocouple	B Type
Max Temp	1700ºC
Rated Temp	1650ºC
Insulation Power	≤25kw
Temperature Control Points	1
Model NO.	HBF52-17O
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Max Heating Power	45kw
Transport Package	Wooden Packaging
Specification	177021501250mm(WHD)

Product Overview

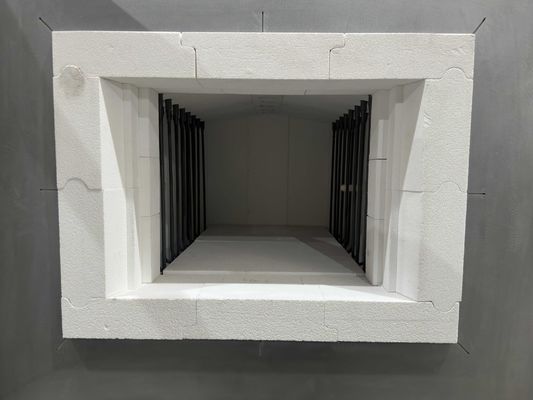

The HBF52-17o high-temperature box furnace features silicon-molybdenum rod heating elements with vertical installation, arranged on both sides of the furnace chamber for uniform temperature distribution. This easy-to-operate device is ideal for various laboratory processes.

Applications

Widely used in high-temperature, high-cleanliness epoxy curing and sintering processes for electronic ceramics, ceramic filters, magnetic materials, and electronic devices.

Technical Specifications

Parameter	Specification
Product model	HBF52-17 high-temperature box furnace
Rated temperature	1650°C
Maximum temperature	1,700°C
Effective dimensions (W × H × D)	350 × 300 × 500
Furnace lining material	Inner layer of alumina product
Heating element	Silicon-molybdenum rod
Temperature uniformity	±2.5°C (at 1650°C for two hours)
Number of program steps	4 × 16 segments
Number of temperature control points	1 point
Alarm protection	Interlocked heating process and door opening, with audible/visual alarms for overheating, broken thermocouple, or low pressure
Maximum heating power	≤25kW
Power requirements	Three-phase five-wire, 220/380VAC, 50Hz, >34kVA

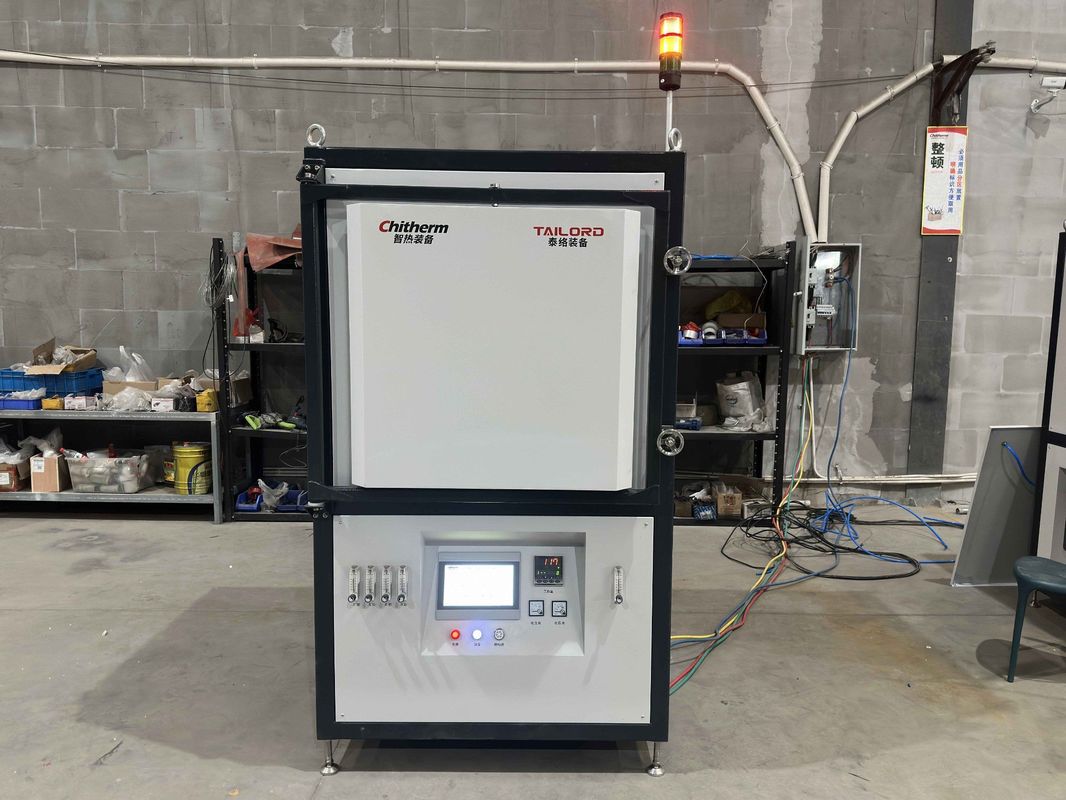

Chitherm 1700ºC HBF52-17O High Temperature Box Furnace front view

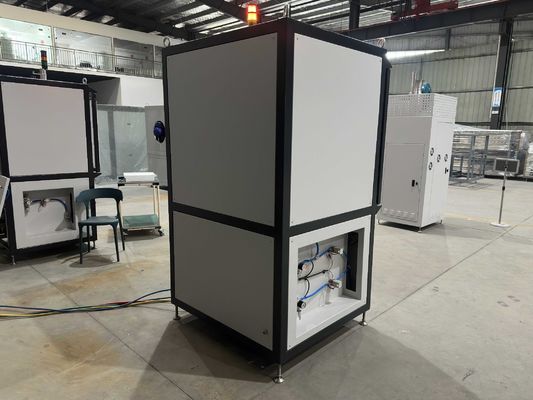

Chitherm 1700ºC HBF52-17O High Temperature Box Furnace side view

Delivery Contents

Item	Note	QTY
Basic Compositions
Furnace		1 PC
Certificates of Inspection	Furnace and major purchased components	1 Set
Technical Documents	Furnace specifications, technical documents of major purchased components	1 Set
Key Parts
Silicon-molybdenum rod	6-12 U-shaped silicon-molybdenum rod	1 Set
Thermocouple	THERMOWAY, B Type	1 PC
Temperature control device	Shimaden	1 Set
Underglaze board	Corundum-mullite	1 Set
Spares
Silicon-molybdenum rod		1 PC
Underglaze board		1 piece

Installation Requirements

1) The device must be installed indoors, in an environment with a temperature range of 0°C to 40°C. The area must be free from flammable gases, corrosive gases, and steam.

2) The equipment requires a minimum area of 5 square meters, with working space at least 2.5 meters long and 2 meters wide, and height not lower than 3 meters. The foundation should be solid and flat (total furnace weight approximately 850 kg).

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.

What pre-sales services does Chitherm provide?

We offer timely consultation services to help customers select the most suitable products, along with highly customizable solutions to meet specific requirements.

What are Chitherm's core strengths?

As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
