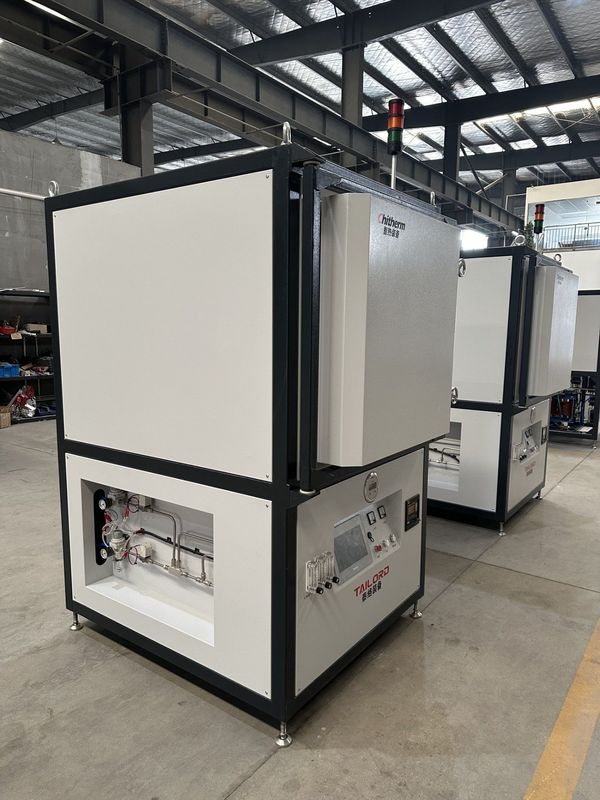

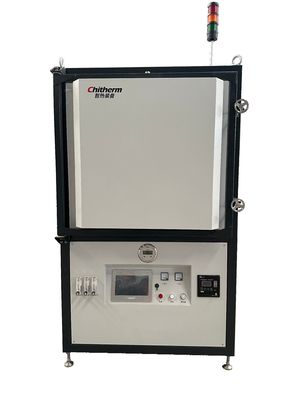

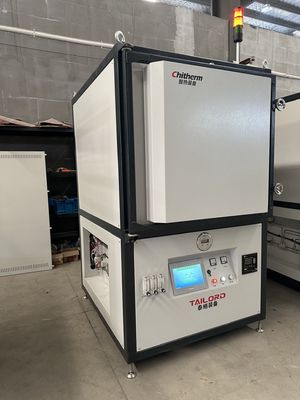

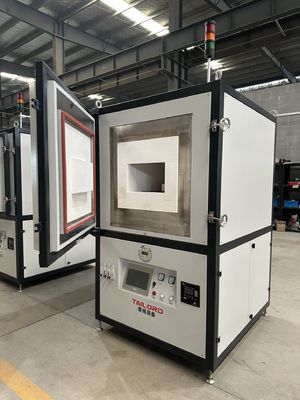

1100º C Mbf40-11n Atmosphere Box Furnace Melting Furnace

Large Image : 1100º C Mbf40-11n Atmosphere Box Furnace Melting Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	MBF40-10N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

1100º C Mbf40-11n Atmosphere Box Furnace Melting Furnace

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Air	Effective Chamber Dimensions:	330200660mm(WHD)
Transport Package:	Wooden Packaging	Specification:	115019701460mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	1100°C MBF40-11N box furnace , high temperature melting furnace , atmosphere box furnace with warranty

1100º C MBF40-11N Atmosphere Box Furnace Melting Furnace

Product Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Air
Effective Chamber Dimensions	330200660mm (WHD)
Transport Package	Wooden Packaging
Specification	115019701460mm (WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Product Description

Key Features

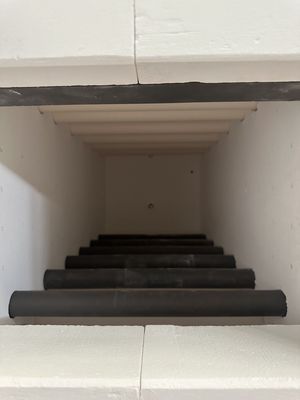

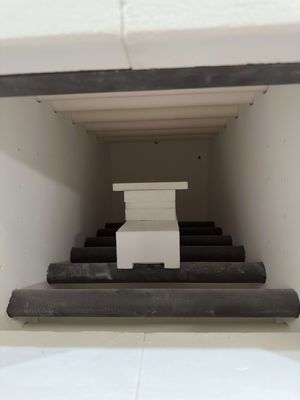

Uses silicon carbide rods inserted in ceramic tubes as heating elements, resistant to acid and alkali corrosion
Heating elements arranged both above and below for uniform temperature distribution
Easy to operate and suitable for various laboratory processes

Performance Parameters

Product Model: MBF40-10N Atmosphere Box Furnace
Rated Temperature: 850-1000°C
Maximum Temperature: 1000°C
Effective Dimensions: 330mm × 200mm × 660mm (W×H×D)
Furnace Chamber Material: Inner layer made of alumina products, outer layer using ceramic fiber inorganic standard board
Heating Elements: Silicon carbide rods inserted in ceramic tubes
Temperature Uniformity: ±5°C (tested at 850°C in empty furnace)
Program Steps: 20 steps
Temperature Control: Two-point control (top and bottom), one measurement point in middle
Alarm Protection: Interlock between heating and door operation, audible/visual alarms for overtemperature, thermocouple break, and low pressure
Surface Temperature Rise: ≤40°C
Maximum Heating Power: ≤25kW
Power Supply: Three-phase, 220/380V, 50Hz, capacity >35kVA

Delivery List

Item	Note	QTY
Basic Compositions	Furnace	1 PC
Certificates of Inspection	Furnace and major purchased components	1 Set
Technical Documents	Furnace specifications, technical documents of major purchased components	1 Set
Key Parts - Heating Elements	Ceramic tube-encased silicon carbide rod	1 Set
Key Parts - Temperature Controller	Azbil	1 Set
Key Parts - Touch Screen		1 Set
Spares - Silicon Carbide Rod		1 PC

Facility Requirements

Environmental conditions: Temperature 0-40ºC, humidity ≤80% RH, no corrosive gas, no strong airflow disturbance
Process air conditions: 99.999% purity nitrogen, pressure 0.2-0.4Mpa, gas consumption 4-12m³/h
Ventilation system: Non-contact access to user pumping system, capacity >15m³/h
Power conditions: Capacity >35kVA, 3 phases 5 lines, voltage 220/380V, frequency 50Hz
Installation site: 2500mm×2000mm×3000mm (W×H×D), area >5m²
