1150º C The Mbf40-11n Type Atmosphere Box Furnace Nitrogen Electric Furnace Industrial Furnace

Large Image : 1150º C The Mbf40-11n Type Atmosphere Box Furnace Nitrogen Electric Furnace Industrial Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	MBF40-10N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

1150º C The Mbf40-11n Type Atmosphere Box Furnace Nitrogen Electric Furnace Industrial Furnace

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Air	Effective Chamber Dimensions:	330200660mm(WHD)
Transport Package:	Wooden Packaging	Specification:	115019701460mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	1150°C nitrogen atmosphere box furnace , MBF40-11N industrial electric furnace , high temperature box furnace with warranty

MBF40-11N Atmosphere Box Furnace - Nitrogen Electric Industrial Furnace (1150°C)

Key Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Air
Effective Chamber Dimensions	330×200×660mm (W×H×D)
Specification	1150×1970×1460mm (W×H×D)
Certification	ISO

Product Overview

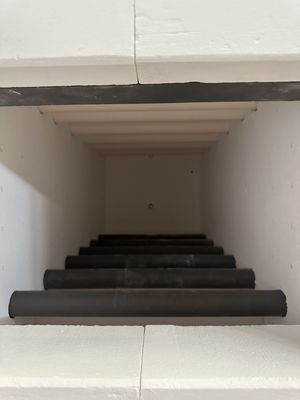

The MBF40-10N atmosphere box furnace features silicon carbide rods inserted in ceramic tubes as heating elements, offering excellent resistance to acid and alkali corrosion. With heating elements arranged both above and below, it ensures uniform temperature distribution throughout the furnace chamber.

Technical Specifications

Parameter	Value
Rated Temperature	850-1000°C
Maximum Temperature	1000°C
Furnace Chamber Material	Inner layer: alumina products, Outer layer: ceramic fiber inorganic standard board
Heating Elements	Silicon carbide rods in ceramic tubes
Program Steps	20 steps
Temperature Control	Two-point control (top and bottom) with middle measurement point
Surface Temperature Rise	≤40°C
Temperature Uniformity	±5°C at 850°C

Standard Delivery Contents

Item	Description	Quantity
Furnace	Main unit	1 PC
Certificates	Furnace and major components	1 Set
Technical Documents	Specifications and component details	1 Set
Heating Elements	Ceramic tube-encased silicon carbide rod	1 Set
Temperature Controller	Azbil brand	1 Set
Touch Screen	Control interface	1 Set
Spare Silicon Carbide Rod	Replacement heating element	1 PC

Installation Requirements

Environment: Temperature 0-40ºC, humidity ≤80% RH, no corrosive gas or strong airflow
Process Air: 99.999% purity nitrogen, pressure 0.2-0.4Mpa, consumption 4-12m³/h
Ventilation: Non-contact access to pumping system (>15m³/h capacity)
Power: >35kVA, 3-phase 5-wire, 220/380V, 50Hz
Space: Minimum 2500×2000×3000mm (W×H×D), >5m² area
