Medium-Temperature Heat Treatment Mbf100-10 Type Chemical Vapor Deposition (CVD) Furnace

Large Image : Medium-Temperature Heat Treatment Mbf100-10 Type Chemical Vapor Deposition (CVD) Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

Medium-Temperature Heat Treatment Mbf100-10 Type Chemical Vapor Deposition (CVD) Furnace

Description

Model NO.:	MBF100-10	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Air/O2
Effective Chamber Dimensions:	450450500mm(WHD)	Transport Package:	Wooden Packaging
Specification:	99016801095mm	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	Medium-Temperature CVD furnace , MBF100-10 heat treatment furnace , Chemical Vapor Deposition box furnace

MBF100-10 Medium-Temperature Clean Chamber Furnace

Product Specifications

Attribute	Value
Model NO.	MBF100-10
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Air/O2
Effective Chamber Dimensions	450450500mm (WHD)
Transport Package	Wooden Packaging
Specification	99016801095mm
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Technical Specifications

Rated Temperature: 900ºC
Maximum Temperature: 1000ºC
Inner Liner Material: Fused Quartz
Effective Size: 450×450×500mm (Width×Height×Depth)
Heating Rate: ≤10ºC/min
Heating Element: FEC Ceramic Fiber Heating Plate, heating from four sides
Temperature Control Stability: ±1ºC, with PID parameter self-tuning
Temperature Uniformity: ±5ºC (tested in an empty furnace at 900ºC)
Thermocouple Type: K Graduation
Temperature Control Points: 1 point
Temperature Control Segments: 9 segments
Exhaust Chimney: Adjustable exhaust port at the tail
Air Intake Design: Controlled by glass rotameter (10-100LPM)
Alarm and Protection: Sound/light alarms for over-temperature, thermocouple breakage
Maximum Heating Power: 16kW
Typical Heat Preservation Power: ≤8kW
Surface Temperature Rise: <35ºC
Equipment Weight: Approximately 450Kg
External Color: Light gray
Reference Dimensions: 990×1680×1095mm (Width×Height×Depth)

Equipment Schematic

Delivery List

Item	Note	QTY
Basic Compositions	Furnace	1 unit
Certificates of Inspection	Furnace and major purchased components	1 Set
Technical Documents	Furnace specifications, technical documents	1 Set

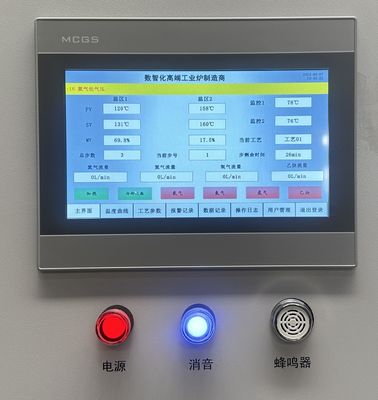

Key Parts	Touch screen	1 PC
Temperature Controller		1 Set
FEC Heater		1 Set
Quartz Liner		1 Set
Spares	SSR	1 PC

Facility Requirements

Environmental conditions: Temperature 0 - 40ºC, humidity ≤ 80% RH, no corrosive gas, no strong airflow disturbance
Gas Source Conditions: Clean, dry, oil-free compressed air or oxygen (0.2-0.4 MPa, 3-6 m³/h)
Ventilation System: Extraction capacity > 10 m³/h
Ground requirements: Level, no vibration, bearing capacity > 500Kg/m²
Power conditions: >22kVA, 3 phases 5 lines, 220/380V, 50Hz
Installation site: 2000mm×2000mm×3000mm (W×H×D), area >4m²

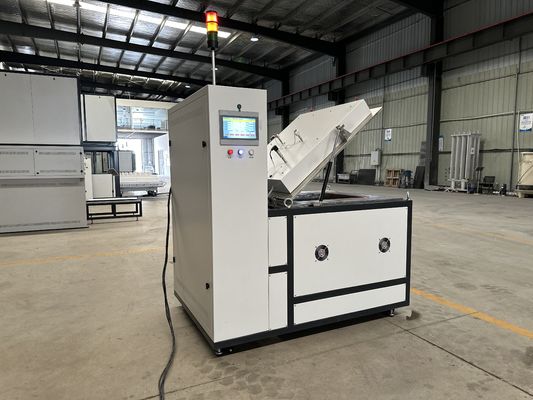

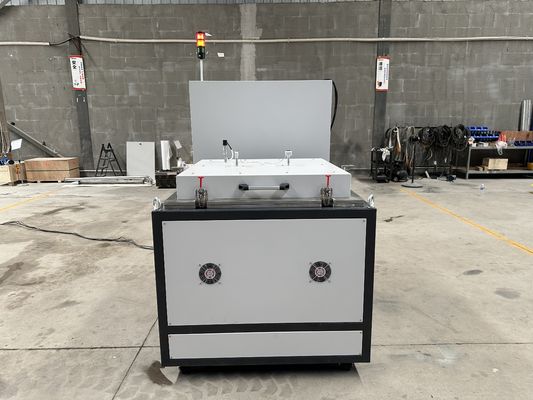

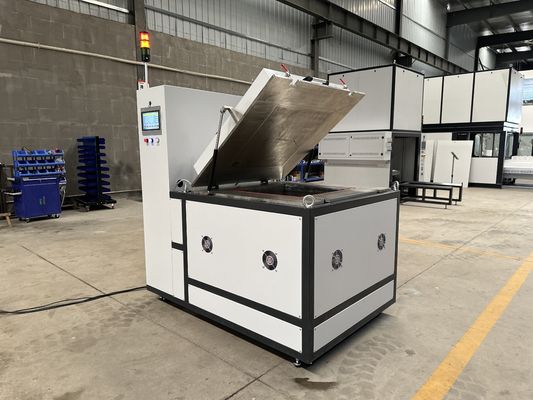

Product Images
