Mbf22-11n 1100° C Atmosphere-Controlled Box Furnace – Precision Heating Solutions

Large Image : Mbf22-11n 1100° C Atmosphere-Controlled Box Furnace – Precision Heating Solutions

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	MBF22-11N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

Mbf22-11n 1100° C Atmosphere-Controlled Box Furnace – Precision Heating Solutions

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Steel Molding	Fuel:	Electric
Atmosphere:	Air	Effective Chamber Dimensions:	2000×2000×3000 (D×w×h)
Rated Temperature:	1000ºC	Maximum Temperature:	1100°c
Transport Package:	Wooden Packaging	Specification:	1520× 1520× 3000mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	1100°C atmosphere-controlled box furnace , high temperature box furnace with precision heating , MBF22-11N box furnace for controlled atmospheres

MBF22-11N 1100°C Atmosphere-Controlled Box Furnace – Precision Heating Solutions

Product Specifications

Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Steel Molding
Fuel	Electric
Atmosphere	Air
Effective Chamber Dimensions	2000×2000×3000 (D×W×H)
Rated Temperature	1000°C
Maximum Temperature	1100°C
Transport Package	Wooden Packaging
Specification	1520×1520×3000mm (W×H×D)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Product Description

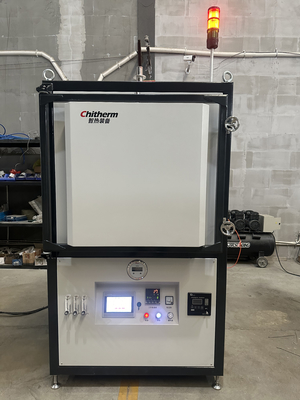

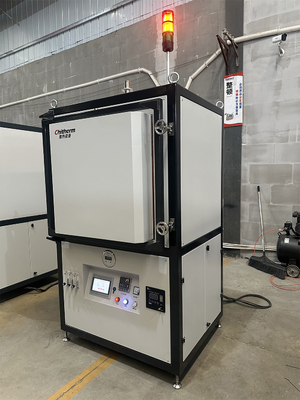

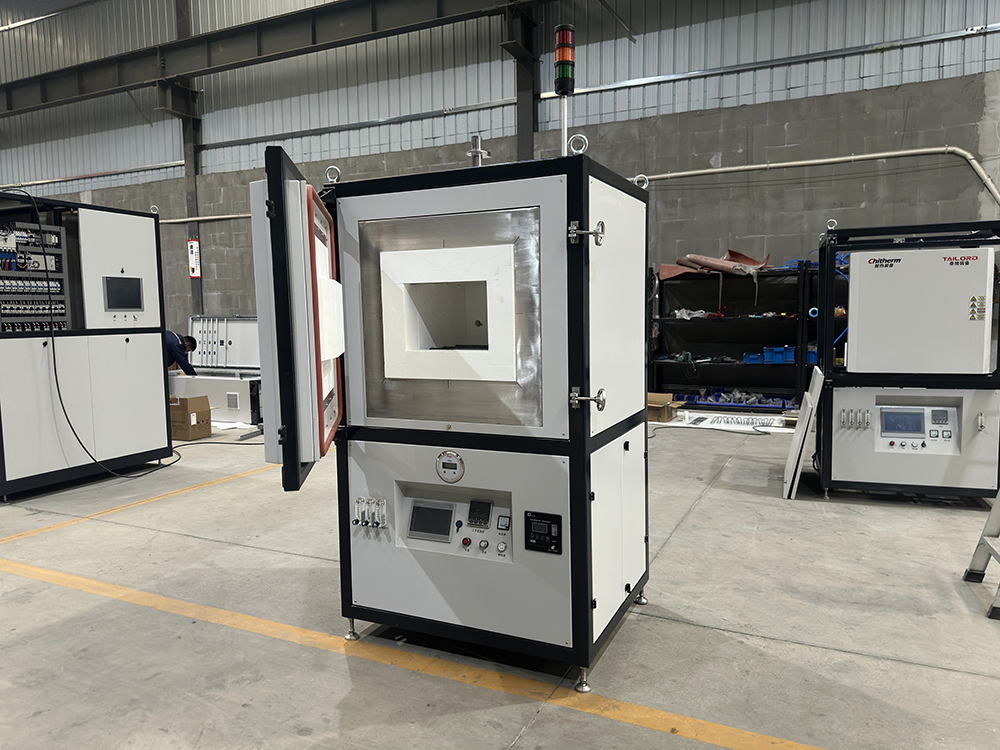

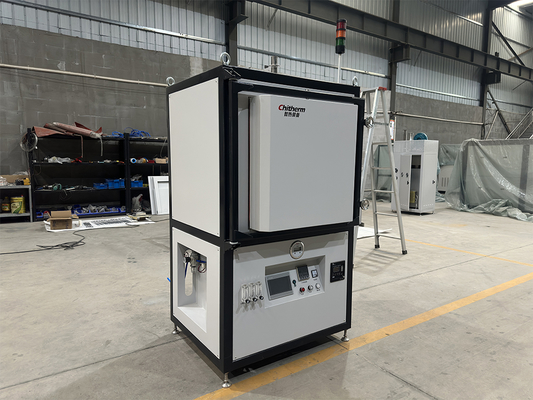

MBF22-11N Medium-temperature Atmosphere Box Furnace

Electric Chitherm MBF22-11N Medium-Temperature Atmosphere Box Furnace with Nitrogen/Air capability, designed for precision industrial heating applications up to 1100°C.

Technical Specifications

Rated Temperature: 1000°C
Maximum Temperature: 1100°C
Effective Size: 330mm×200mm×330mm (W×H×D)
Sagger Specification: 330mm×100mm×330mm (W×H×D)

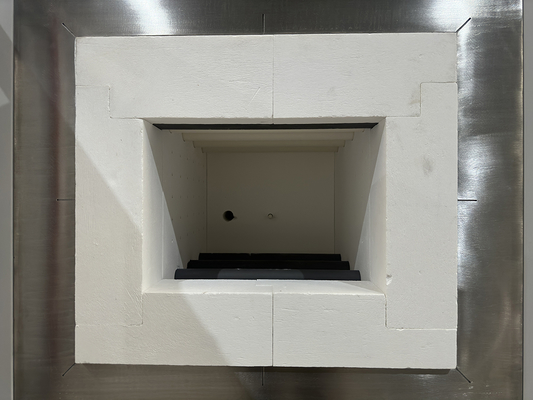

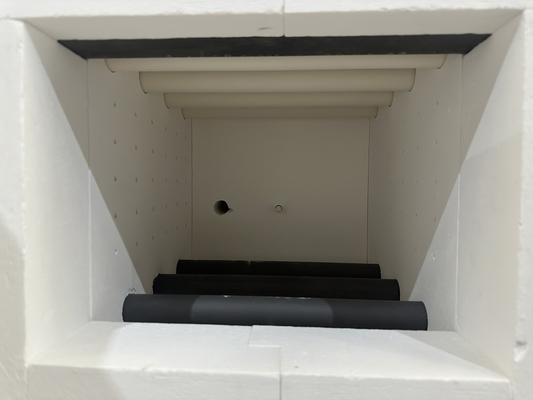

Loading Method: SiC roller rods in double-layer, longitudinal double-row arrangement
Heating Element: Silicon carbide rod inserted in ceramic tube
Temperature Control: ±1°C accuracy with PID self-tuning
Furnace Temperature Uniformity: ±5°C
Sintering Atmosphere: Nitrogen/Air with oxygen content better than 10ppm
Maximum Heating Power: 12kW
Heating Rate: ≤5°C/min

Delivery Contents

Item	Note	Quantity
Basic Components	Furnace	1 PC
Inspection Certificate	Certificate of major outsourced components	1 SET
Technical Documents	Instruction Manual, Random Technical Documents	1 SET
Key Components	Silicon Carbide Rod in Ceramic Tube	1 SET
Temperature Control Instrument	Shimaden (Japan)	1 PC
Oxygen Analyzer		1 PC
Spare Parts	Silicon Carbide Rod	2 PCS

Operating Conditions

Environment: 0-40°C, ≤80%RH, no corrosive gases
Ventilation: Exhaust capacity >10m³/h
Gas Source: High-purity nitrogen (99.999%) or clean compressed air
Power: >16kVA, 3-phase 5-wire, 220/380V, 50Hz
Installation Space: 2000×2000×3000mm (D×W×H)
