Mbf22-11n Medium-Temp Atmosphere Furnace (Up to 1100° C) – Ideal for Heat Treatment

Large Image : Mbf22-11n Medium-Temp Atmosphere Furnace (Up to 1100° C) – Ideal for Heat Treatment

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	MBF22-11N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

Mbf22-11n Medium-Temp Atmosphere Furnace (Up to 1100° C) – Ideal for Heat Treatment

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Steel Molding	Fuel:	Electric
Atmosphere:	Air	Effective Chamber Dimensions:	2000×2000×3000 (D×w×h)
Rated Temperature:	1000ºC	Maximum Temperature:	1100°c
Transport Package:	Wooden Packaging	Specification:	1520× 1520× 3000mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	medium-temp atmosphere furnace , high temperature box furnace with warranty , heat treatment furnace up to 1100°C

MBF22-11N Medium-Temp Atmosphere Furnace (Up to 1100° C) – Ideal for Heat Treatment

Product Specifications

Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Steel Molding
Fuel	Electric
Atmosphere	Air
Effective Chamber Dimensions	2000×2000×3000 (D×W×H)
Rated Temperature	1000°C
Maximum Temperature	1100°C
Transport Package	Wooden Packaging
Specification	1520×1520×3000mm (W×H×D)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Technical Specifications

Equipment Name and Model

MBF22-11N Medium-temperature Atmosphere Box Furnace

Key Features

Rated Temperature: 1000°C
Maximum Temperature: 1100°C
Effective Size: 330mm×200mm×330mm (W×H×D)
Sagger Specification: 330mm×100mm×330mm (W×H×D), provided by the customer

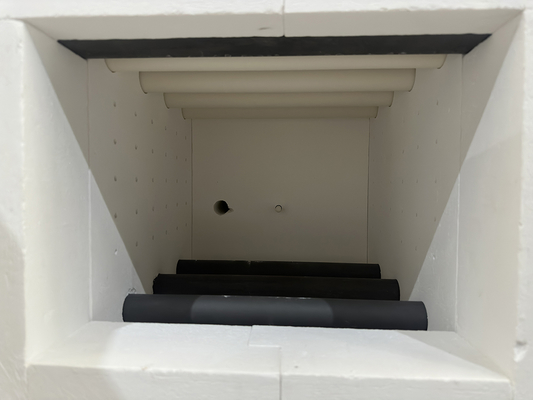

Loading Method: Sagger supported by SiC roller rods in double-layer, longitudinal double-row arrangement
Heating Element: Silicon carbide rod inserted inside ceramic tube

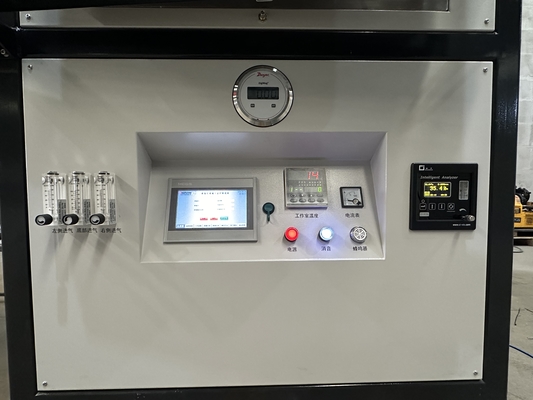

Temperature Control: Imported module with ±1°C accuracy and PID self-tuning
Furnace Temperature Uniformity: ±5°C at 1000°C
Sintering Atmosphere: Nitrogen/Air with oxygen content better than 10ppm
Real-time monitoring of oxygen content and furnace pressure
Maximum Heating Power: 12kW
Heating Rate: ≤5°C/min
Surface Temperature Rise: ≤40°C
Comprehensive alarm and protection systems

Delivery Contents

Item	Note	Quantity
Basic Components	Furnace	1 PC
Inspection Certificate	Certificate of major outsourced components	1 SET
Technical Documents	Instruction Manual, Random Technical Documents	1 SET
Key Components	Silicon Carbide Rod inserted in ceramic tube	1 SET
Temperature Control Instrument	Shimaden (Japan)	1 PC
Oxygen Analyzer		1 PC
Spare Parts	Silicon Carbide Rod	2 PCS

Operating Conditions

Environment: 0-40°C, ≤80%RH, no corrosive gases or strong air-flow disturbances
Ventilation: Non-contact exhaust connection (>10m³/h capacity)
Gas Source: High-purity nitrogen (99.999%)/clean compressed air (0.2-0.4MPa, 2-5m³/h)
Power: >16kVA, 3-phase 5-wire (220/380V, 50Hz)
Installation Space: 2000×2000×3000mm (D×W×H), >4m² area

About Chitherm

Hefei Chitherm Equipment Co., Ltd. specializes in the R&D, design, manufacturing, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Our product range includes bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, and more, serving industries such as advanced ceramics, electronic components, powder metallurgy, new energy, and photovoltaics.

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.

What pre-sales services does Chitherm provide?

We offer consultation services to help select suitable products and provide highly customizable solutions to meet specific requirements.

What are Chitherm's core strengths?

As a high-tech enterprise with patented technologies, we integrate R&D, manufacturing, and sales to deliver superior furnace solutions.
