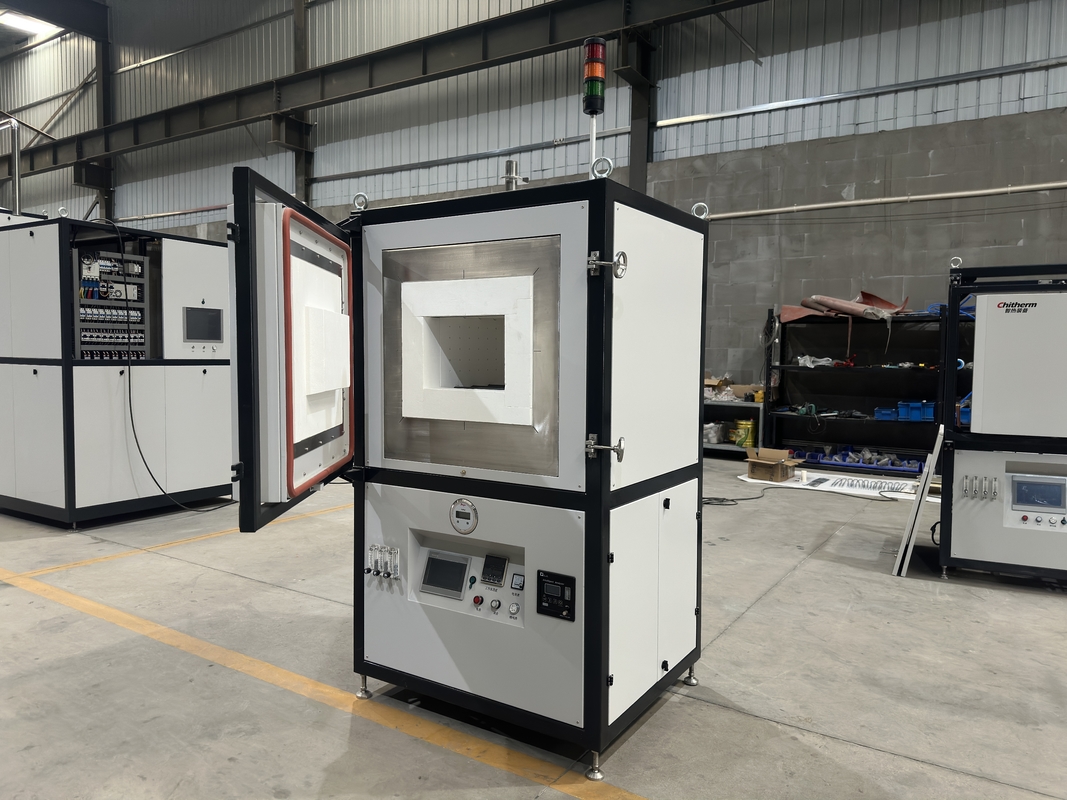

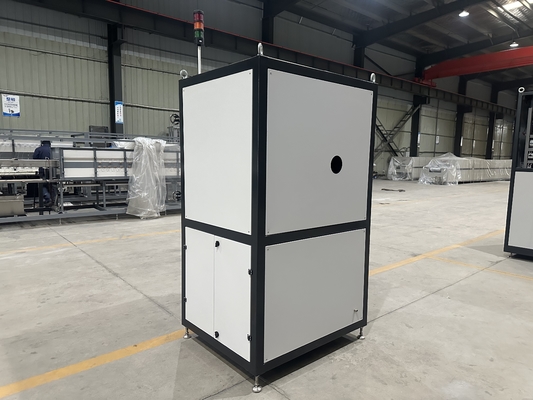

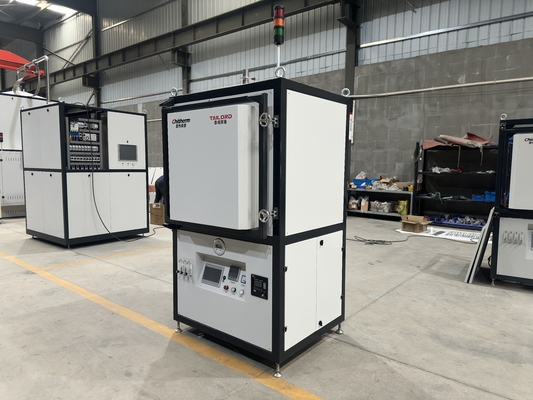

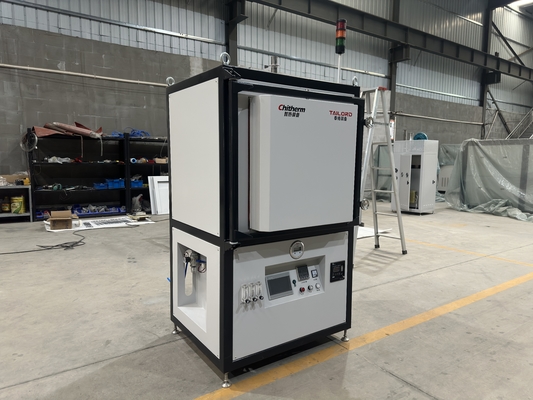

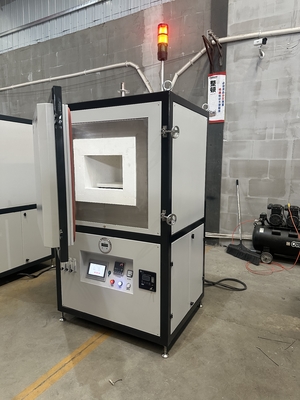

Mbf22-11n Medium-Temperature Atmosphere Box Furnace

Large Image : Mbf22-11n Medium-Temperature Atmosphere Box Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	MBF22-11N

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

Mbf22-11n Medium-Temperature Atmosphere Box Furnace

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Steel Molding	Fuel:	Electric
Atmosphere:	Air	Effective Chamber Dimensions:	2000×2000×3000 (D×w×h)
Rated Temperature:	1000ºC	Maximum Temperature:	1100°c
Transport Package:	Wooden Packaging	Specification:	1520× 1520× 3000mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	medium-temperature box furnace , atmosphere box furnace mbf22-11n , high temperature box furnace with warranty

MBF22-11N Medium-Temperature Atmosphere Box Furnace

Product Specifications

Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Steel Molding
Fuel	Electric
Atmosphere	Air
Effective Chamber Dimensions	2000×2000×3000 (D×W×H)
Rated Temperature	1000°C
Maximum Temperature	1100°C
Transport Package	Wooden Packaging
Specification	1520×1520×3000mm (W×H×D)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Technical Specifications

Equipment Name and Model: MBF22-11N Medium-temperature Atmosphere Box Furnace

Basic Configuration

Rated Temperature	1000°C
Maximum Temperature	1100°C
Effective Size	330mm×200mm×330mm (W×H×D)
Sagger Specification	330mm×100mm×330mm (W×H×D), provided by the customer
Loading Method	The sagger is supported by SiC roller rods and arranged in a double-layer and longitudinal double-row manner
Heating Element	Silicon carbide rod is inserted inside the ceramic tube
Thermocouple Type	N Graduation
Number of Temperature Control Points	1 point
Temperature Control Method	Imported temperature control module, with a temperature control accuracy of ±1°C and a PID parameter self-tuning function
Sintering Atmosphere	Nitrogen/Air
Oxygen Content	Better than 10ppm + the oxygen content of the gas source
Oxygen Detection	One micro oxygen analyzer is configured to monitor the oxygen content in the furnace chamber in real time
Pressure Detection	A digital differential pressure gauge displays the pressure in the furnace in real time
Number of Program Steps	4×16 steps
Heating Rate	≤5°C/min
Reference Dimensions of the Appearance	1300mm×1900mm×1160mm (W×H×D, excluding the chimney), and the specific dimensions shall be subject to the actual product

Delivery List

Item	Note	Qty.
Basic Components	Furnace	1 PC
Inspection Certificate	Certificate of major outsourced components	1 SET
Technical Documents	Instruction Manual, Random Technical Documents of Each Main Outsourced Component, etc.	1 SET
Key Components	Silicon Carbide Rod Inserted in the Ceramic Tube	1 SET
Temperature Control Instrument	Shimaden (Japan)	1 PC
Oxygen Analyzer		1 PC
Spare Parts	Silicon Carbide Rod	2 PCS

Company Profile

Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces.

Our product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics.

These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.
