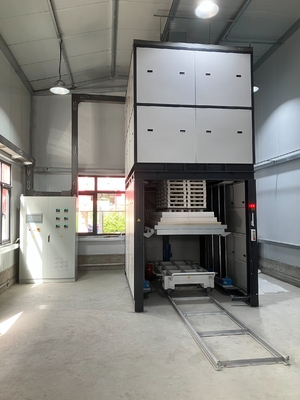

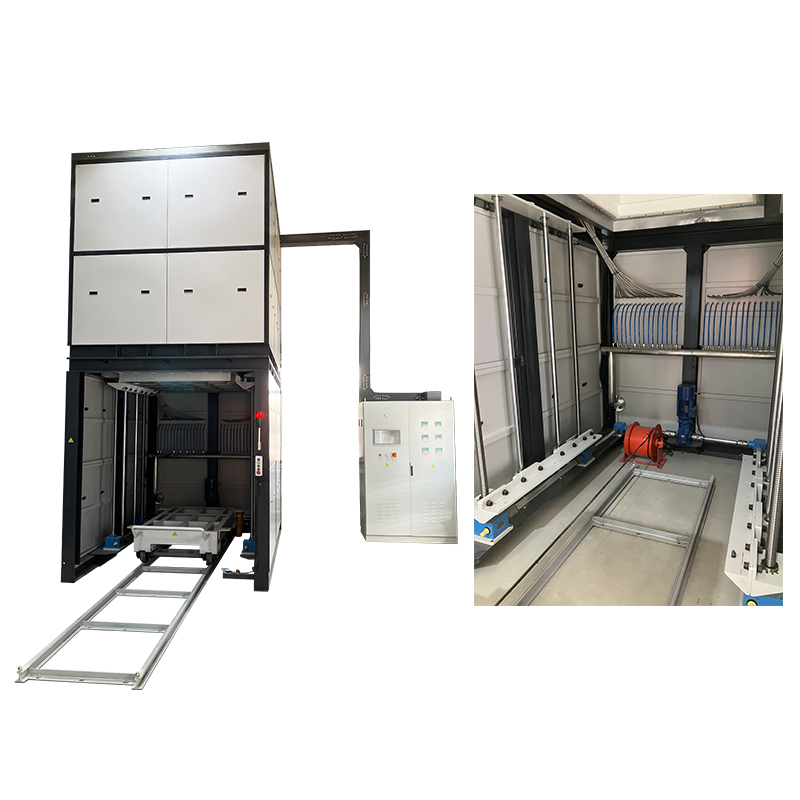

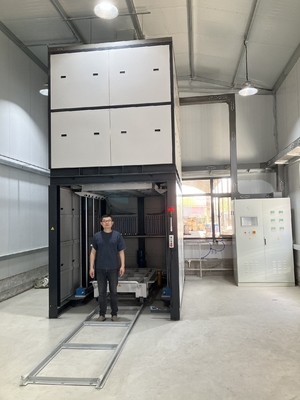

Bf1500-15o High-Temperature Bell Furnace Maximum Temperature: 1500 º C

Large Image : Bf1500-15o High-Temperature Bell Furnace Maximum Temperature: 1500 º C

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	BF1500-15O

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Bf1500-15o High-Temperature Bell Furnace Maximum Temperature: 1500 º C

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Air	Effective Chamber Dimensions:	16001250800mm(DWH)
Warranty:	1 Year	Transport Package:	Wooden Packaging
Specification:	328046002240mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Production Capacity:	50 Sets/Year

BF1500-15O High-Temperature Bell Furnace Maximum Temperature: 1500ºC

Product Attributes

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Air
Effective Chamber Dimensions	16001250800mm(DWH)
Warranty	1 Year
Transport Package	Wooden Packaging
Specification	328046002240mm(WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Production Capacity	50 Sets/Year

Product Description

1. Application

This equipment is mainly designed for electronic ceramic materials, magnetic materials, ceramic filters, etc. that require high uniformity of temperature field or multi-species small batch production occasions.

2. Technical Specification

Rated Temp.	1400ºC
Max Temp.	1500ºC
Effective Dimensions	1600mm×1250mm×800mm(D×W×H)

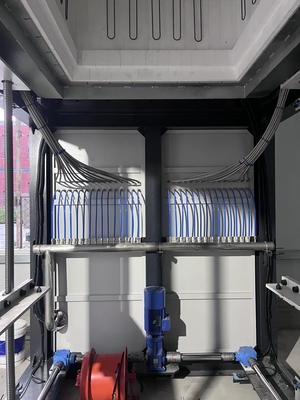

Heating Method	U-shaped silicon molybdenum heater
Thermcouple	Type S
Temperature Control	6 Points
Temp. Set Accuracy	±1ºC(flat temp. insulation)
Temp. Control Mode	control module imported from Japan with PID
Heat-up Rate	≤2.5ºC/min
Temp. Uniformity	±5ºC (empty furnace insulation test 2hours under 1400ºC)
Program Tracking Accuracy	±2ºC (>600ºC)
Maximum Lifting Trip	800mm

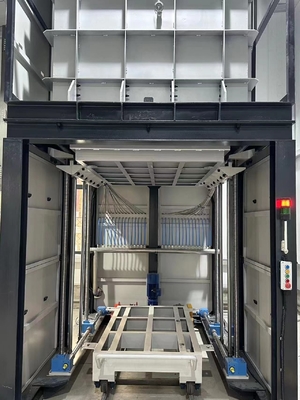

Lift System	Three-point control, can be stopped at any time, with stable and reliable operation
Atmosphere Control	Four channels of air inlet, each channel controlled by glass rotor flowmeter (12-120L/min)
Exhaust System	2 exhaust chimneys with auto switch function
Alarm System	Over-temperature, broken couple, overload, over-range, deviation sound and light alarm protection
External Dimensions	3280×4600×2240mm(D×W×H) (without control cabinet)

3. Delivery List

Item	Note	Qty.
Basic Components	Furnace	1 SET
Inspection Certificates	Certificates of major outsourced components	1 SET
Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 SET
Control Cabinet	1000×2000×600mm(W×H×D)	1 SET
Key Components	Heating Plate (U-shaped silicon molybdenum heater)	1 SET
Flow Meter	TOFCO	1 SET
Thermocouple	THERMOWAY	1 SET
Lifting System		1 SET
Temperature Control Module	Azbil	1 SET
PLC	SIEMENS	1 SET
Touch Screen	MCGS	1 SET
Spare Parts	Heating Element (U-shaped silicon molybdenum heater)	1 PC

4. Equipment Normal Operating Conditions

Environmental Conditions: temperature: 0~40ºC, humidity≤80%RH, no corrosive gas, no strong airflow disturbance
Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.4-0.8MPa, gas consumption of 30-90 m³/h
Ventilation System: non-contact access to the user pumping system, pumping capacity >100 m³/h
Ground Requirements: horizontal, no obvious vibration, load-bearing>600 Kg/m²
Power Condition(TBD): capacity >240kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz

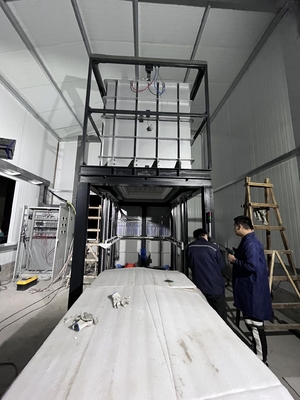

Installation Site: 4000mm×4000mm×5000mm(D×W×H), with an installation area greater than 20m²

Company Profile

Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Its product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics. These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.

FAQ

1. What products does Chitherm offer?

We provide customers with high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.

2. What pre-sales services does Chitherm provide?

We offer timely consultation services to help customers select the most suitable products, along with highly customizable solutions to meet your specific requirements.

3. What are Chitherm's core strengths?

As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
