Bf580-17 High-Temperature Bell Jar Furnace Muffle furnace

Large Image : Bf580-17 High-Temperature Bell Jar Furnace Muffle furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Bf580-17

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	100000
Delivery Time:	90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now Chat Now

Bf580-17 High-Temperature Bell Jar Furnace Muffle furnace

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Air And O2	Effective Chamber Dimensions:	1200600800mm(DWH)
Warranty:	1 Year	Temperature Range:	1700ºC-1750ºC
Transport Package:	Wooden Packaging

BF580-17 High-Temperature Bell Jar Furnace Muffle furnace

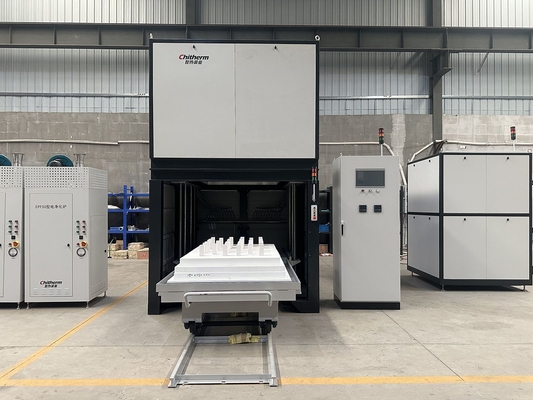

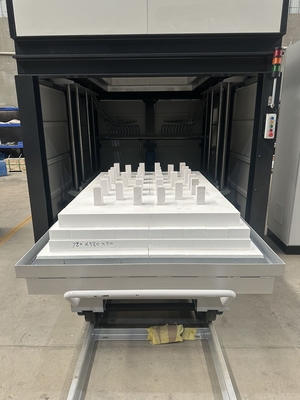

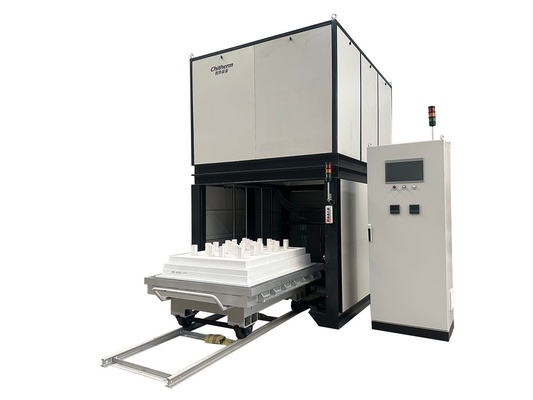

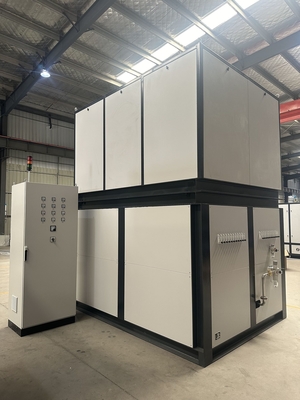

The heating chamber is a liftable, bell-shaped structure, while the hearth that carries the material remains fixed. This design is well-suited for batch sample heating processes, offering particular advantages in loading and unloading materials as well as process control.

Product Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Air and O2
Effective Chamber Dimensions	1200600800mm (DWH)
Warranty	1 Year
Temperature Range	1700ºC-1750ºC
Transport Package	Wooden Packaging

Product Description

Application:

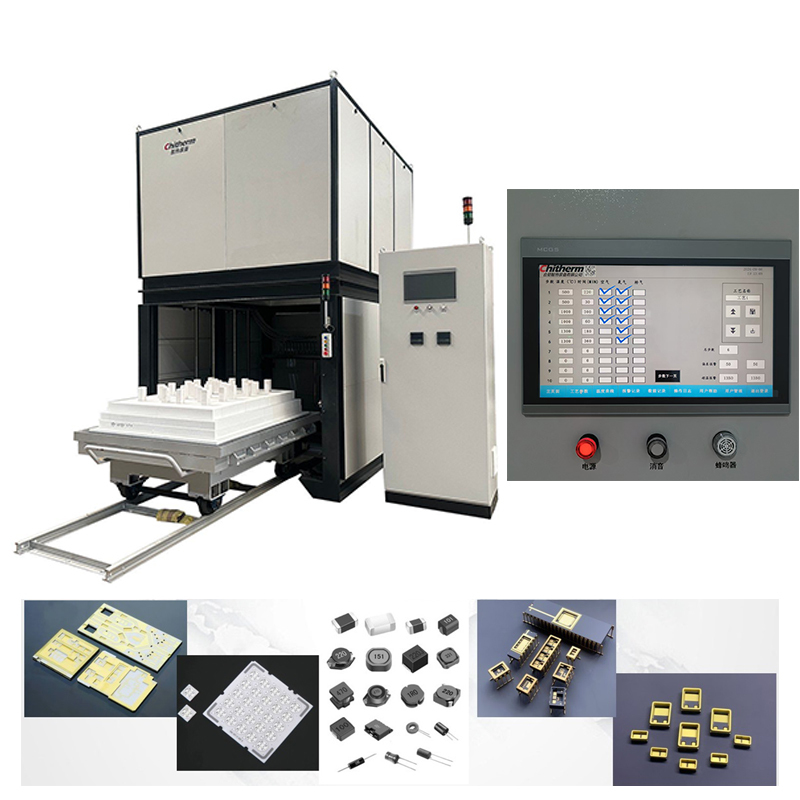

The BF580-17 High-Temperature Bell Jar Furnace Muffle furnace is widely used in high-temperature sintering processes for advanced ceramics, magnetic materials, electronic ceramic components, and other products.

Technical Specifications

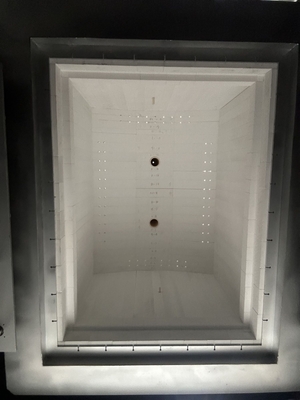

Effective Chamber Size: 1200×600×800mm (D×H×W)
External Reference Dimensions: 2880×3600×2240, excluding tracks and control cabinet
Temperature Range: 1700ºC~1750ºC
Heating Method: Heating Elements
Number of Heating Zones: 1
Insulation Material: Alumina Products / Ceramic Fiber Material
Atmosphere: Air / Oxygen
Number of Control Points: 2
Temperature Control Instrument: Imported Intelligent Temperature Controller from Japan
Number of Gas Inlet Points: 20 points in total on opposite sides of the furnace body (10 points on each side)
Operating Power Supply: 220/380VAC 50Hz
Maximum Power: 120kW
Equipment Weight: Approximately 8000kg

Delivery List

Item	Note	Qty.
Basic Components	Furnace	1 SET
Inspection Certificates	Certificates of major outsourced components	1 SET
Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 SET
Key Components	Silicon molybdenum rod	U-shaped silicon molybdenum heater
Power regulator		1 SET
Thermocouple		1 SET
Temperature controller	Island Electric, Dahua Qianye, Eurofins and other similar brands	1 SET

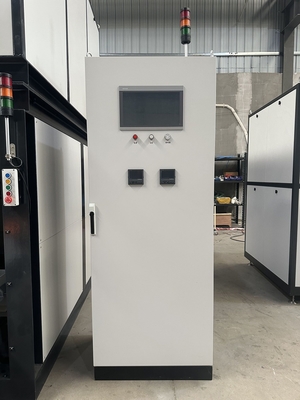

PLC	SIEMENS	1 SET
Touch Screen	15 cun	1 SET
Spare Parts	Heating Element	U-shaped silicon molybdenum heater

Equipment Operating Conditions

Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance
Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.4-0.8MPa, gas consumption of 10-30 m3/h
Ventilation System: Non-contact access user exhaust system, with an exhaust capacity greater than 50 m3/h
Ground Requirements: horizontal, no obvious vibration, load-bearing> 1000 Kg/m2
Power Condition(TBD): capacity > 160kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green
Installation Site: 6000mm×4000mm×4000mm(D×W×H), with an installation area greater than 24m2
