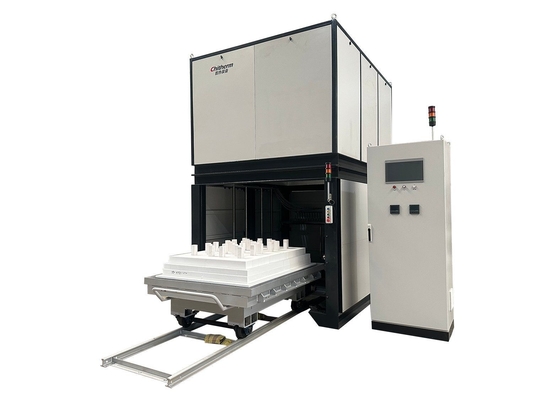

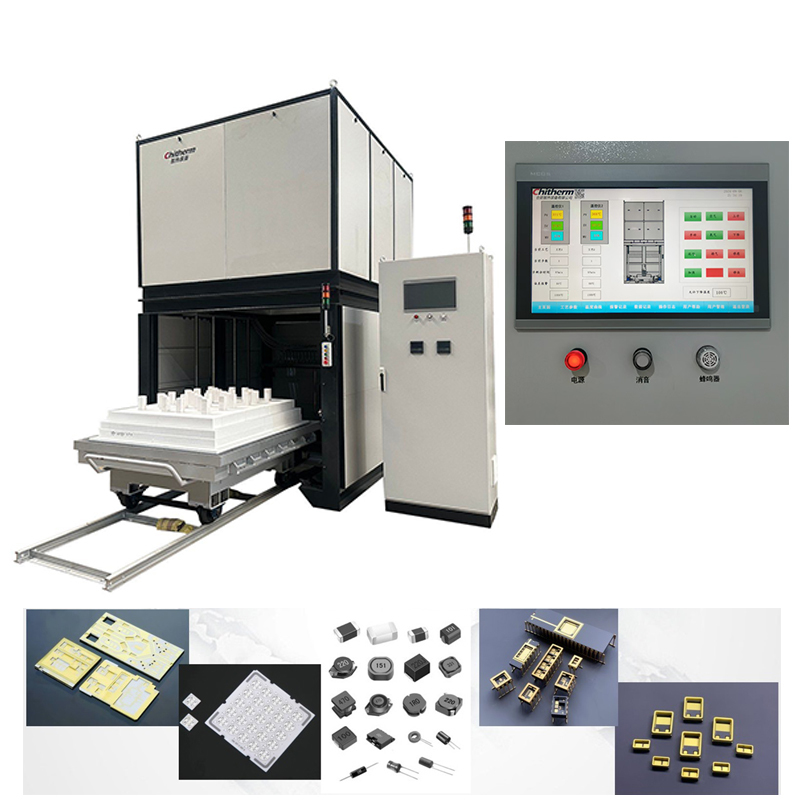

1 Heating Zone Electric Fuel Elevator Furnace 50Hz High-Temperature Bell Furnace

Large Image : 1 Heating Zone Electric Fuel Elevator Furnace 50Hz High-Temperature Bell Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Bf580-17

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	100000
Delivery Time:	90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now Chat Now

1 Heating Zone Electric Fuel Elevator Furnace 50Hz High-Temperature Bell Furnace

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Air And O2	Effective Chamber Dimensions:	1200600800mm(DWH)
Warranty:	1 Year	Temperature Range:	1700ºC-1750ºC
Transport Package:	Wooden Packaging
Highlight:	1 Heating Zone Elevator Furnace , 50Hz High-Temperature Bell Furnace , Electric Fuel Elevator Furnace

Industrial Electric Furnace BF580-17 Type High-Temperature Bell Furnace

Product Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Air and O₂
Effective Chamber Dimensions	1200×600×800mm (D×W×H)
Warranty	1 Year
Temperature Range	1700ºC-1750ºC
Transport Package	Wooden Packaging

Product Overview

The BF580-17 High-Temperature Bell Furnace is designed for precision ceramic sintering applications in industrial settings. This electric furnace features a robust construction with precise temperature control capabilities up to 1750ºC.

Key Applications

This equipment is specifically engineered for high-temperature sintering processes in advanced ceramics, magnetic materials, and electronic ceramic components manufacturing.

Technical Specifications

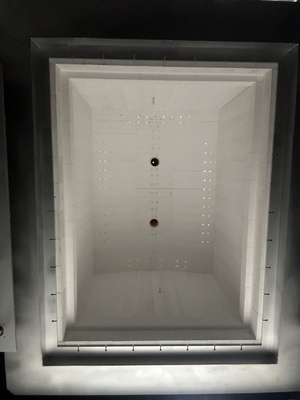

Effective Chamber Size: 1200×600×800mm (D×H×W)
External Dimensions: 2880×3600×2240mm (excluding tracks and control cabinet)
Temperature Range: 1700ºC~1750ºC
Heating Method: Heating Elements
Number of Heating Zones: 1
Insulation Material: Alumina Products / Ceramic Fiber Material
Atmosphere: Air / Oxygen
Control Points: 2

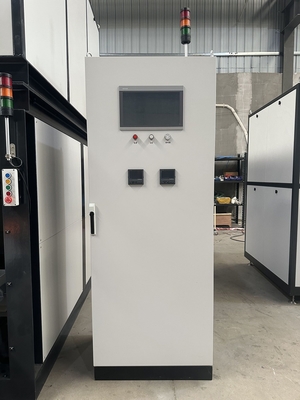

Temperature Controller: Imported Intelligent Controller from Japan
Gas Inlet Points: 20 total (10 on each side)
Power Supply: 220/380VAC 50Hz
Maximum Power: 120kW
Equipment Weight: Approximately 8000kg

Standard Delivery Contents

Item	Note	Quantity
Basic Components	Furnace	1 SET
Inspection Certificates	Certificates of major outsourced components	1 SET
Technical Documents	Instructions, technical documents	1 SET
Key Components	U-shaped silicon molybdenum heater	1 SET
Power Regulator		1 SET
Thermocouple		1 SET
Temperature Controller	Island Electric, Dahua Qianye, Eurofins or similar	1 SET
PLC	SIEMENS	1 SET
Touch Screen	15 inch	1 SET
Spare Parts	U-shaped silicon molybdenum heater	1 PC

Operating Requirements

Environmental Conditions: Temperature: 0~40ºC, humidity ≤80%RH, no corrosive gas, no strong airflow disturbance
Atmosphere Conditions: Dry, clean, oil-free compressed air (0.4-0.8MPa, 10-30 m³/h consumption)
Ventilation System: Non-contact exhaust system (>50 m³/h capacity)
Ground Requirements: Horizontal, minimal vibration, load-bearing >1000 kg/m²
Power Requirements: >160kVA capacity, 3-phase 5-wire (220/380V, 50Hz)
Installation Space: Minimum 6000×4000×4000mm (D×W×H), >24m² area
