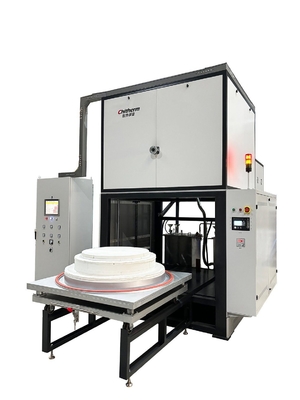

120kW Explosion Protection Elevator Furnace Alarm System High-temperature Bell Furnace

Large Image : 120kW Explosion Protection Elevator Furnace Alarm System High-temperature Bell Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	BF220-17NH

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	142173
Packaging Details:	Wooden Packaging
Delivery Time:	60-90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now

120kW Explosion Protection Elevator Furnace Alarm System High-temperature Bell Furnace

Description

Usage:	Drying	Fuel:	Electric
Atmosphere:	H2/N2	Effective Chamber Dimensions:	Φ750*500
Warranty:	1 Year	Max Temp:	1650ºC
Rated Temp:	1600ºC	Thermcouple:	B
Transport Package:	Wooden Packaging	Specification:	224029003000mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Production Capacity:	50 Sets/Year
Highlight:	Explosion Protection Elevator Furnace , Alarm System Atmosphere Bell Furnace , 120kW High-temperature Bell Furnace

120kW Explosion Protection Elevator Furnace Alarm System High-temperature Bell Furnace

Product Specifications

Attribute	Value
Usage	Drying
Fuel	Electric
Atmosphere	H2/N2
Effective Chamber Dimensions	Φ750*500
Warranty	1 Year
Max Temp	1650ºC
Rated Temp	1600ºC
Thermcouple	B
Transport Package	Wooden Packaging
Specification	224029003000mm(WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Production Capacity	50 Sets/Year

Technical Specifications

Rated Temperature: 1600ºC
Maximum Temperature: 1650ºC
Effective Dimensions: Φ750×500

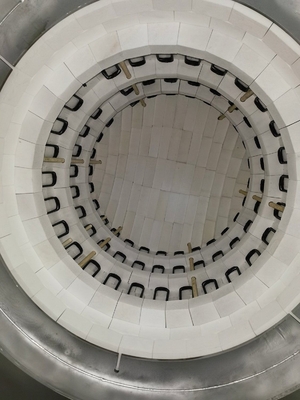

Heating Method: Molybdenum-made heater
Thermcouple: Type B
Temperature Control: 3 heating groups with independent temperature control points
Temperature Set Accuracy: ±1ºC (flat temperature insulation)
Temperature Control Mode: PID control module imported from Japan
Heat-up Rate: RT~1200ºC ≤5ºC/min, 1200~1600ºC ≤3ºC/min
Temperature Uniformity: ±5ºC (empty furnace insulation test 2 hours under 1600ºC)
Dew point range: -20~60ºC
Furnace Surface Temperature: <35ºC
Pressure range: 5000~15000Pa
Vacuum detection: Digital vacuum gauge displays vacuum value
Loading Weight: ≤3500kg (with firing furniture and products)
Explosion protection: Exhaust valve automatically opens when pressure exceeds set value
Exhaust chimney: Includes ignition device

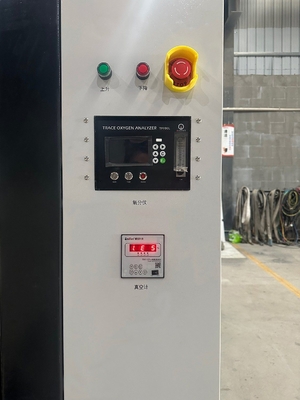

Alarm System: Comprehensive protection including over temperature, broken couple, electric leakage, and more
Maximum Heating Power: 120kW
Insulation Power: ≤60kW
External Dimensions: 2240×2900×3000mm (W×H×D) without control cabinet
Appearance Color: Light gray

Delivery List

Item	Note	Qty.
Basic Components	Furnace	1 SET
Inspection Certificates	Certificates of major outsourced components	1 SET
Technical Documents	Instructions, technical documents of the major outsourced parts	1 SET
Key Components	Molybdenum wire (Custom-made)	1 SET
Flow Meter	Azbil or HORIBA	1 SET
Thermocouple	Song Qi	1 SET
Lifting System		1 SET
Temperature Control Module	Azbil	3 SET
PLC	SIEMENS	1 SET
Touch Screen	MCGS	1 SET
Spare Parts	Heater	1 PC

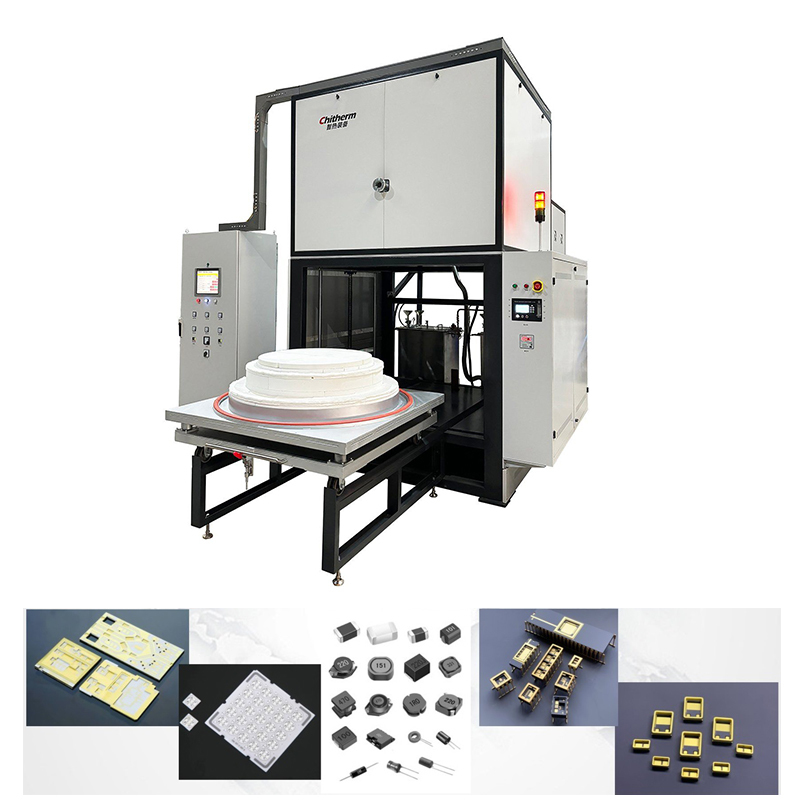

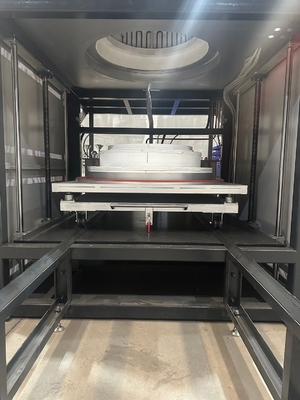

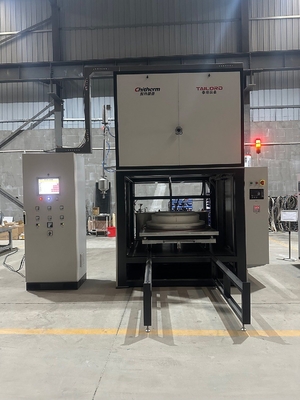

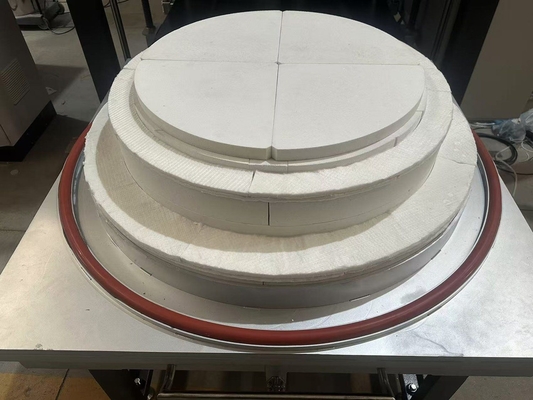

Product Images

Certifications

Equipment Normal Operating Conditions

Environmental Conditions: Temperature 0~40ºC, humidity ≤80%RH, no corrosive gas, no strong airflow disturbance
Atmosphere Conditions: Dry, clean, oil-free compressed air (0.4-0.8MPa working pressure, 30-90 m³/h gas consumption)
Ventilation System: Non-contact access to user pumping system (>100 m³/h capacity)
Ground Requirements: Horizontal, no vibration, load-bearing >600 Kg/m²
Power Requirements: >240kVA, 3-phase 5-line (220/380V, 50Hz)
Installation Site: 4000mm×4000mm×5000mm (D×W×H), >20m² area

Manufacturer Information

Hefei Chitherm Equipment Co., Ltd. is a professional enterprise engaged in the research and development, design, manufacturing, sales, maintenance and service of high, medium and low temperature industrial furnaces and experimental furnaces.

Our product range includes Bell Furnaces, Box Furnaces, Hot Air Dryers, Tube Furnaces, Vacuum Furnaces, Trolley Furnaces, and Rotary Furnaces. These are widely used in scientific research and experimentation in advanced ceramics, additive manufacturing, powder metallurgy, new energy and other fields.

We maintain a responsible attitude towards customers and provide high-quality products and services. Our intelligent equipment manufacturing capabilities continue to improve through customer support and collaboration.
