1650°C Melting Furnace Bf220-17nh High-Temperature Atmosphere Bell Furnace

Large Image : 1650°C Melting Furnace Bf220-17nh High-Temperature Atmosphere Bell Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	BF220-17NH

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	142173
Packaging Details:	Wooden Packaging
Delivery Time:	60-90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now

1650°C Melting Furnace Bf220-17nh High-Temperature Atmosphere Bell Furnace

Description

Usage:	Drying	Fuel:	Electric
Atmosphere:	H2/N2	Effective Chamber Dimensions:	Φ750*500
Warranty:	1 Year	Max Temp:	1650ºC
Rated Temp:	1600ºC	Thermcouple:	B
Transport Package:	Wooden Packaging	Specification:	224029003000mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Production Capacity:	50 Sets/Year
Highlight:	1650°C Atmosphere Bell Melting Furnace , Atmosphere Bell Melting Furnace , BF220-17NH Atmosphere Bell Melting Furnace

1650°C Melting Furnace Bf220-17nh High-Temperature Atmosphere Bell Furnace

Product Specifications

Attribute	Value
Usage	Drying
Fuel	Electric
Atmosphere	H2/N2
Effective Chamber Dimensions	Φ750*500
Warranty	1 Year
Max Temp	1650ºC
Rated Temp	1600ºC
Thermcouple	B
Transport Package	Wooden Packaging
Specification	224029003000mm(WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Production Capacity	50 Sets/Year

Technical Specifications

Rated Temp.: 1600ºC
Max Temp.: 1650ºC
Effective Dimensions: Φ750×50

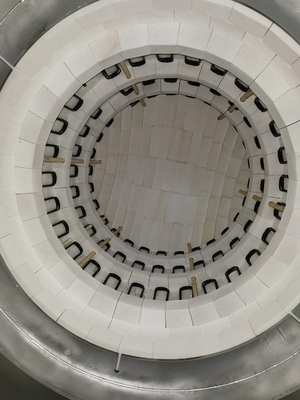

Heating Method: Molybdenum-made heater
Thermcouple: Type B
Temperature Control: 3 heating groups with independent temperature control points
Temp. Set Accuracy: ±1ºC (flat temp. insulation)
Temp. Control Mode: Control module imported from Japan with PID
Heat-up Rate: RT~1200ºC≤5ºC/min, 1200~1600ºC≤3ºC/min
Temp. Uniformity: ±5ºC (empty furnace insulation test 2hours under 1600ºC)
Dew point range: -20~60ºC
Furnace Surface Temperature: <35ºC
Pressure range: 5000~15000Pa
Vacuum detection: Vacuum gauge tube detects the vacuum value
Loading Weight: ≤3500kg (with firing furniture and products)
Explosion protection: Exhaust valve automatically opens when pressure exceeds set value
Exhaust chimney: Exhaust outlet with ignition device
Alarm System: Over temperature, broken couple, electric leakage, broken wire, motor overload, humidifier low water level, low pressure, cooling water low water pressure, UPS start alarm
Maximum Heating Power: 120kW
Insulation Power: ≤60kW
External Dimensions: 2240×2900×3000mm (W×H×D) without control cabinet
Appearance Color: Light gray

Delivery List

Item	Note	Qty.
Basic Components	Furnace	1 SET
Inspection Certificates	Certificates of major outsourced components	1 SET
Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 SET
Key Components	Molybdenum wire (Custom-made)	1 SET
Flow Meter	Azbil or HORIBA	1 SET
Thermocouple	Song Qi	1 SET
Lifting System		1 SET
Temperature Control Module	Azbil	3 SET
PLC	SIEMENS	1 SET
Touch Screen	MCGS	1 SET
Spare Parts	Heater	1 PC

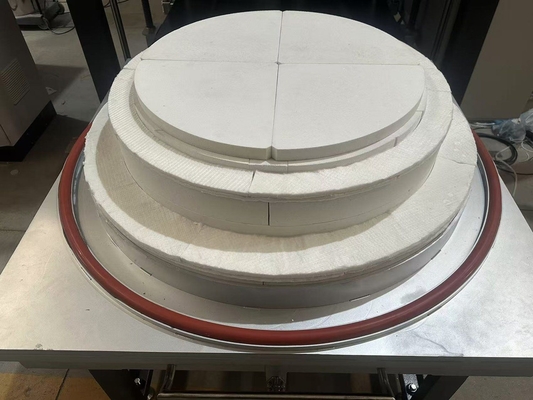

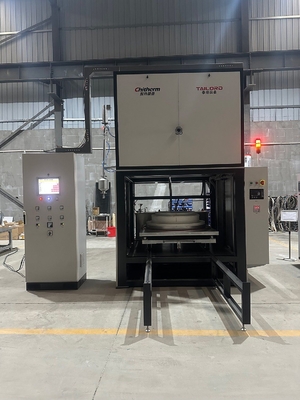

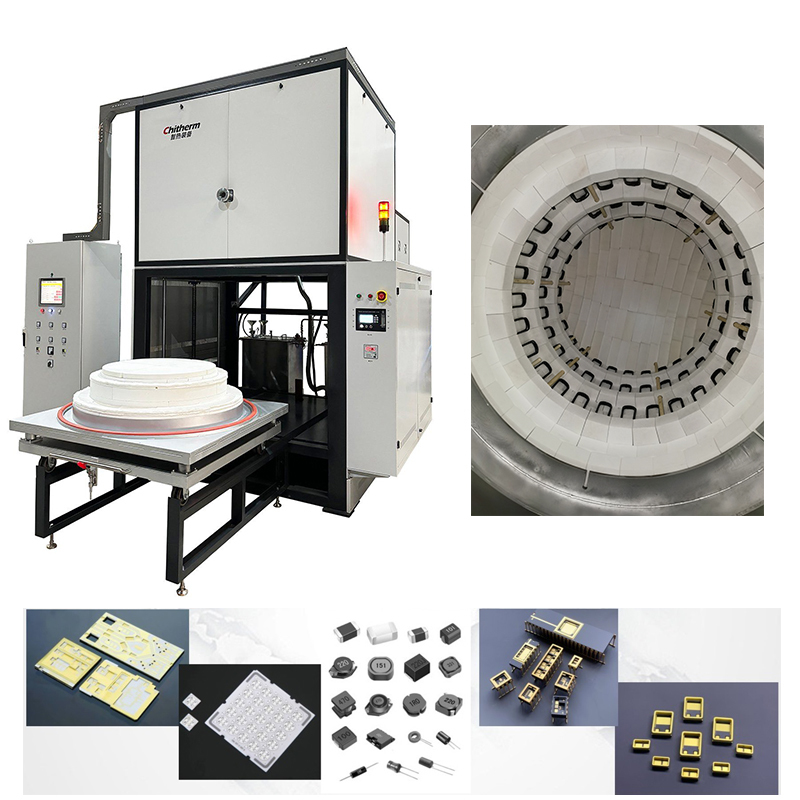

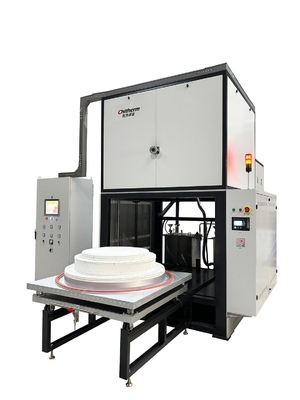

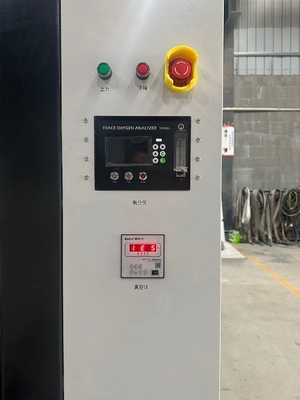

Product Images

Certifications

Company Profile

Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces.

Our product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics.

These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.

Equipment Normal Operating Conditions

Environmental Conditions: Temperature: 0~40ºC, humidity≤80%RH, no corrosive gas, no strong airflow disturbance
Atmosphere Conditions: Dry, clean, oil-free compressed air, working pressure of 0.4-0.8MPa, gas consumption of 30-90 m³/h
Ventilation System: Non-contact access to user pumping system, pumping capacity >100 m³/h
Ground Requirements: Horizontal, no obvious vibration, load-bearing>600 Kg/m²
Power Condition: Capacity >240kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz
Installation Site: 4000mm×4000mm×5000mm (D×W×H), installation area >20m²
