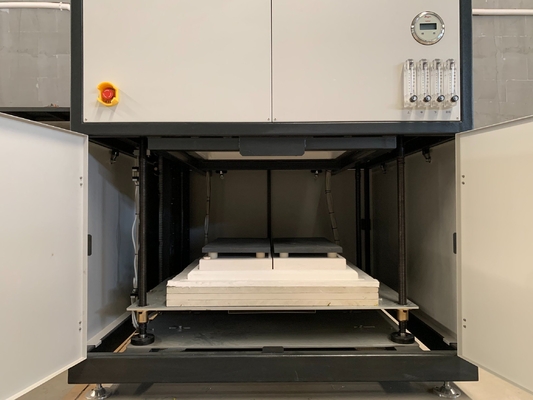

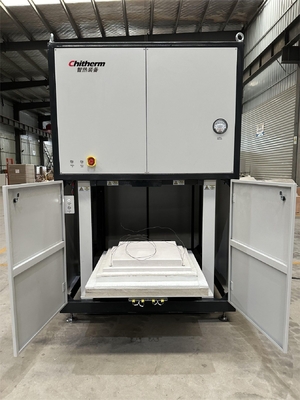

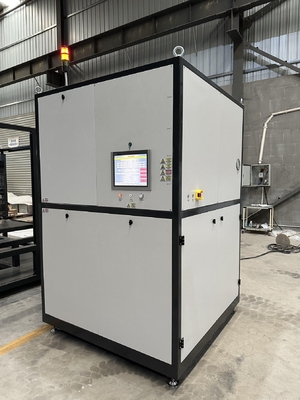

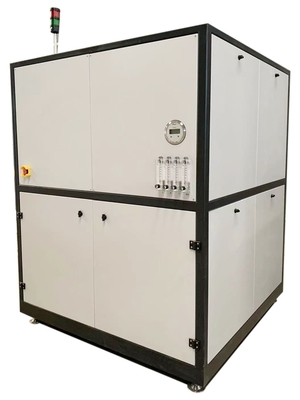

800mm TypeK Maximum Lifting Trip Elevator Furnace Precise Temperature Control Elevator Furnace

Hefei Chitherm Equipment Co., Ltd. is a professional enterprise engaged in the research and development, design, manufacturing, sales, maintenance and service of high, medium and low temperature industrial furnaces and experimental furnaces.

Our products include Bell Furnaces, Box Furnaces, Hot Air Dryer, Tube Furnaces, Vacuum Furnaces, Trolley Furnaces, and Rotary Furnaces. All of which are widely used in scientific research and experimentation in advanced ceramics, additive manufacturing, powder metallurgy, new energy and other fields. Suitable for the extrusion, sintering process of magnetic materials, honeycomb ceramics, alumina ceramics, zirconia ceramics, CIM/MIM, and positive and negative electrode materials of lithium batteries, as well as various other new materials such as pre-firing, extrusion, degreasing, firing, drying, co-firing, post-firing, soldering, curing, ceramic metallization, etc.

We insist responsible attitude towards customers and provide high-quality products and services. It is precisely because of the support, understanding, and trust of our customers and friends that our intelligent equipment manufacturing capabilities continue to improve. We are willing to work with customers to support the rapid development of electronics and advance materials all over the world.

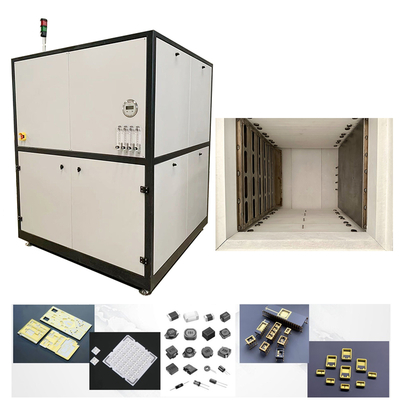

This equipment is mainly designed for LTCC sintering, it can also be used for binder burning out and sintering process of other relevant electrical products.

• Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2-0.4MPa, gas consumption of 25-70 m3/h
• Environmental Conditions: temperature: 0~40ºC, humidity≤80%RH, no corrosive gas, no strong airflow disturbance
• Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 100 m3/h
• Ground Requirements: horizontal, no obvious vibration, load-bearing>500 kg/m2
• Power: capacity> 70KVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green
• Installation Site: 3500mm×3000mm×3000mm(D×W×H), with an installation area greater than 11m2
