1000°C Elevator Furnace For LTCC Casting Process And Binder Burnout

Large Image : 1000°C Elevator Furnace For LTCC Casting Process And Binder Burnout

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Bf216-11

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	86000-86361
Packaging Details:	Wooden Package
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now

1000°C Elevator Furnace For LTCC Casting Process And Binder Burnout

Description

Model NO.:	Bf216-11	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric
Highlight:	Elevator Furnace For LTCC Casting Process , 1000°C Elevator Furnace , Elevator Furnace For Binder Burnout

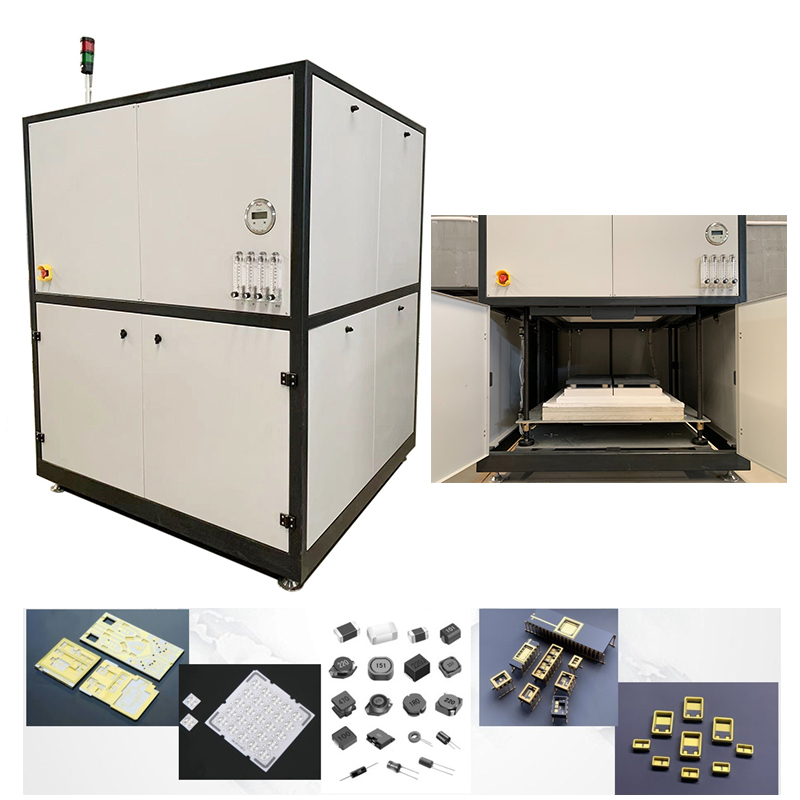

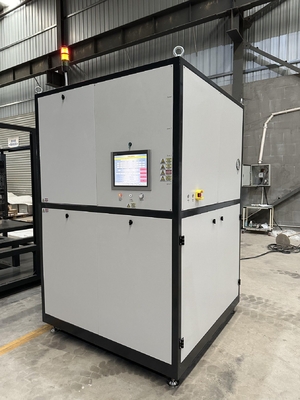

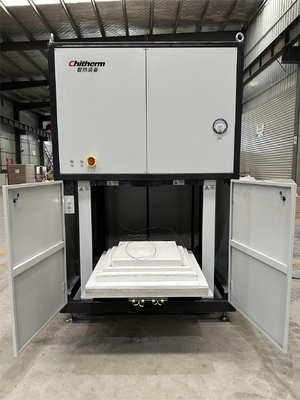

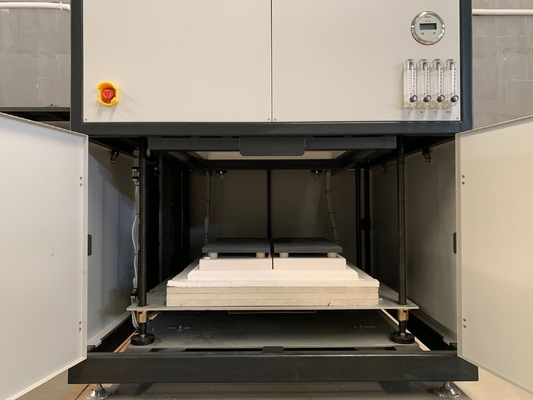

BF216-11 Bell Furnace for LTCC Casting and Sintering

Product Overview

The BF216-11 Bell Furnace is an electric industrial furnace specifically designed for Low-Temperature Co-Fired Ceramics (LTCC) casting and sintering processes. This precision equipment is also suitable for binder burnout and sintering of other electrical components.

Key Attributes

Model Number	BF216-11
Application	Industrial
Type	Electric Holding Furnace
Primary Use	Ceramic Sintering
Power Source	Electric

Technical Specifications

Rated Temperature: 850°C

Maximum Temperature: 1000°C

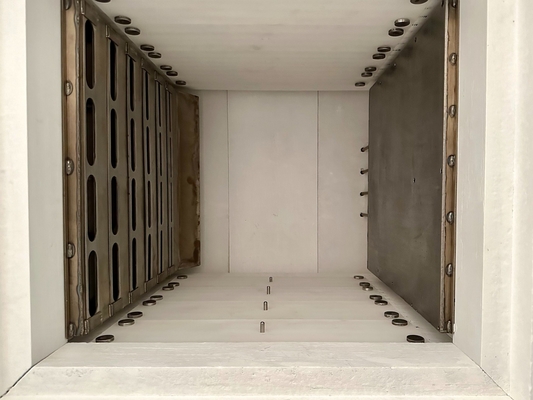

Chamber Dimensions: 600mm × 600mm × 600mm (D×W×H)

Effective Working Area: 400mm × 400mm × 400mm (D×W×H)

Insulation Material: Aluminosilicate Ceramic Fiber

Heating Elements: Resistance Coils in Ceramic Fiber Block

Temperature Control: 4 Points with Japanese Imported Controller

Temperature Uniformity: ±3°C in working area

Total Power: 52kW (40kW heating + 12kW gas preheating)

Weight: Approximately 1000kg

Standard Shipping Contents

Component	Description	Quantity
Furnace Unit	Main assembly	1 Set
Certification	Certificate of major components	1 Set
Documentation	Operation manual and technical documents	1 Set
Heating System	Resistance coils heating plate	1 Set
Control System	Includes PLC, touch screen, and temperature controller	1 Set
Spare Parts	Includes solid state relay and heating elements	2 Pieces

Installation Requirements

Atmosphere: Dry, clean, oil-free compressed air (0.2-0.4MPa, 25-70 m³/h)
Environment: 0-40°C, ≤80% RH, no corrosive gases or strong airflow
Ventilation: Minimum 100 m³/h pumping capacity
Floor: Level surface, >500 kg/m² load capacity, minimal vibration
Power: >70KVA, 3-phase 5-wire (220/380V, 50Hz)
Space: Minimum 3.5m × 3m × 3m (11m² area)

Manufacturer Information

Hefei Chitherm Equipment Co., Ltd. specializes in the R&D, manufacturing, and service of industrial furnaces for advanced materials processing. Our product range includes:

Bell Furnaces
Box Furnaces
Vacuum Furnaces
Tube Furnaces
Trolley Furnaces

Our equipment serves research and production needs in ceramics, powder metallurgy, additive manufacturing, and new energy materials development.
