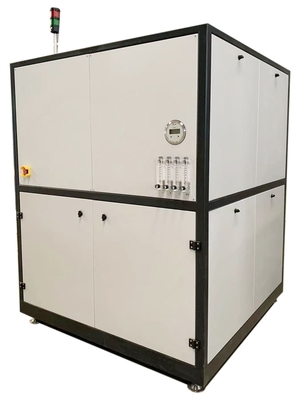

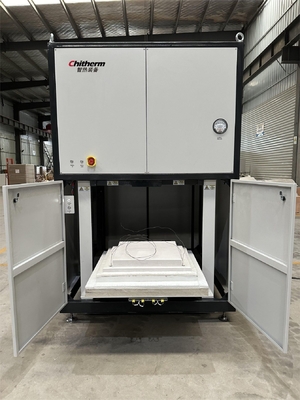

52kW BF216-11 Bell-Jar Furnace Elevator Furnace For Ceramic Sintering

Large Image : 52kW BF216-11 Bell-Jar Furnace Elevator Furnace For Ceramic Sintering

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Bf216-11

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	86000-86361
Packaging Details:	Wooden Package
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now

52kW BF216-11 Bell-Jar Furnace Elevator Furnace For Ceramic Sintering

Description

Model NO.:	Bf216-11	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric
Highlight:	52kW Elevator Furnace , Elevator Furnace For Ceramic Sintering , BF216-11 Bell-Jar Furnace

52kW BF216-11 Bell-Jar Furnace Elevator Furnace For Ceramic Sintering

Product Attributes

Attribute	Value
Model NO.	Bf216-11
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric

Product Description

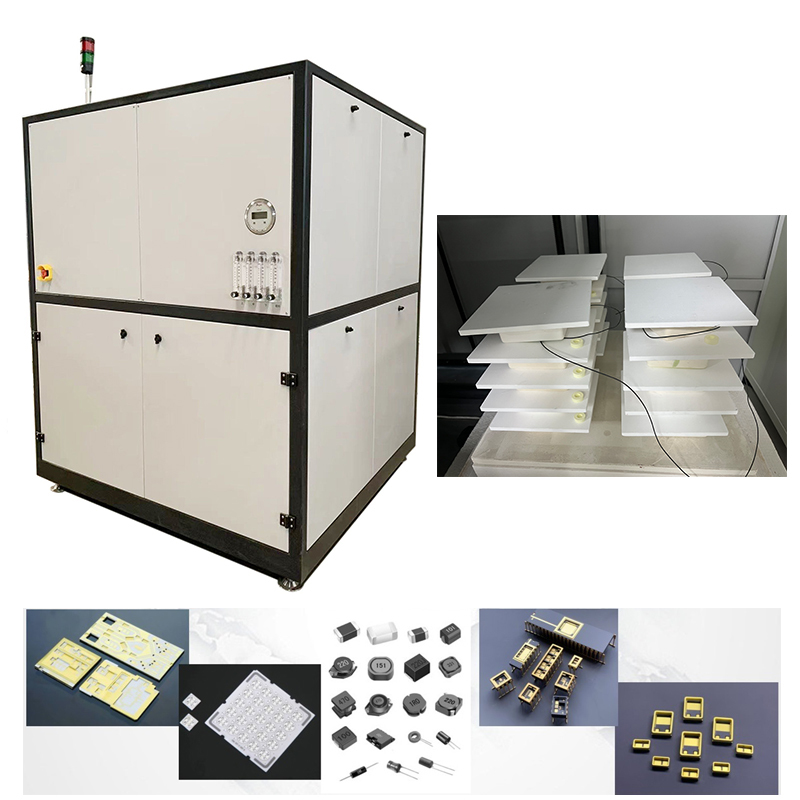

This equipment is mainly designed for LTCC sintering, it can also be used for binder burning out and sintering process of other relevant electrical products.

Technical Specifications

Rated Temperature	850ºC
Max. Temperature	1000ºC

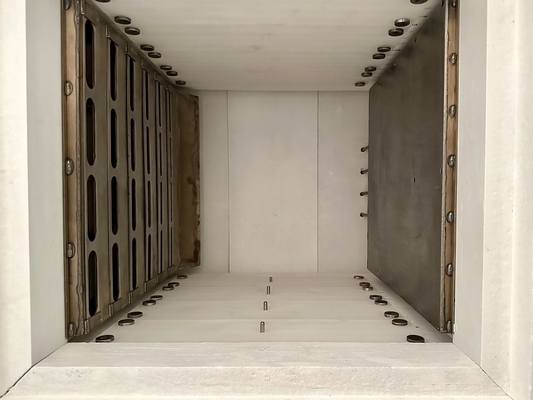

Chamber Dimensions	600mm×600mm×600mm(D×W×H)
Effective Dimensions	400mm×400mm×400mm(D×W×H)
Chamber Insulation Material	Aluminosilicate Ceramic Fiber
Heating Elements	Resistance Coils in Ceramic Fiber Block
Thermcouple	Type K
Temperature Control Point	4 Points

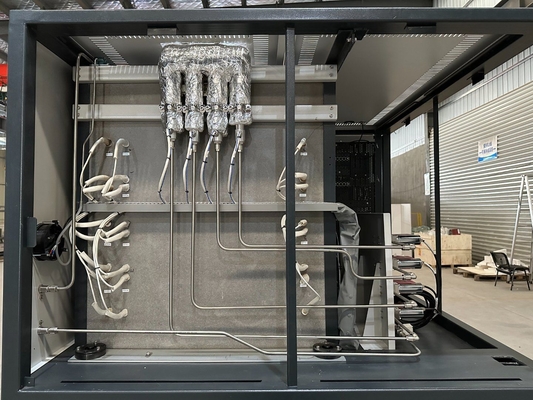

Pre-Heating	4 Inlets
3 Stages Pre-Filtering of air	1- dust, 2 - water drops, 3 - oil vapor
Temperature Control Mode	Temperature controller imported from Japan
Heating-up Steps	Default 20 Steps
Chamber Temperature Uniformity	400mm×400mm×400mm (D×W×H) area is better than ± 3ºC

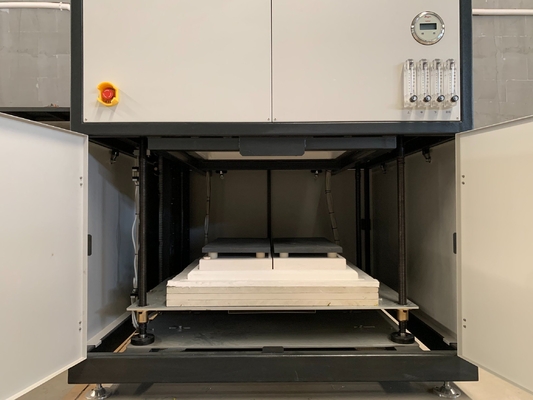

Maximum Lifting Trip	800mm
Total Power	52kW (Max Heating Power:40kW, Max Gas Preheating Power:4×3kW)
Weight	about 1000kg

Shipping List

Item	Description	Qty
Basic Components	Furnace	1SET
inspection certificate	Certificate of major outsourced components	1SET
Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1SET
Key Components	Heating Elements - Resistance Coils Heating Plate	1SET
Flowmeter	Azbil/Dwyer/TOFCO/YINHUAN	1SET
Differential Pressure	Dwyer/TOFCO/DUWEI	1SET
Thermocouple	Watlow/THERMOWAY	1SET
Lifting System	Customized	1SET
Temp. Controller	Azbil	1SET
PLC	SIEMENS	1SET

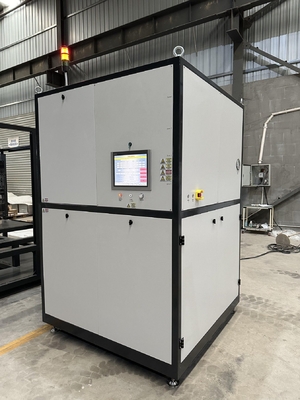

Touch Screen	MCGS (based on Linux)	1SET
Spare Parts	Solid State Relay - XIMADEN	1PC
Heating Elements	Resistance Coils Heating Plate	1 PC

Facility Requirements

Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2-0.4MPa, gas consumption of 25-70 m3/h
Environmental Conditions: temperature: 0~40ºC, humidity≤80%RH, no corrosive gas, no strong airflow disturbance
Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 100 m3/h
Ground Requirements: horizontal, no obvious vibration, load-bearing>500 kg/m2
Power: capacity> 70KVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green
Installation Site:3500mm×3000mm×3000mm(D×W×H), with an installation area greater than 11m2
