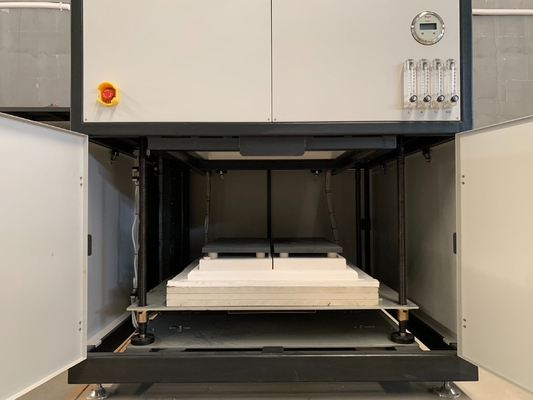

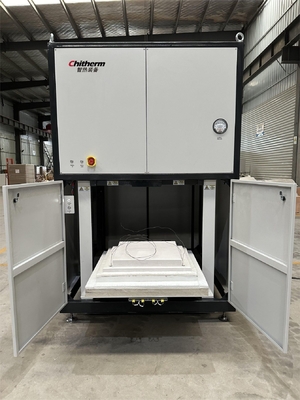

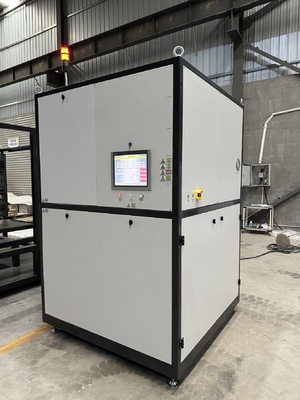

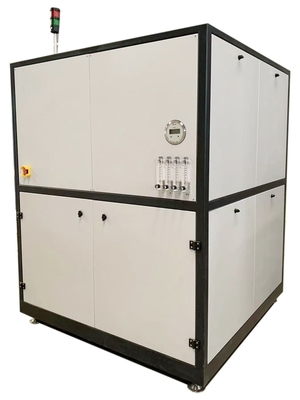

4 Inlets Aluminosilicate Ceramic Fiber Elevator Furnace For LTCC Sintering

Large Image : 4 Inlets Aluminosilicate Ceramic Fiber Elevator Furnace For LTCC Sintering

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Bf216-11

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	86000-86361
Packaging Details:	Wooden Package
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now

4 Inlets Aluminosilicate Ceramic Fiber Elevator Furnace For LTCC Sintering

Description

Model NO.:	Bf216-11	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric
Highlight:	Aluminosilicate Ceramic Fiber Elevator Furnace , 4 Inlets Elevator Furnace , Elevator Furnace For LTCC Sintering

Bf216-11 Bell-Jar Furnace with Temperature Control Accuracy of ≤ ± 1° C

Product Attributes

Model NO.	Bf216-11
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric

Company Profile

Hefei Chitherm Equipment Co., Ltd. is a professional enterprise engaged in the research and development, design, manufacturing, sales, maintenance and service of high, medium and low temperature industrial furnaces and experimental furnaces.

Our products include Bell Furnaces, Box Furnaces, Hot Air Dryer, Tube Furnaces, Vacuum Furnaces, Trolley Furnaces, and Rotary Furnaces. All of which are widely used in scientific research and experimentation in advanced ceramics, additive manufacturing, powder metallurgy, new energy and other fields.

We maintain a responsible attitude towards customers and provide high-quality products and services. Our intelligent equipment manufacturing capabilities continue to improve through customer support and collaboration.

Product Description

1. Application

This equipment is primarily designed for LTCC sintering, and can also be used for binder burning out and sintering processes of other relevant electrical products.

2. Technical Specification

Rated Temperature	850ºC
Max. Temperature	1000ºC
Chamber Dimensions	600mm×600mm×600mm(D×W×H)
Effective Dimensions	400mm×400mm×400mm(D×W×H)

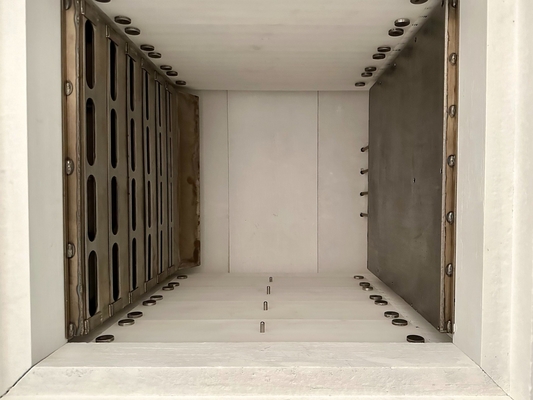

Chamber Insulation Material	Aluminosilicate Ceramic Fiber
Heating Elements	Resistance Coils in Ceramic Fiber Block
Thermcouple	Type K
Temperature Control Point	4 Points

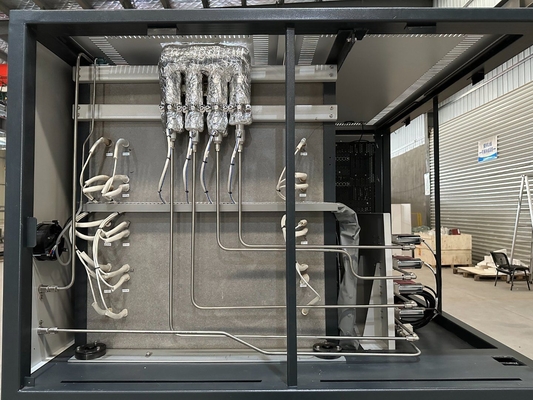

Pre-Heating	4 Inlets
3 Stages Pre-Filtering of air	1- dust, 2 - water drops, 3 - oil vapor
Temperature Control Mode	Temperature controller imported from Japan
Heating-up Steps	Default 20 Steps
Chamber Temperature Uniformity	400mm×400mm×400mm (D×W×H) area is better than ± 3ºC
Maximum Lifting Trip	800mm
Total Power	52kW (Max Heating Power:40kW, Max Gas Preheating Power:4×3kW)
Weight	about 1000kg

3. Shipping List

Item	Description	Qty
Basic Components	Furnace	1SET
inspection certificate	Certificate of major outsourced components	1SET
Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1SET
Key Components	Heating Elements \| Resistance Coils Heating Plate	1SET
Flowmeter	Azbil/Dwyer/TOFCO/YINHUAN	1SET
Differential Pressure	Dwyer/TOFCO/DUWEI	1SET
Thermocouple	Watlow/THERMOWAY	1SET
Lifting System	Customized	1SET
Temp. Controller	Azbil	1SET
PLC	SIEMENS	1SET

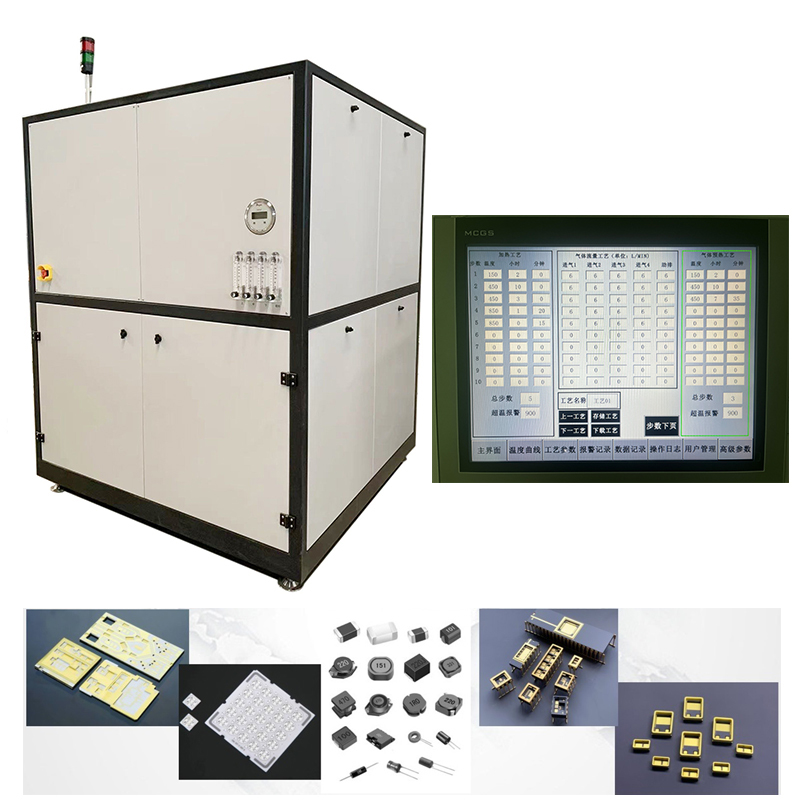

Touch Screen	MCGS (based on Linux)	1SET
Spare Parts	Solid State Relay \| XIMADEN	1PC
Heating Elements	Resistance Coils Heating Plate	1 PC

4. Facility Requirements

Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2-0.4MPa, gas consumption of 25-70 m3/h
Environmental Conditions: temperature: 0~40ºC, humidity≤80%RH, no corrosive gas, no strong airflow disturbance
Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 100 m3/h
Ground Requirements: horizontal, no obvious vibration, load-bearing>500 kg/m2
Power: capacity> 70KVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz
Installation Site: 3500mm×3000mm×3000mm(D×W×H), with an installation area greater than 11m2
