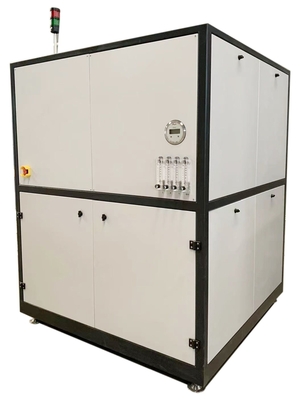

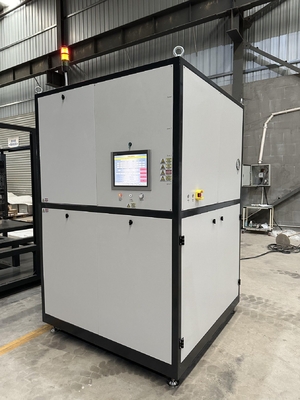

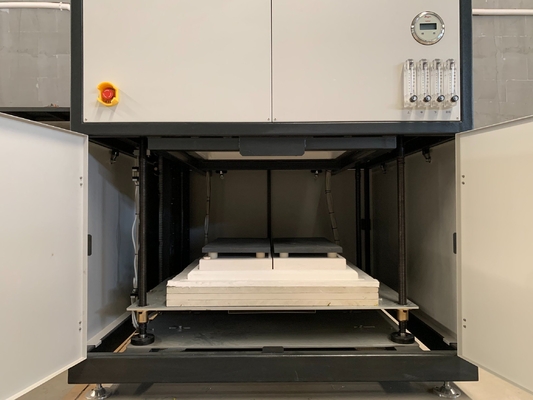

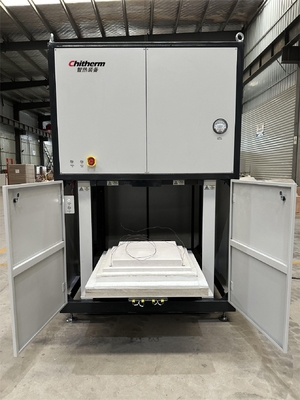

Bf216-11 Bell-Cage Industrial Furnace Electric Fuel Elevator Furnace

Large Image : Bf216-11 Bell-Cage Industrial Furnace Electric Fuel Elevator Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Bf216-11

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	86000-86361
Packaging Details:	Wooden Package
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now

Bf216-11 Bell-Cage Industrial Furnace Electric Fuel Elevator Furnace

Description

Model NO.:	Bf216-11	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric
Highlight:	Electric Fuel Elevator Furnace , Bell-Cage Industrial Furnace , Bf216-11 Elevator Furnace

Industrial Furnace BF216-11 Bell-Cage Furnace

High-performance electric bell-cage furnace designed for ceramic sintering and experimental applications in industrial settings.

Product Specifications

Attribute	Value
Model NO.	BF216-11
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric

About Hefei Chitherm Equipment Co., Ltd.

Professional manufacturer specializing in research, development, and production of high, medium, and low temperature industrial furnaces and experimental furnaces. Our product range includes:

Bell Furnaces
Box Furnaces
Hot Air Dryers
Tube Furnaces
Vacuum Furnaces
Trolley Furnaces
Rotary Furnaces

Widely used in advanced ceramics, additive manufacturing, powder metallurgy, new energy, and other high-tech fields.

Primary Applications

Specifically designed for LTCC sintering processes, with additional capabilities for binder burning out and sintering of various electrical components.

Technical Specifications

Rated Temperature: 850°C

Max. Temperature: 1000°C

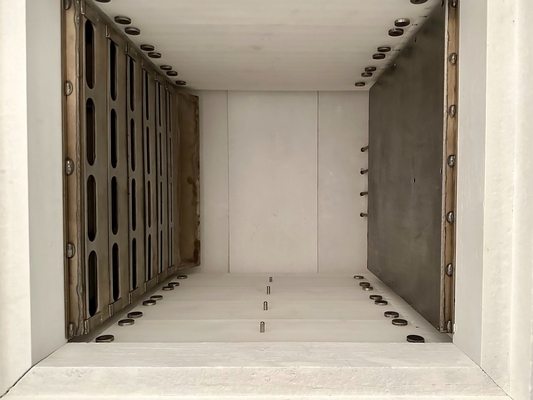

Chamber Dimensions: 600mm×600mm×600mm (D×W×H)

Effective Dimensions: 400mm×400mm×400mm (D×W×H)

Chamber Insulation: Aluminosilicate Ceramic Fiber

Heating Elements: Resistance Coils in Ceramic Fiber Block

Temperature Control: ±1°C accuracy with 4 control points

Total Power: 52kW (40kW heating + 12kW gas preheating)

Weight: Approximately 1000kg

Standard Shipping Contents

Item	Description	Quantity
Basic Components	Furnace	1 SET

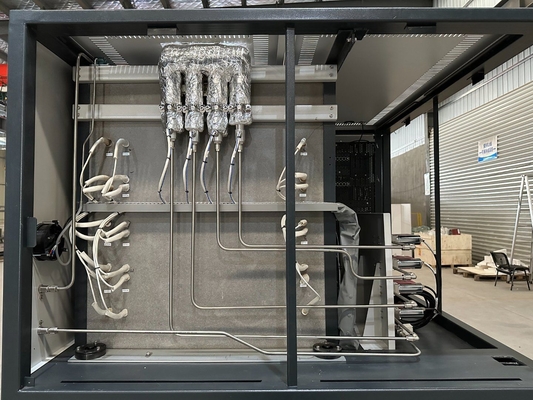

Key Components	Heating Elements, Flowmeter, Thermocouple, etc.	1 SET each

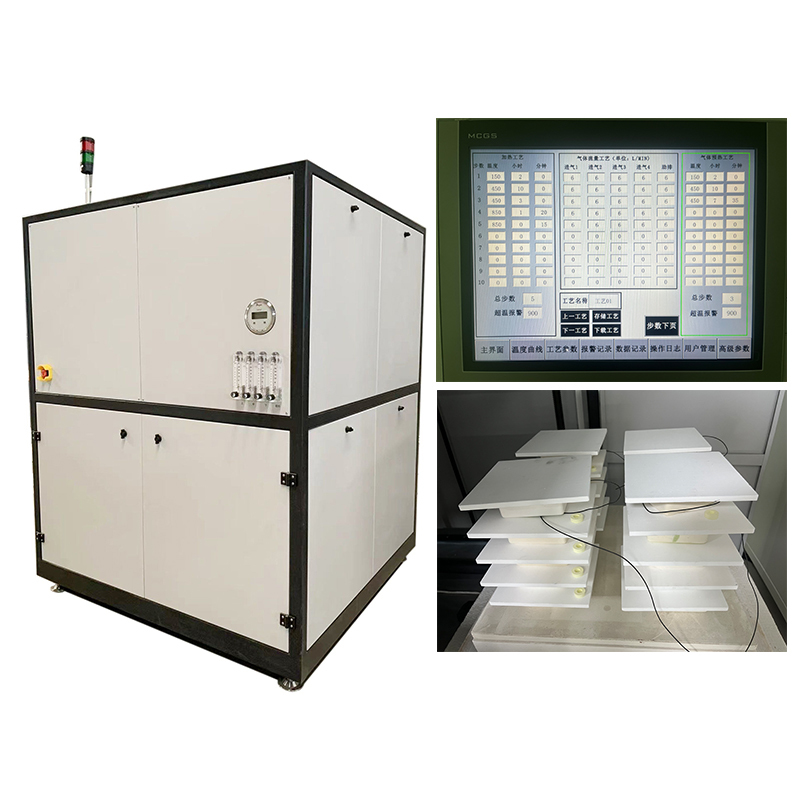

Control System	PLC, Touch Screen, Temperature Controller	1 SET
Documentation	Instructions, Technical Documents	1 SET

Facility Requirements

Atmosphere: Dry, clean, oil-free compressed air (0.2-0.4MPa, 25-70 m³/h)
Environment: 0-40°C, ≤80% RH, no corrosive gases
Power: >70KVA, 3-phase 5-wire (220/380V, 50Hz)
Space: Minimum 3.5m×3m×3m installation area
Floor: Horizontal, >500 kg/m² load capacity

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and specialized kilns for various industrial applications.

What pre-sales services does Chitherm provide?

We offer comprehensive consultation services and fully customizable solutions to meet specific process requirements.

What are Chitherm's core strengths?

As a high-tech enterprise, we combine patented technologies with extensive manufacturing expertise to deliver superior thermal processing solutions.
