Temperature Control High Temperature Box Furnace PID Auto-tuning High Temperature Box Furnace

Large Image : Temperature Control High Temperature Box Furnace PID Auto-tuning High Temperature Box Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF52-17NO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Specification 177021501250mm(WHD)Wooden Packaging
Delivery Time:	90 work days
Payment Terms:	T/T,L/C
Supply Ability:	50 Sets/Year

Contact Now

Temperature Control High Temperature Box Furnace PID Auto-tuning High Temperature Box Furnace

Description

Highlight:

Temperature Control High Temperature Box Furnace

PID Auto-tuning High Temperature Box Furnace

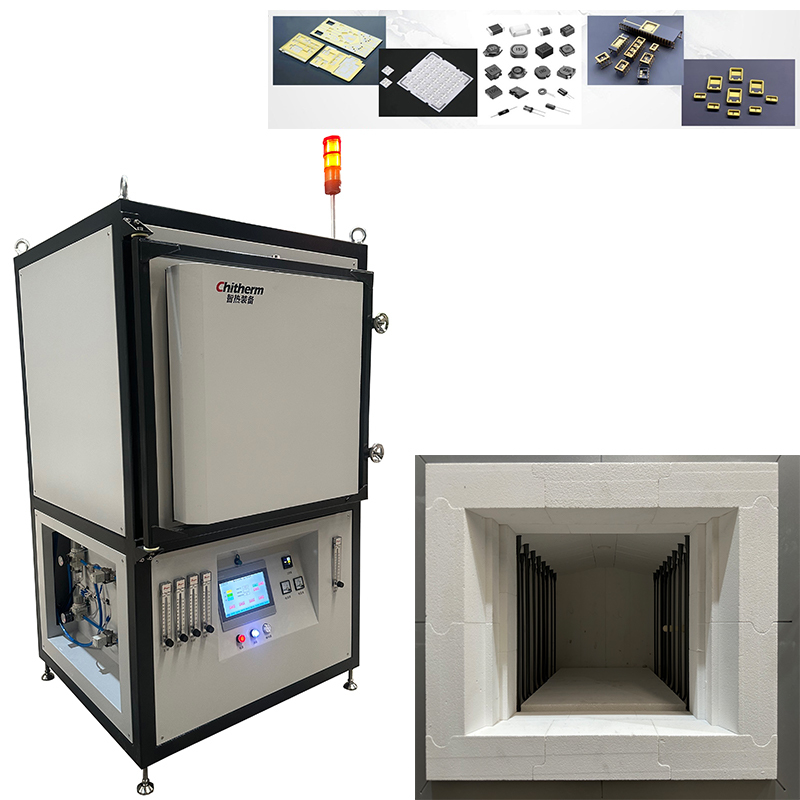

HBF52-17NO High-Temperature Box Furnace

Professional-grade box furnace designed for high-temperature sintering processes up to 1700°C, featuring PID auto-tuning temperature control and excellent thermal uniformity.

Key Applications

ITO targets production
Microwave ferrites processing
Magnetic materials sintering
Electronic components manufacturing
Ceramic filters production

Technical Specifications

Parameter	Specification
Rated Temperature	1650°C
Maximum Temperature	1700°C (short-term)
Chamber Dimensions	350×300×500mm (W×H×D)

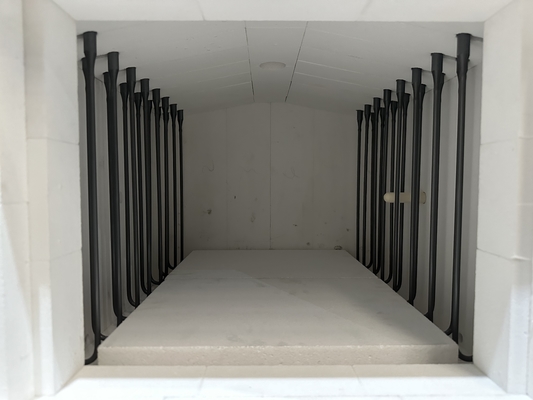

Heating Elements	U-shaped molybdenum disilicide rods
Temperature Control	±1°C (PID auto-tuning)
Temperature Uniformity	±5°C at 1650°C
Programmable Segments	4×16 programmable segments

Safety & Performance Features

Dual atmosphere control (air/oxygen)
Comprehensive protection system with audible/visual alarms
Automatic power cutoff for over-temperature protection
Surface temperature rise ≤40°C
Heating rate: ≤5°C/min (RT-1200°C), ≤2°C/min (1200-1700°C)

Physical Parameters

Equipment Weight	≈950kg
Dimensions	1620×1960×1220mm (W×H×D)

Operating Requirements

Environmental Conditions: 0-40°C, ≤80%RH (non-corrosive environment)

Gas Supply: Clean dry compressed air or high-purity oxygen (0.2-0.4MPa, 2-6m³/h)

Electrical: 3-phase 5-wire, ≥34KVA, 220/380V 50Hz

Installation Space: Minimum 2000×3000×1500mm (W×H×D)

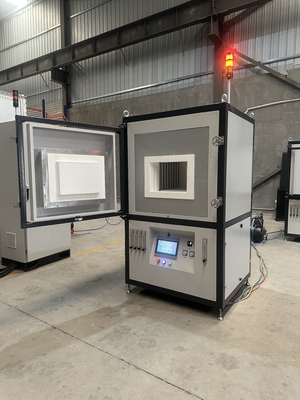

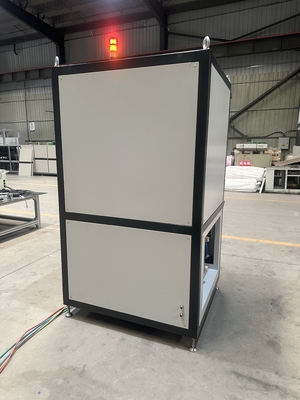

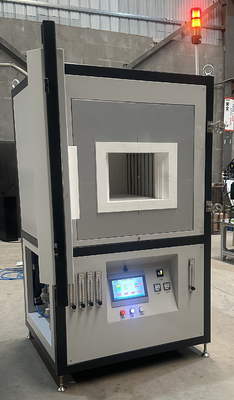

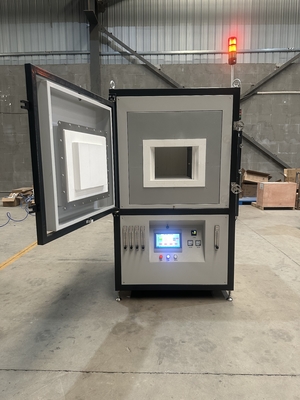

Product Images

Standard Delivery Contents

Component	Details	Quantity
Furnace Unit	Complete assembly	1 PC
Heating Elements	MoSi2	1 Set
Temperature Controller	CHINO	1 Set

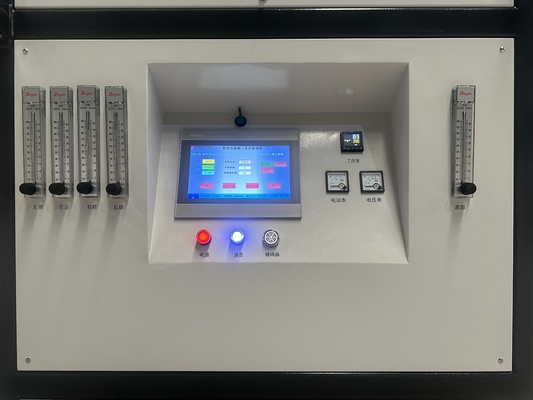

Monitor	Proface 10" touch screen	1 Set
Spare Parts	MoSi2 heating elements	1 PC

Certifications

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality industrial furnaces including bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and specialized kilns for various thermal processing applications.

What pre-sales services does Chitherm provide?

Our team offers comprehensive consultation services and customized solutions to match your specific thermal processing requirements.

What are Chitherm's core strengths?

As a high-tech enterprise with patented technologies, we combine R&D expertise with manufacturing excellence to deliver superior thermal processing solutions.
