Light Gray Alarm System High Temperature Box Furnace Electronic Components High Temperature Box Furnace

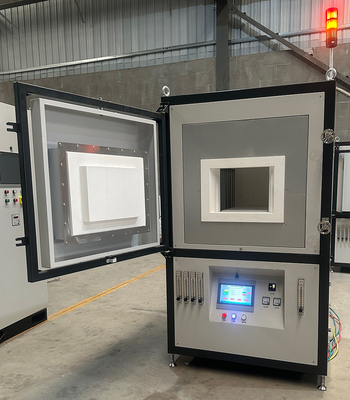

Large Image : Light Gray Alarm System High Temperature Box Furnace Electronic Components High Temperature Box Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF52-17NO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Specification 177021501250mm(WHD)Wooden Packaging
Delivery Time:	90 work days
Payment Terms:	T/T,L/C
Supply Ability:	50 Sets/Year

Contact Now

Light Gray Alarm System High Temperature Box Furnace Electronic Components High Temperature Box Furnace

Description

Highlight:

Alarm System High Temperature Box Furnace

Light Gray High Temperature Box Furnace

Electronic Components High Temperature Box Furnace

HBF52-17NO High-Temperature Box Furnace

Equipment Overview

Model: HBF52-17NO High-Temperature Box Furnace

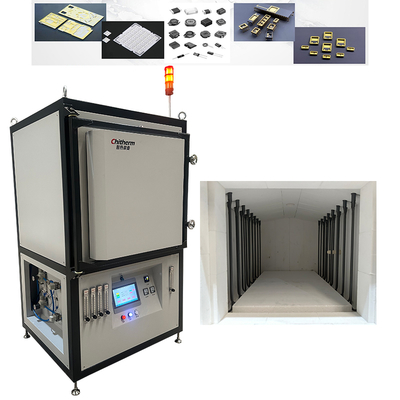

Application Fields: Suitable for high-temperature sintering processes of ITO targets, microwave ferrites, magnetic materials, electronic components, ceramic filters, etc. Supports air/oxygen atmosphere environments.

Core Technology & Configuration

Parameter	Specification
Rated/Max Temperature	1650°C (rated) / 1700°C (peak)

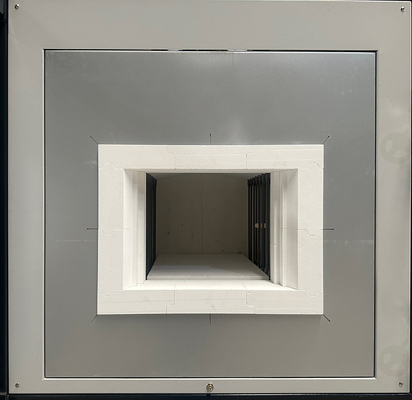

Effective Chamber Size	350×300×500mm (W×H×D)

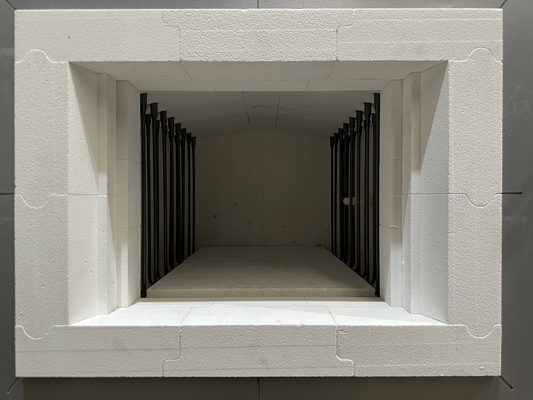

Heating Element	U-shaped silicon molybdenum rods
Temperature Control Performance	Stability: ±1°C (PID auto-tuning) Uniformity: ±5°C (tested at 1650°C for 2 hours, empty furnace)
Temperature Sensor	Type B thermocouple (single-point control at side center)

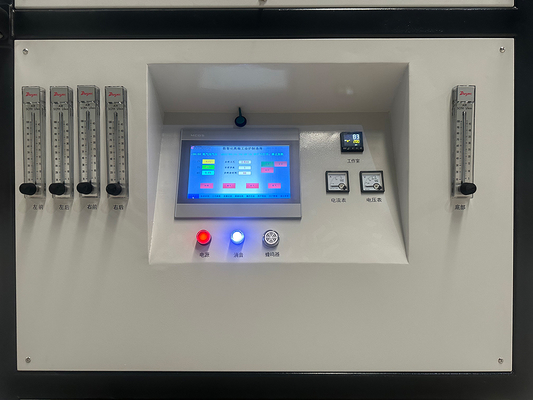

Temperature Control Program	4×16 programmable segments
Atmosphere System	Supports air/oxygen, top automatic chimney (with cover)
Safety Protection	Over-temperature and thermocouple failure alarms with sound/light, over-temperature power cutoff
Power Parameters	Max Heating Power: 25kW Empty Furnace Holding Power: ≤10kW Heating Rate: RT->1200°C: ≤5°C/min; 1200->1700°C: ≤2°C/min
Surface Temperature Rise	≤40°C
Equipment Weight	≈950kg
Dimensions	1620×1960×1220mm (W×H×D)
Color	Light gray

Operating Environment Requirements

Environmental Conditions:

Temperature: 0～40°C
Humidity: ≤80%RH
No corrosive gases or strong airflow disturbances

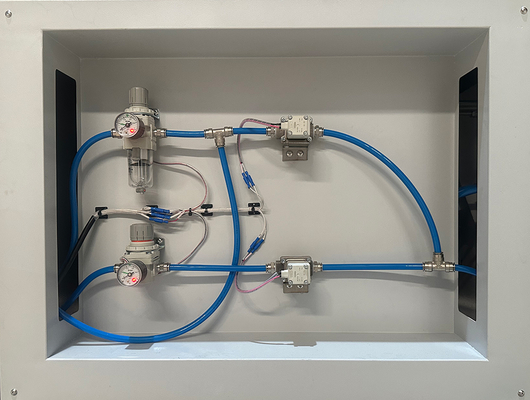

Gas Supply Requirements:

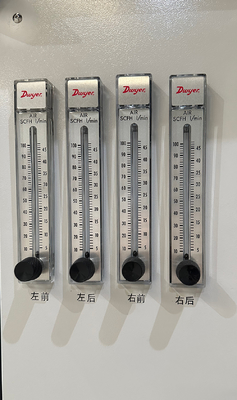

Clean, dry compressed air: 0.2～0.4MPa, consumption 2～6m³/h
High-purity oxygen: same pressure range, consumption 2～6m³/h

Ventilation System: Must connect to user exhaust system with extraction capacity >10m³/h (non-contact connection)

Floor Requirements: Level, vibration-free, load-bearing ≥300kg/m²

Electrical Conditions: 3-phase 5-wire system, capacity ≥34KVA, voltage 220/380V, frequency 50Hz

Installation Space: Minimum area: 2000×3000×1500mm (W×H×D), recommended space >3m²

Precautions

Heating rates must strictly follow parameter settings to avoid thermal shock affecting equipment lifespan
Atmosphere Control: Ensure clean pipelines when switching between oxygen/air to avoid chamber contamination
Maintenance Advice: Regularly inspect thermocouples, heating elements, and exhaust systems to ensure safe operation

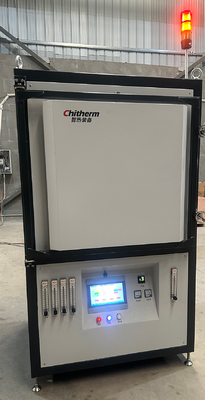

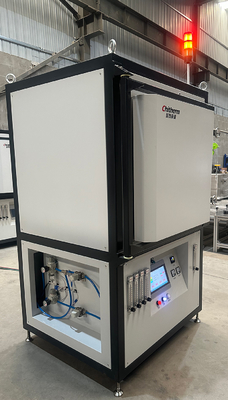

Product Images

Delivery List

Item	Note	QTY
Basic Compositions	Furnace	1 PC
Certificates of Inspection	Furnace and major purchased components	1 Set
Technical Documents	Furnace specifications, technical documents of major purchased components, etc	1 Set
Key Parts	Heating Elements (MoSi2)	1 Set
Thermocouple	THERMOWAY, B Type	1 PC
Temperature Controller	CHINO	1 Set
Monitor	Proface 10" touch screen	1 Set
Spares	Heating Elements (MoSi2)	1 PC
