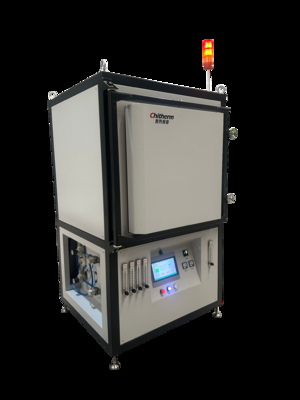

950kg Safety Protections High-Temperature Box Furnace
Basic Equipment Information
Model:
HBF52-17NO High-Temperature Box Furnace
Application Fields:
High-temperature sintering processes for ITO targets, microwave ferrites, magnetic materials, electronic components, ceramic filters, and similar materials.
Core Technology & Performance Parameters
Temperature Control:
- Rated Temperature: 1650°C
- Max Temperature: 1700°C
- Temperature Stability: ±1°C (PID auto-tuning)
- Temperature Uniformity: ±5°C (tested at 1650°C for 2 hours, empty furnace)
- Thermocouple Type: Type B (single-point measurement at side center)
- Programmable Segments: 4×16 segments
Heating System:

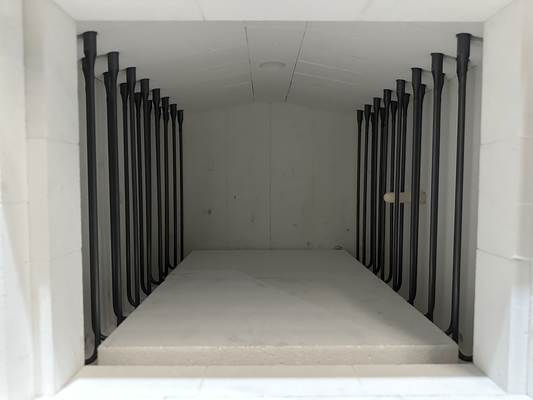

- Heating Elements: U-shaped silicon molybdenum rods
- Heating Rate: RT→1200°C ≤5°C/min, 1200→1700°C ≤2°C/min
- Max Heating Power: 25kW
- Idle Holding Power: ≤10kW
Furnace Chamber & Atmosphere:

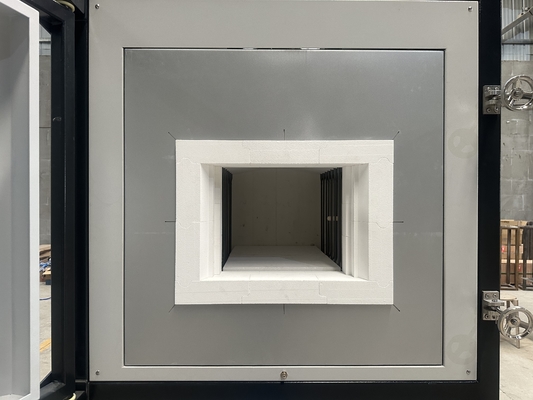

- Effective Dimensions: 350×300×500mm (W×H×D)
- Atmosphere: Air or oxygen (requires matching gas supply)
- Exhaust Chimney: Top-mounted auto-opening/closing design
Safety Protections:
- Over-temperature & thermocouple failure alarm (audible/visual)
- Over-temperature power cutoff
Other Configurations:
- Surface Temperature Rise: ≤40°C
- Weight: ~950kg
- Dimensions: 1620×1960×1220mm (W×H×D)
- Color: Light gray
Operating Conditions
Environmental Requirements:
- Temperature: 0-40°C
- Humidity: ≤80%RH
- No corrosive gases/strong air currents
Gas Supply Requirements:
- Clean dry compressed air: 0.2-0.4MPa, 2-6m³/h
- High-purity oxygen: Same parameters
Installation Requirements:
- Floor: Level, vibration-free, load-bearing >300kg/m²
- Power: 3-phase 5-wire, ≥34KVA, 220/380V 50Hz
- Space: 2000×3000×1500mm (recommended area >3m²)
Key Precautions
- Uniformity based on empty furnace tests; verify parameters after loading
- Program stepwise heating/cooling to avoid equipment damage
- Set over-temperature alarms per process requirements
- Strictly prohibit oils/organic solvents in oxygen environments
- Regularly inspect silicon molybdenum rods (e.g., cracks/resistance changes)
- Test chimney auto-switch periodically to prevent vent blockage
Delivery List
| Item | Note | QTY |
| Basic Compositions | Furnace | 1 PC |
| Certificates of Inspection | Furnace and major purchased components | 1 Set |
| Technical Documents | Furnace specifications, technical documents of major purchased components | 1 Set |
| Key Parts | Heating Elements (MoSi2) | 1 Set |
| Thermocouple | THERMOWAY, B Type | 1 PC |
| Temperature Controller | CHINO | 1 Set |

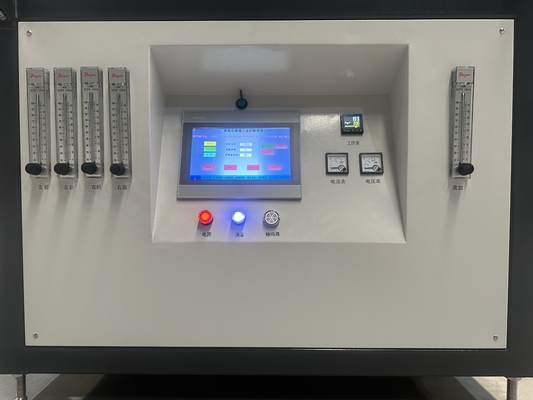

| Monitor | Proface 10" touch screen | 1 Set |
| Spares | Heating Elements (MoSi2) | 1 PC |

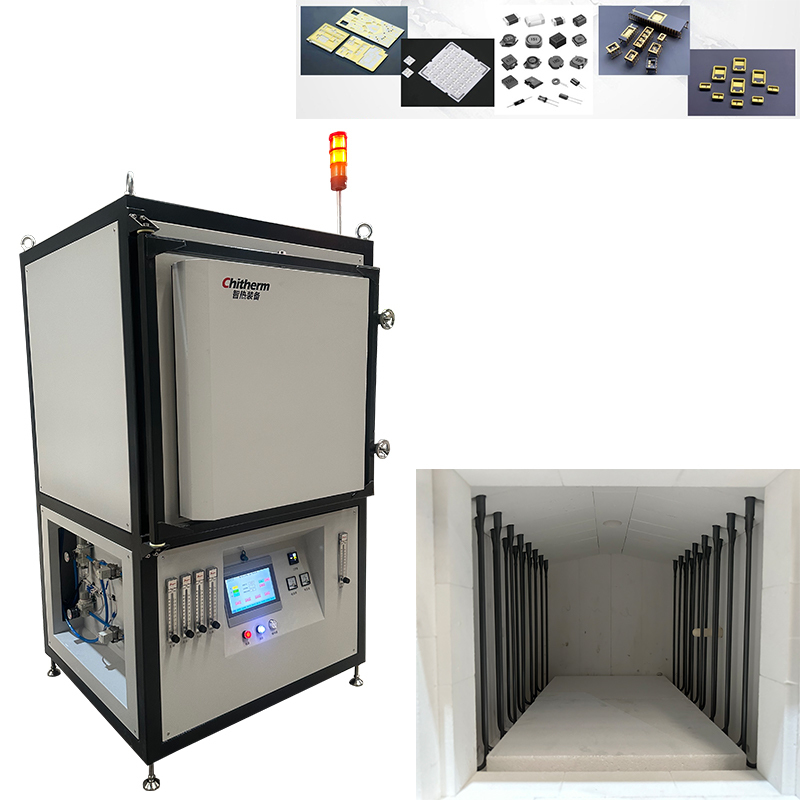

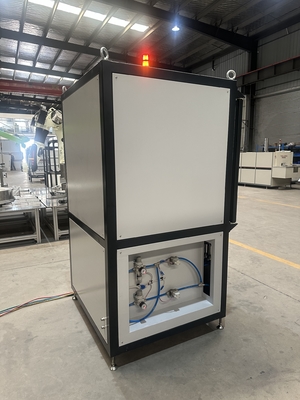

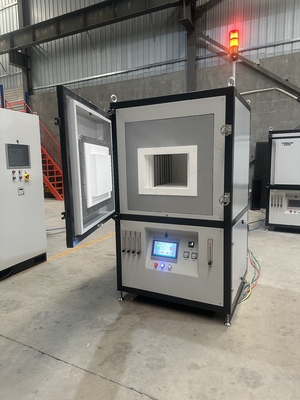

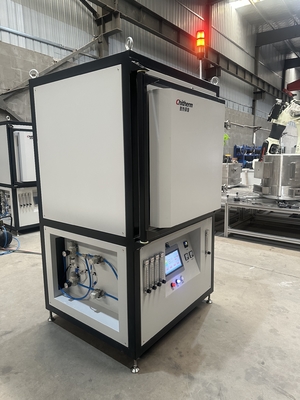

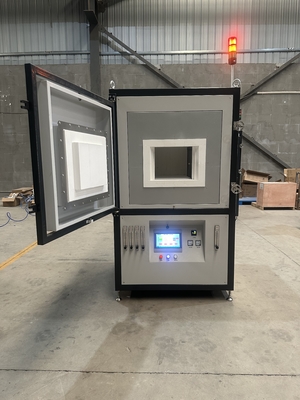

Product Images
