25kW Safe Protection High-Temperature Box Furnace For Electronic Components

Large Image : 25kW Safe Protection High-Temperature Box Furnace For Electronic Components

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF52-17O

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Specification 177021501250mm(WHD)Wooden Packaging
Delivery Time:	90 work days
Payment Terms:	T/T,L/C
Supply Ability:	50 Sets/Year

Contact Now

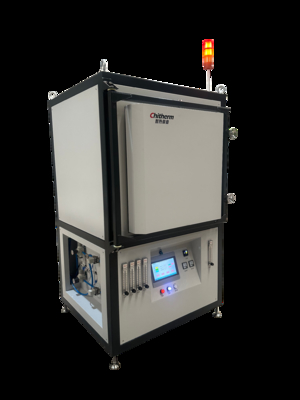

25kW Safe Protection High-Temperature Box Furnace For Electronic Components

Description

Highlight:

25kW High-Temperature Box Furnace

Safe Protection High-Temperature Box

Box Furnace For Electronic Components

HBF52-17O High-Temperature Box Furnace with 350×300×500mm Chamber

Key Applications

High-temperature sintering for ITO targets and microwave ferrites

Processing of magnetic materials and electronic components

Ceramic filter manufacturing and other advanced material applications

Performance Specifications

Rated Temperature	1650°C
Maximum Temperature	1700°C
Temperature Stability	±1°C (PID auto-tuning)
Temperature Uniformity	±5°C at 1650°C

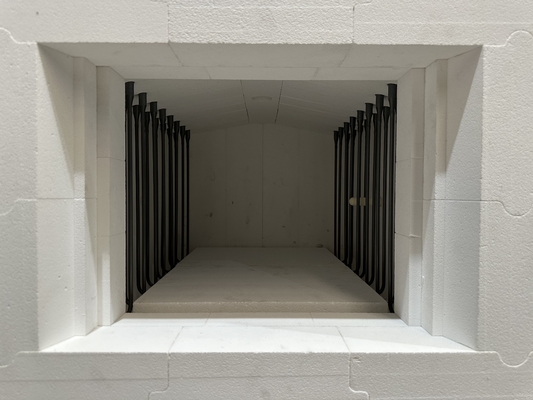

Heating Elements	U-shaped silicon molybdenum rods
Maximum Power	25kW

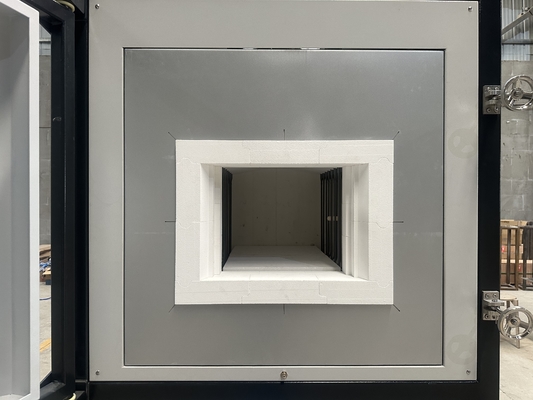

Effective Chamber Size	350×300×500mm (W×H×D)

Heating Performance

Heating Rate: ≤5°C/min (RT to 1200°C)

Heating Rate: ≤2°C/min (1200°C to 1700°C)

Surface Temperature Rise: ≤40°C

Safety Features

Over-temperature protection with automatic power cutoff

Thermocouple failure detection

Audible and visual alarm system

Physical Parameters

Dimensions	1620×1960×1220mm (W×H×D)
Weight	~950kg
Color	Light gray

Standard Delivery Contents

Component	Specification	Quantity
Furnace Unit	Complete assembly	1 PC
Heating Elements	MoSi2	1 Set
Thermocouple	THERMOWAY, B Type	1 PC
Temperature Controller	CHINO	1 Set

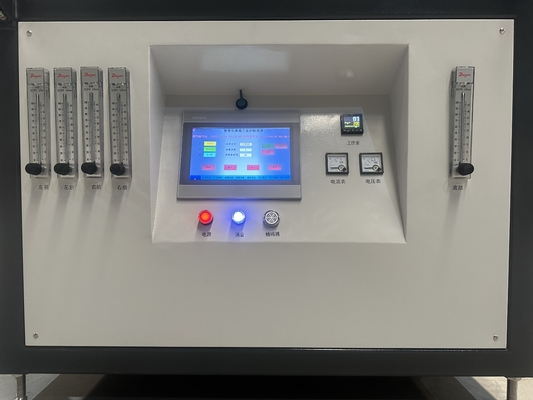

Monitor	Proface 10" touch screen	1 Set

About Hefei Chitherm Equipment Co., Ltd.

Specializing in the research, development, and manufacturing of high-quality industrial and laboratory furnaces for advanced material processing. Our product range includes bell furnaces, box furnaces, vacuum furnaces, and specialized thermal processing solutions for industries including electronics, ceramics, and new energy applications.

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and specialized thermal processing equipment for industrial applications.

What pre-sales services does Chitherm provide?

Our team offers expert consultation and customized solutions to help select the optimal equipment for your specific thermal processing requirements.

What are Chitherm's core strengths?

As a high-tech enterprise with patented technologies, we combine R&D expertise with manufacturing excellence to deliver superior thermal processing solutions.
