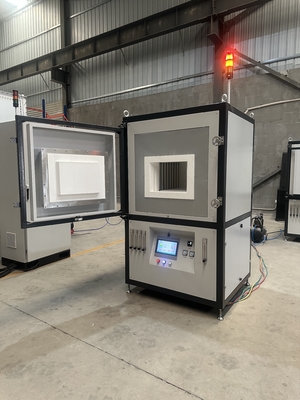

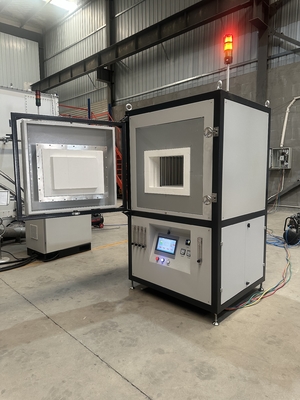

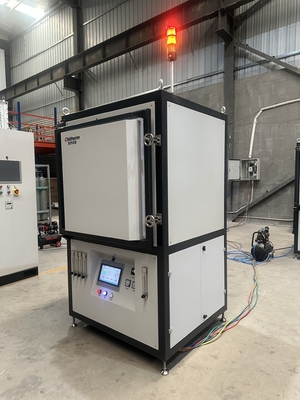

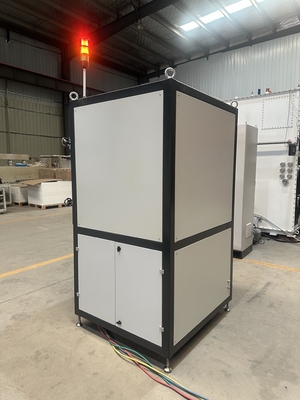

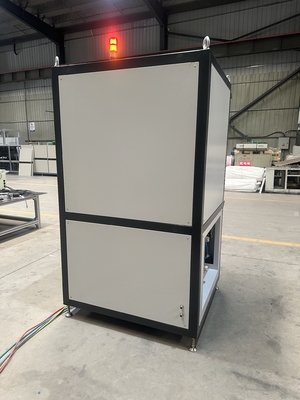

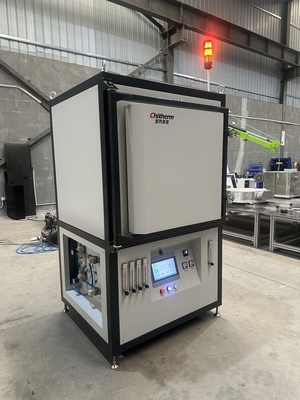

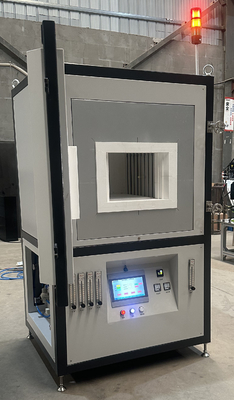

HBF52-17NO Configuration Software High Temperature Box Furnace User-friendly High Temperature Box Furnace

Overall dimensions: 1130×1945×1149 mm (W×H×D)

Effective heating zone dimensions: 350×300×500 mm (W×H×D)

Rated temperature: 1650°C

Maximum temperature: 1700°C

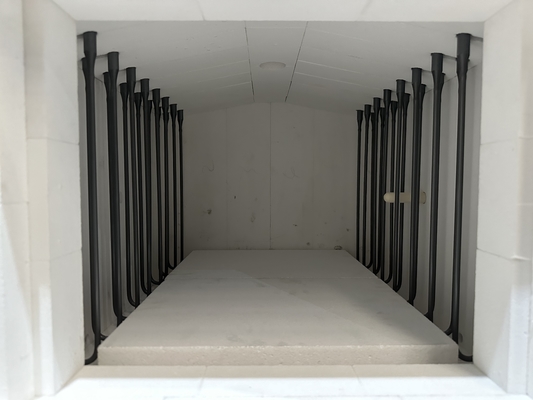

Heating element: U-shaped silicon molybdenum rods

Number of temperature zones: 1

Maximum heating power: ≤25 kW

Working atmosphere: Air or oxygen

Cooling method: Natural furnace cooling

Power supply: ≥34 kVA, three-phase five-wire (220V/380V, 50Hz)

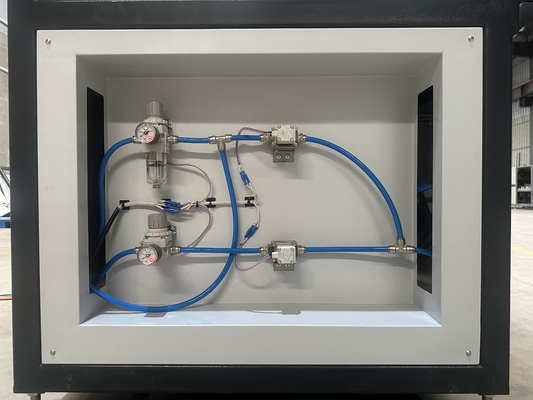

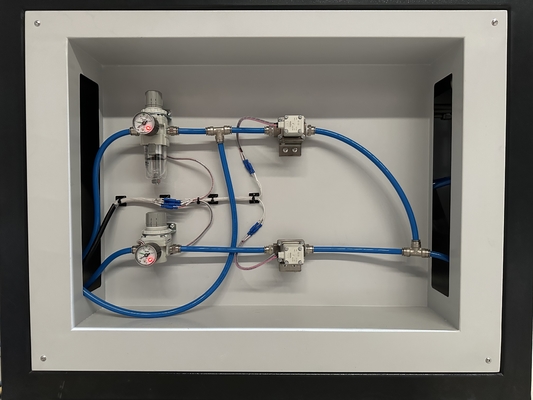

Gas supply requirements:

• Clean, dry, oil-free compressed air
• High-purity oxygen (consumption: 2~6 m³/h)

Upper computer: MCGS touchscreen (configuration software, user-friendly interface)

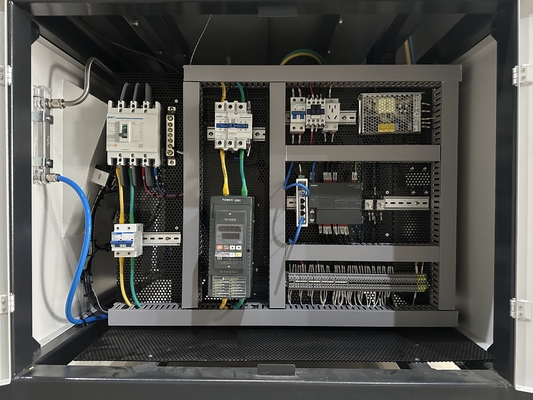

Lower computer: Azbil C1A series temperature controller + Siemens PLC

Features: Real-time data acquisition and parameter transmission, high stability, suitable for long-term continuous operation.

Indoor installation, ambient temperature: 0°C to 40°C

No flammable, corrosive gases, or vapors.

Floor area: ≥5 m²

Working space: Length ≥2.5 m, width ≥2 m, height ≥3 m

The foundation must be sturdy and level; total equipment weight is approximately 850 kg.

Dedicated three-phase five-wire power line (380±10% V, 50±2% Hz)

Avoid sharing circuits with high-power equipment (e.g., welding machines, machine tools).

Must be reliably grounded.

Inlet gas pressure: 0.2-0.4 MPa.

• Safety Operation: High-temperature equipment must be operated strictly according to procedures to avoid burns or electrical hazards.
• Maintenance: Regularly inspect heating elements, gas supply pipelines, and control system status.
• Environmental Adaptation: Ensure good ventilation to prevent heat accumulation from affecting equipment lifespan.
