1650℃ High-Temperature Box Furnace With Advanced Control System For Accurate Temperature Control

Large Image : 1650℃ High-Temperature Box Furnace With Advanced Control System For Accurate Temperature Control

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF52-17O

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Specification 177021501250mm(WHD)Wooden Packaging
Delivery Time:	90 work days
Payment Terms:	T/T,L/C
Supply Ability:	50 Sets/Year

Contact Now

1650℃ High-Temperature Box Furnace With Advanced Control System For Accurate Temperature Control

Description

Highlight:

Advanced Control System Box Furnace

Accurate Temperature Control Box Furnace

1650℃ High-Temperature Box Furnace

1650℃ High-Temperature Box Furnace With Advanced Control System For Accurate Temperature Control

Core Parameters

Dimensions: Overall: 1130×1945×1149 mm (W×H×D); Heating zone: 350×300×500 mm (W×H×D)

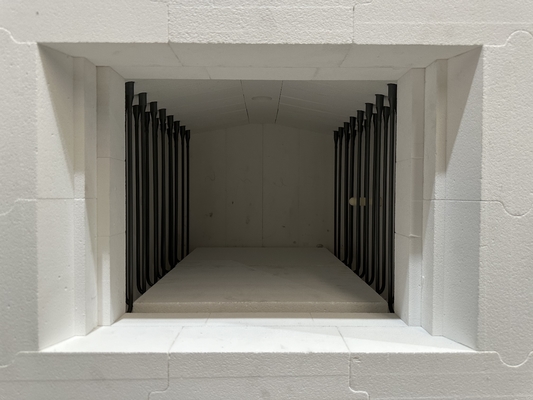

Temperature Performance: Rated: 1650°C; Maximum: 1700°C; Heating element: U-shaped molybdenum disilicide rods
Power & Electrical Supply: ≤25kW; Three-phase five-wire system (220V/380V, 50Hz); Dedicated power supply ≥34kVA required
Atmosphere & Cooling: Air or oxygen (clean, dry, oil-free); Oxygen consumption: 2~6 m³/h; Natural cooling

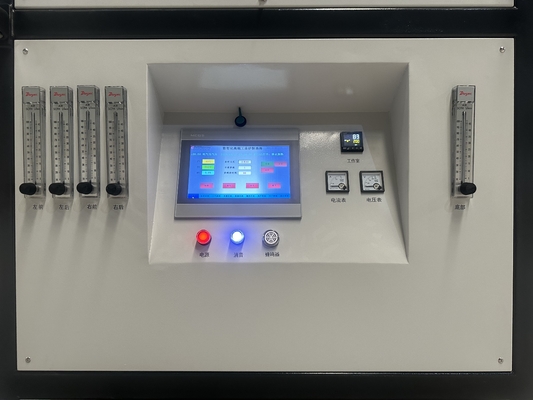

Control System: MCGS touchscreen + Azbil C1A temperature controller + Siemens PLC; Real-time temperature monitoring

Installation & Usage Conditions

Environmental Requirements: Indoor installation (0~40°C); No flammable or corrosive gases
Space Requirements: Floor area ≥5㎡; Working area: length ≥2.5m, width ≥2m, height ≥3m; Total weight ≈850kg
Power & Grounding: Dedicated three-phase five-wire power supply (380V±10%, 50Hz±2%); Reliable grounding required
Gas Supply Requirements: Inlet pressure: 0.2~0.4 MPa; Compressed air must be clean, dry, and oil-free

Precautions

Safety: Proper grounding required; Operators must wear protective gear
Maintenance: Regular inspection of heating elements, temperature control system, and gas circuit sealing
Applications: Suitable for high-temperature processes like material sintering and heat treatment

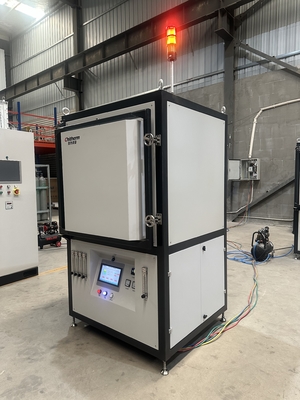

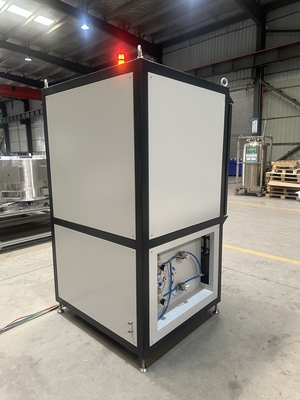

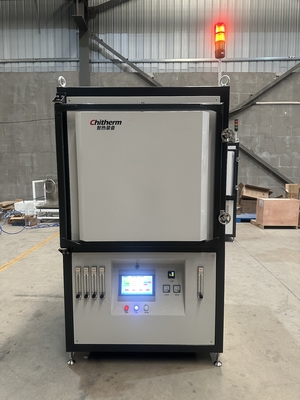

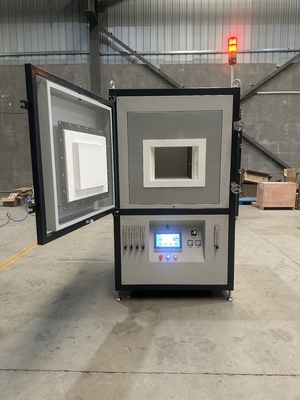

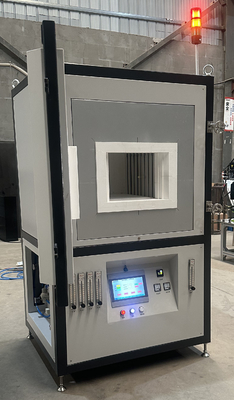

Product Images

Delivery List

Item	Note	QTY
Basic Compositions
Furnace		1 PC
Certificates of Inspection	Furnace and major purchased components	1 Set
Technical Documents	Furnace specifications, technical documents of major purchased components, etc	1 Set
Key Parts
Heating Elements	MoSi2	1 Set
Thermocouple	THERMOWAY, B Type	1 PC
Temperature Controller	CHINO	1 Set
Monitor	Proface 10" touch screen	1 Set
Spares
Heating Elements	MoSi2	1 PC

Certifications

Packaging & Shipping

Company Profile

Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces.

Our product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics.

Frequently Asked Questions

What products does Chitherm offer?

We provide customers with high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.

What pre-sales services does Chitherm provide?

We offer timely consultation services to help customers select the most suitable products, along with highly customizable solutions to meet your specific requirements.

What are Chitherm's core strengths?

As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
