850kg High Temperature Box Furnace MCGS Touchscreen High Temperature Box Furnace

Large Image : 850kg High Temperature Box Furnace MCGS Touchscreen High Temperature Box Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF52-17O

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	Specification 177021501250mm(WHD)Wooden Packaging
Delivery Time:	90 work days
Payment Terms:	T/T,L/C
Supply Ability:	50 Sets/Year

Contact Now

850kg High Temperature Box Furnace MCGS Touchscreen High Temperature Box Furnace

Description

Highlight:

850kg High Temperature Box Furnace

MCGS Touchscreen High Temperature Box Furnace

850kg High Temperature Box Furnace MCGS Touchscreen High Temperature Box Furnace

Technical Specifications

Dimensions

Overall dimensions: 1130×1945×1149 mm (W×H×D)
Effective heating zone dimensions: 350×300×500 mm (W×H×D)

Temperature Performance

Rated temperature: 1650°C
Maximum temperature: 1700°C

Heating System

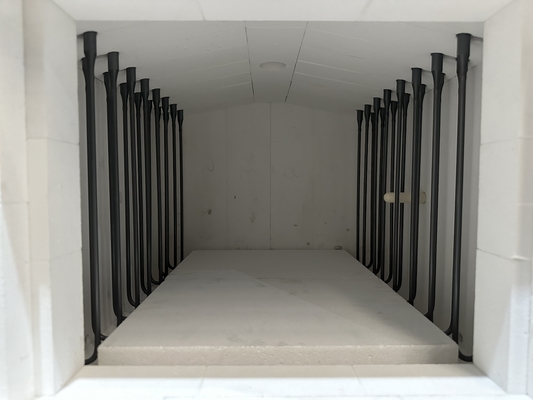

Heating elements: U-shaped silicon molybdenum rods
Number of temperature zones: 1
Maximum heating power: ≤25 kW

Operating Environment

Working atmosphere: Air or oxygen
Cooling method: Natural cooling with the furnace

Power Requirements

Power supply: ≥34 kVA, three-phase five-wire system (220V/380V, 50Hz)

A dedicated power line is required; avoid sharing circuits with high-power equipment (e.g., welding machines).

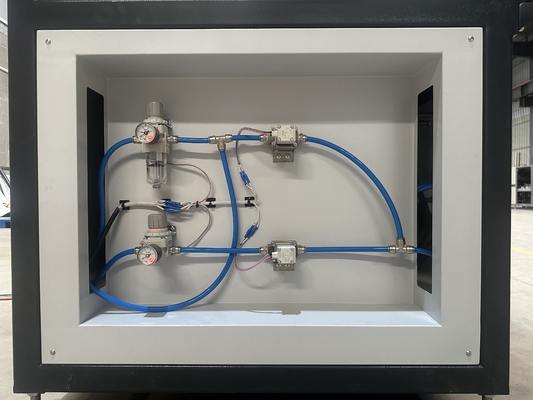

Gas Supply Requirements

Air: Clean, dry, oil-free compressed air
Oxygen: High-purity oxygen, consumption rate 2~6 m³/h

Control System

Upper computer: MCGS touchscreen (configuration software, user-friendly interface)
Lower computer: Azbil C1A series temperature controller + Siemens PLC
Features: High real-time performance, excellent stability, supports temperature data acquisition and parameter settings

Installation Requirements

Environmental Requirements

Installation location: Indoors, ambient temperature 0°C-40°C
Prohibited environments: No flammable, corrosive gases, or vapors

Space Requirements

Floor area: ≥5 m²
Working space: Length ≥2.5 m, width ≥2 m, height ≥3 m
Foundation: Sturdy and level
Equipment weight: Approx. 850 kg

Power and Grounding

Must be reliably grounded, using a dedicated three-phase five-wire power supply (380±10%V, 50±2%Hz)

Gas Supply Pressure

Inlet pressure: 0.2-0.4 MPa

Safety & Maintenance

Safety: High-temperature equipment must be properly grounded to prevent electrical hazards; operators must wear protective gear.

Maintenance: Regularly inspect heating elements, gas supply pipelines, and control system status
Atmosphere Control: Ensure oxygen purity when in use to avoid contamination or explosion risks

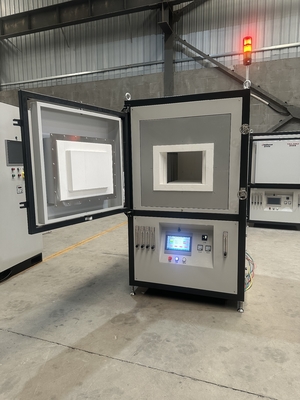

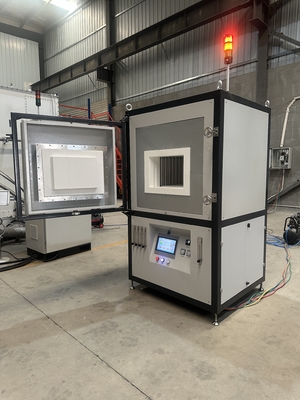

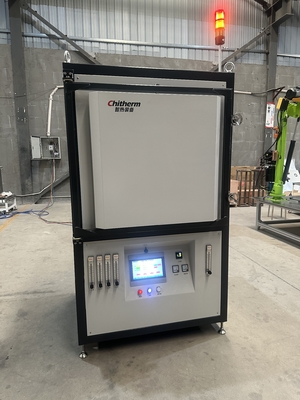

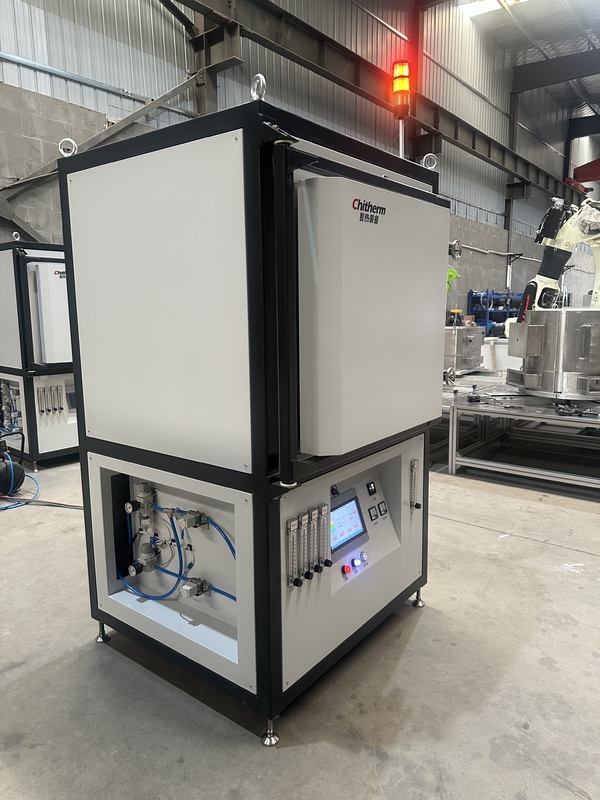

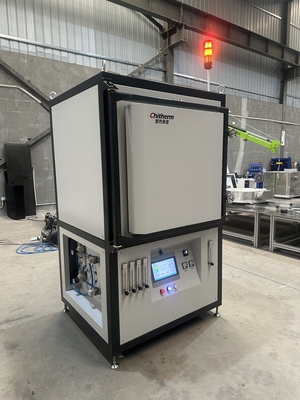

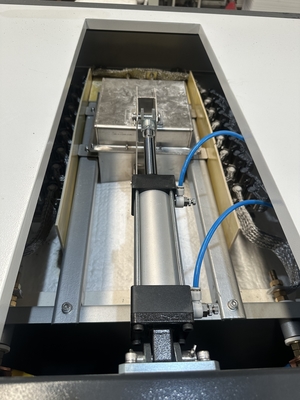

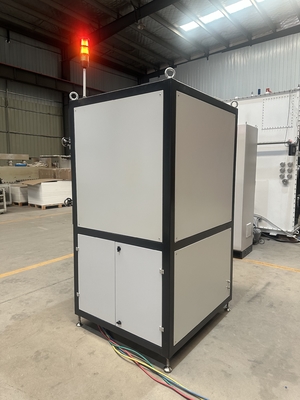

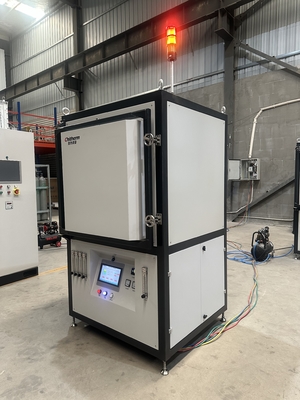

Product Images

Delivery Contents

Item	Note	QTY
Basic Compositions
Furnace		1 PC
Certificates of Inspection	Furnace and major purchased components	1 Set
Technical Documents	Furnace specifications, technical documents of major purchased components, etc	1 Set
Key Parts
Heating Elements	MoSi2	1 Set
Thermocouple	THERMOWAY, B Type	1 PC
Temperature Controller	CHINO	1 Set
Monitor	Proface 10" touch screen	1 Set
Spares
Heating Elements	MoSi2	1 PC
