B-Type Phase Angle Control Elevator Furnace For Magnetic Materials

Large Image : B-Type Phase Angle Control Elevator Furnace For Magnetic Materials

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Bf260-16

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

B-Type Phase Angle Control Elevator Furnace For Magnetic Materials

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Air	Effective Chamber Dimensions:	720500720mm(DWH)
Transport Package:	Wooden Packaging	Specification:	195036003100mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	Phase Angle Control Elevator Furnace , B-Type Elevator Furnace , Elevator Furnace For Magnetic Materials

BF260-16 Type High-Temperature Bell Jar Furnace

Product Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Air
Effective Chamber Dimensions	720500720mm (DWH)
Transport Package	Wooden Packaging
Specification	195036003100mm (WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Product Description

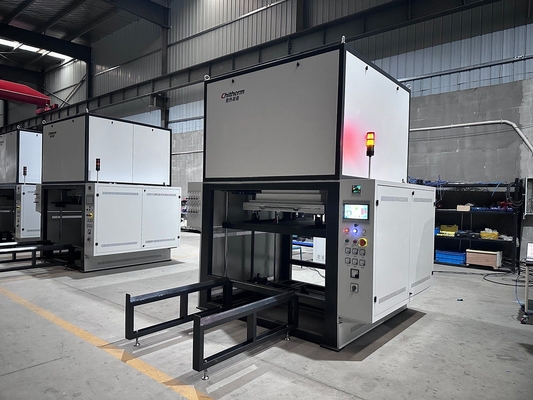

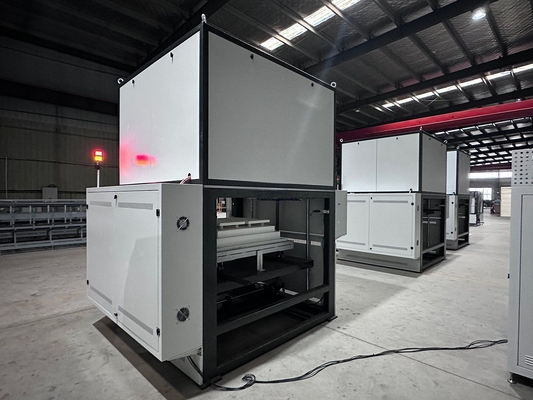

Electric Chitherm BF260-16 High Temperature Bell Furnace designed for air atmosphere operation with electric heating elements.

Applications

Adhesive sintering process for zirconia ceramics
Processing of magnetic materials
Manufacturing of electronic ceramic components

Technical Specifications

Rated Temperature: 1500°C
Maximum Temperature: 1600°C
Effective Dimensions: 720×500×720mm (D×W×H)

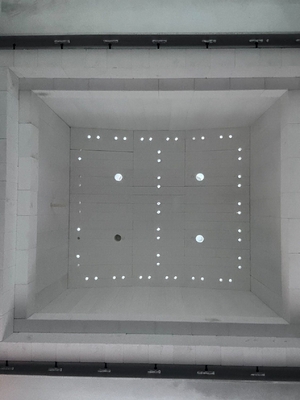

Heating Method: MoSi2 heating elements
Thermocouple: B-Type
Temperature Control: 1 Point
Temperature Accuracy: ±1°C (flat temperature insulation)

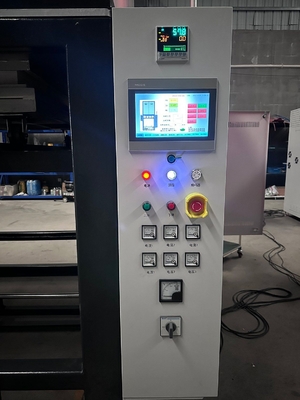

Control System: Japanese Daiwa Chino Programmable Controller with PID auto-tuning
Temperature Uniformity: ±5°C (empty furnace test at 1500°C for 2 hours)
Maximum Heating Power: 85kW
Insulation Power: ≤40kW
Program Control: SCR Control Module
Lifting Mechanism: Lead Screw Drive Elevation System
Control Method: Phase Angle Control
Operating Atmosphere: Air
Exhaust System: Top-mounted exhaust stack
Safety Features: Audible & visual alarms for over-temperature, motor overload, and over-travel conditions
External Dimensions: 1950×3600×3100mm (D×W×H) (control cabinet not included)
Color: Light gray

Standard Delivery Contents

Item	Description	Quantity
Basic Components	Furnace	1 SET
Inspection Certificates	Certificates of major outsourced components	1 SET
Technical Documents	Instructions and technical documents	1 SET
Control Cabinet	1000×2000×600mm (W×H×D)	1 SET
Key Components	Silicon molybdenum rod	1 SET
Thermocouple	B-Type	1 SET
Temperature Controller	Japanese Daiwa Chino	1 SET
Spare Parts	Silicon molybdenum rod heating element	1 PC

Operating Conditions

Environment: 0-40°C, humidity ≤80%RH, no corrosive gas or strong airflow
Atmosphere: Dry, clean, oil-free compressed air (0.2-0.4MPa, 10-30 m³/h)
Ventilation: Non-contact access to user pumping system (>30 m³/h capacity)
Ground: Horizontal, minimal vibration, load-bearing >500 kg/m²
Power: >120kVA, 3-phase 5-line (220/380V, 50Hz)
Installation Space: 4000×3500×4000mm (D×W×H), area >14m²
