Industrial Electric SCR Control High-temperature Bell Furnace Elevator Furnace

Large Image : Industrial Electric SCR Control High-temperature Bell Furnace Elevator Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	Bf260-16

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now

Industrial Electric SCR Control High-temperature Bell Furnace Elevator Furnace

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Ceramic Sintering	Fuel:	Electric
Atmosphere:	Air	Effective Chamber Dimensions:	720500720mm(DWH)
Transport Package:	Wooden Packaging	Specification:	195036003100mm(WHD)
Trademark:	Chitherm	Origin:	China
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Customization:	Available	Certification:	ISO
Place Style:	Vertical
Highlight:	SCR Control Elevator Furnace , Electric SCR Control Bell Furnace , Industrial Electric Bell Furnace

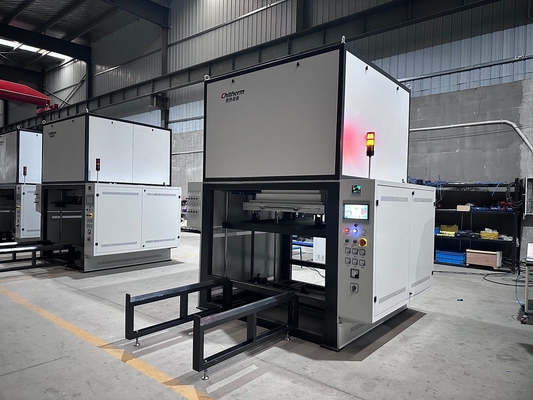

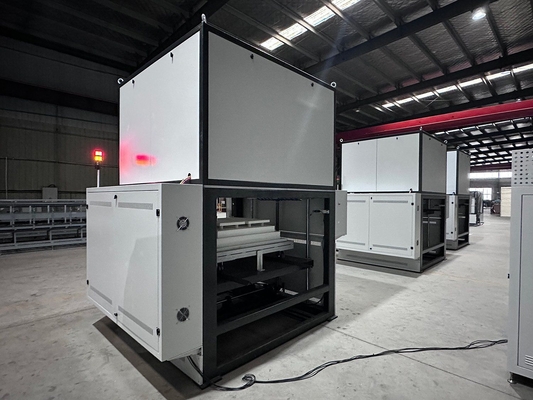

Chitherm BF260-16 Type High-Temperature Bell Jar Furnace

Product Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Air
Effective Chamber Dimensions	720500720mm (DWH)
Transport Package	Wooden Packaging
Specification	195036003100mm (WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Product Description

The Chitherm BF260-16 is a high-temperature bell furnace designed for air atmosphere applications using electric fuel. This industrial-grade furnace is engineered for precision thermal processing in demanding manufacturing environments.

Key Applications

Ideal for adhesive sintering processes of zirconia ceramics, magnetic materials, electronic ceramic components, and similar industrial applications.

Technical Specifications

Temperature Range: Rated 1500°C, Maximum 1600°C

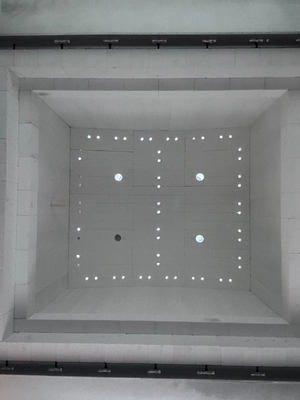

Heating Method: MoSi2 heating elements

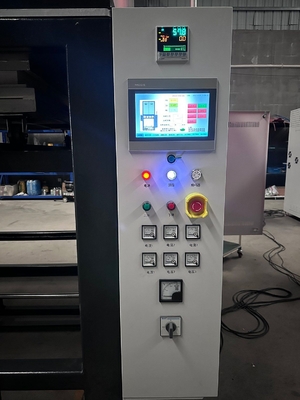

Temperature Control: Japanese Daiwa Chino Programmable Controller with PID auto-tuning
Temperature Uniformity: ±5°C (empty furnace test at 1500°C for 2 hours)
Power Requirements: Maximum 85kW heating power, ≤40kW insulation power
Control System: SCR Control Module with phase angle control
Safety Features: Comprehensive alarm system for over-temperature, motor overload, and over-travel conditions
Dimensions: 1950*3600*3100mm (W*H*D) external size

Standard Delivery Contents

Item	Description	Quantity
Basic Components	Furnace	1 SET
Inspection Certificates	Certificates of major components	1 SET
Technical Documents	Operation manuals and technical specifications	1 SET
Control Cabinet	10002000600mm (WHD)	1 SET
Key Components	Silicon molybdenum rod heating elements	1 SET
Thermocouple	B-Type	1 SET
Temperature Controller	Japanese Daiwa Chino	1 SET
Spare Parts	Silicon molybdenum rod	1 PC

Operating Requirements

Environment: 0-40°C, ≤80% RH, no corrosive gases or strong airflow

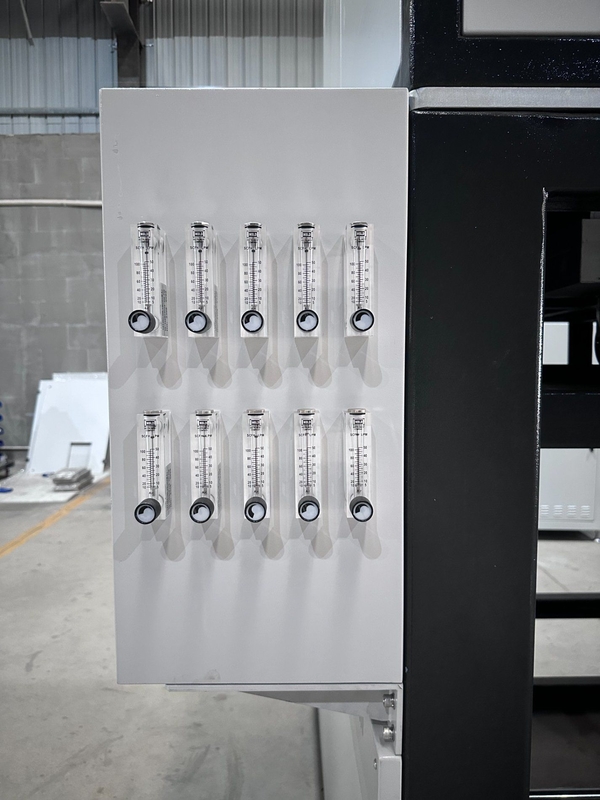

Atmosphere: Dry, clean compressed air (0.2-0.4MPa, 10-30 m³/h)
Ventilation: Minimum 30 m³/h exhaust capacity
Foundation: Level surface with >500 kg/m² load capacity
Power: >120kVA, 3-phase 5-wire (220/380V, 50Hz)
Installation Space: Minimum 4000*3500*4000mm (D*W*H) with >14m² area

About Chitherm

Hefei Chitherm Equipment Co., Ltd. specializes in advanced thermal processing equipment for industrial and laboratory applications. Our product range includes bell furnaces, box furnaces, vacuum furnaces, and specialized thermal solutions for advanced ceramics, electronic components, powder metallurgy, and new energy applications.

Frequently Asked Questions

What products does Chitherm offer?
We provide high-quality thermal processing equipment including bell furnaces, box furnaces, tube furnaces, vacuum furnaces, and specialized kilns for industrial applications.

What pre-sales services are available?
Our technical team offers comprehensive consultation services and custom solutions tailored to your specific process requirements.

What are Chitherm's core strengths?
As an integrated R&D and manufacturing enterprise, we combine patented technologies with extensive industry experience to deliver superior thermal processing solutions.
