SUS316L Customization Elevator Furnace For Ceramic Sintering

Large Image : SUS316L Customization Elevator Furnace For Ceramic Sintering

Product Details:

Contact Now

SUS316L Customization Elevator Furnace For Ceramic Sintering

Description

Model NO.:	Bf125-17	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Air
Effective Chamber Dimensions:	550500550mm(DWH)	Transport Package:	Wooden Packaging
Specification:	174027802505mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	SUS316L Customization Elevator Furnace , Elevator Furnace For Ceramic Sintering

1700º C Electric Furnace Bf125-17 Bell-Type High-Temperature Furnace

Product Specifications

Attribute	Value
Model NO.	Bf125-17
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Air
Effective Chamber Dimensions	550500550mm(DWH)
Transport Package	Wooden Packaging
Specification	174027802505mm(WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Product Description

Applications:

This high-temperature furnace is designed for electronic ceramic materials, magnetic materials, ceramic filters, and other applications requiring high temperature field uniformity or multi-species small batch production.

Technical Specifications:

Effective Chamber Size: 500×500×500mm (D×H×W)
Overall Dimensions: 1740×2780×2505mm
Temperature Range: 1600°C - 1700°C
Heating Elements: U-shaped silicon molybdenum rods (MoSi2)
Heating Zones: 1 zone
Insulation Materials: Alumina products / ceramic fiber materials
Atmosphere: Clean, dry, oil-free compressed air / oxygen
Control Points: 1 point
Temperature Controller: Dahua Chino Intelligent PID Regulator
Power Supply: 220/380V AC, 50Hz
Maximum Power: 50kW
Equipment Weight: Approx. 2000kg
Appearance Color: Light gray

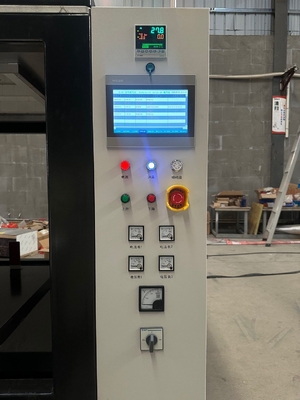

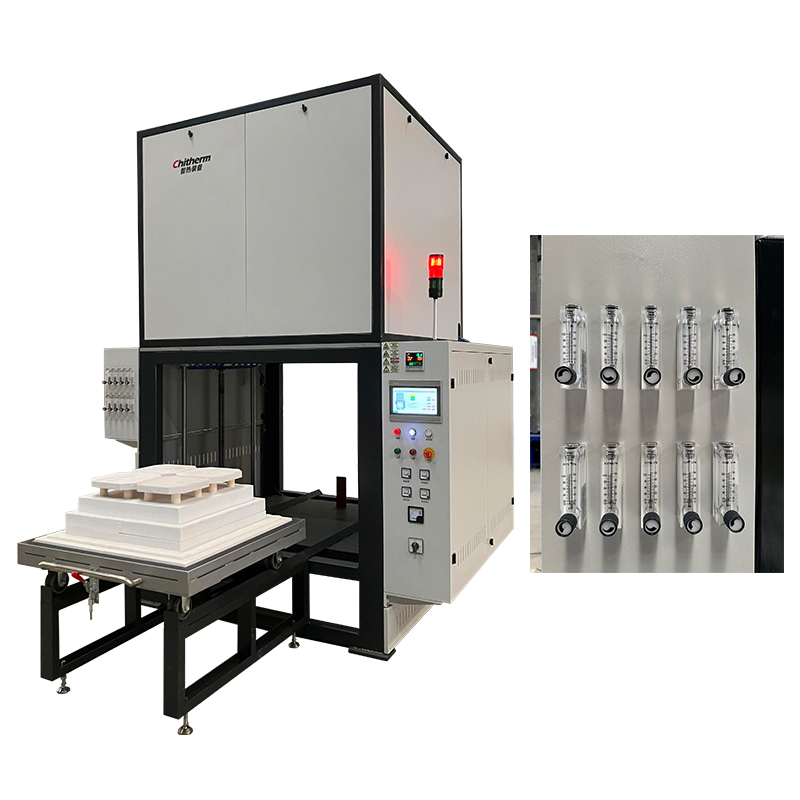

1700°C Electric Furnace Bf125-17 Bell-Type High-Temperature Furnace showing chamber and control panel

Delivery List:

Item	Note	Quantity
Basic Components	Furnace	1 SET
Inspection Certificates	Certificates of major outsourced components	1 SET
Technical Documents	Instructions, technical documents of the major outsourced parts	1 SET
Key Components	Silicon molybdenum rods (U-shaped Model MK1800, Diameter Range: 6-12mm)	1 SET
Touchscreen		1 SET
Thermocouple	R-Type	1 SET
Temperature Control Module		1 SET
Spare Parts	U-shaped silicon molybdenum heater	1 PC

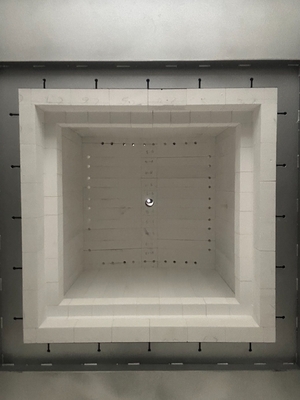

Close-up view of heating elements in the 1700°C Electric Furnace Bf125-17

Equipment Operating Conditions:

Environmental Conditions: Temperature: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance

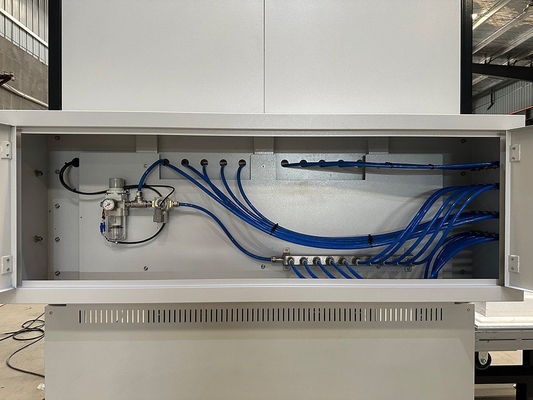

Atmosphere Conditions: Dry, clean, oil-free compressed air, working pressure of 0.2-0.4MPa, gas consumption of 10-30 m³/h
Ventilation System: Non-contact access to user pumping system, pumping capacity > 35 m³/h
Ground Requirements: Horizontal, no obvious vibration, load-bearing > 600 Kg/m²
Power Condition: Capacity > 70kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz
Installation Site: 3800mm×2650mm×3500mm(D×W×H), installation area > 12m²

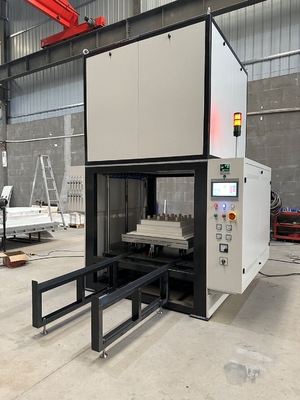

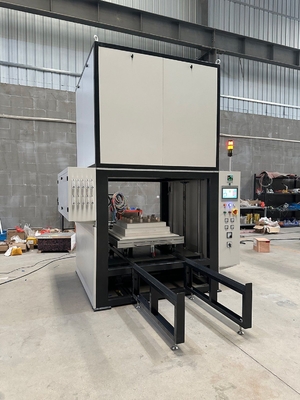

Full installation view of the 1700°C Electric Furnace Bf125-17 showing complete setup

Manufacturer Profile

Hefei Chitherm Equipment Co., Ltd. specializes in the research, development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Our product range includes bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces.

These furnaces are extensively applied in advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics. They are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.
