Bf125-17 ISO Certified High-temperature Bell Furnace Elevator Furnace For Magnetic Materials

Large Image : Bf125-17 ISO Certified High-temperature Bell Furnace Elevator Furnace For Magnetic Materials

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	BF125-17

Contact Now

Bf125-17 ISO Certified High-temperature Bell Furnace Elevator Furnace For Magnetic Materials

Description

Model NO.:	Bf125-17	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Ceramic Sintering
Fuel:	Electric	Atmosphere:	Air
Effective Chamber Dimensions:	550500550mm(DWH)	Transport Package:	Wooden Packaging
Specification:	174027802505mm(WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Supply Ability:	50 Sets/Year	Customization:	Available
Certification:	ISO	Place Style:	Vertical
Highlight:	ISO Certified Elevator Bell Furnace , Magnetic Materials Bell Furnace , Bf125-17 Elevator Bell Furnace

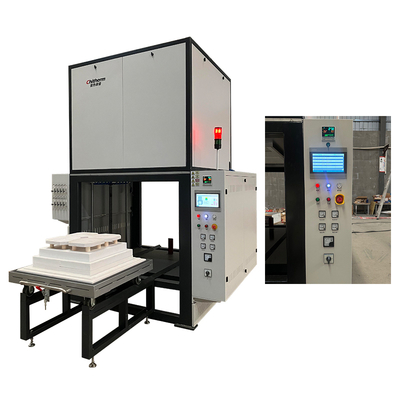

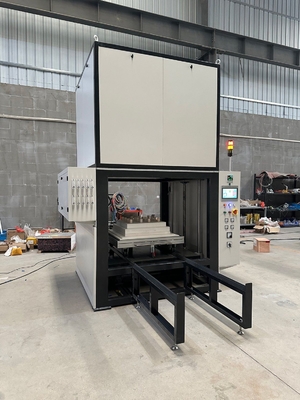

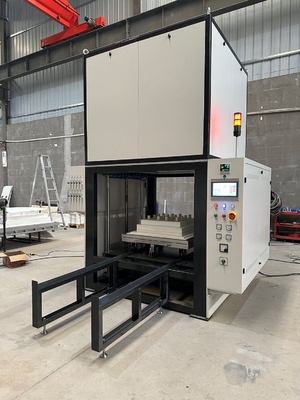

Chitherm BF125-17 High Temperature Bell Furnace

Product Specifications

Attribute	Value
Model NO.	BF125-17
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Ceramic Sintering
Fuel	Electric
Atmosphere	Air
Effective Chamber Dimensions	550×500×550mm (D×W×H)
Transport Package	Wooden Packaging
Specification	1740×2780×2505mm (W×H×D)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Supply Ability	50 Sets/Year
Customization	Available
Certification	ISO
Place Style	Vertical

Applications

This high-temperature bell furnace is designed for electronic ceramic materials, magnetic materials, ceramic filters, and other applications requiring high temperature field uniformity or multi-species small batch production.

Technical Specifications

Effective Chamber Size: 500×500×500mm (D×H×W)
Overall Dimensions: 1740×2780×2505mm
Temperature Range: 1600°C - 1700°C
Heating Elements: U-shaped silicon molybdenum rods (MoSi2)
Heating Zones: 1 zone

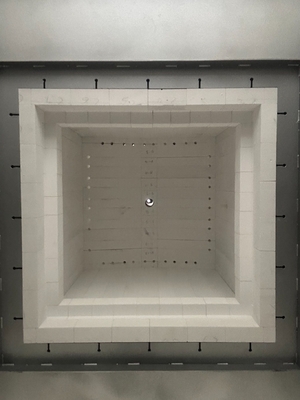

Insulation Materials: Alumina products / ceramic fiber materials
Atmosphere: Clean, dry, oil-free compressed air / oxygen
Control Points: 1 point

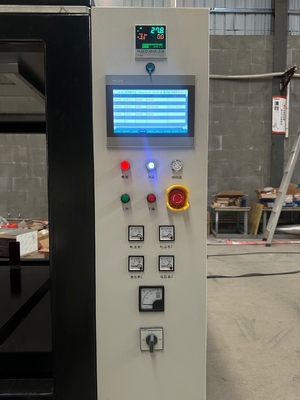

Temperature Controller: Dahua Chino Intelligent PID Regulator
Power Supply: 220/380V AC, 50Hz
Maximum Power: 50kW
Equipment Weight: Approx. 2000kg
Appearance Color: Light gray

Delivery List

Item	Note	Quantity
Basic Components	Furnace	1 SET
Inspection Certificates	Certificates of major outsourced components	1 SET
Technical Documents	Instructions, technical documents of the major outsourced parts	1 SET
Key Components	Silicon molybdenum rods (U-shaped Model MK1800, Diameter Range: 6-12mm)	1 SET
Thermocouple	R-Type	1 SET
Spare Parts	U-shaped silicon molybdenum heater	1 PC

Operating Conditions

Environmental Conditions: Temperature: 0~40°C, Humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance

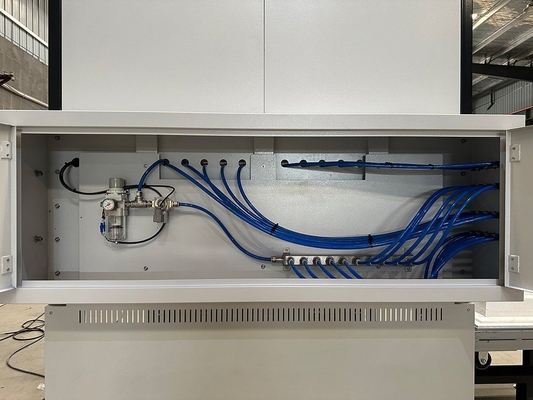

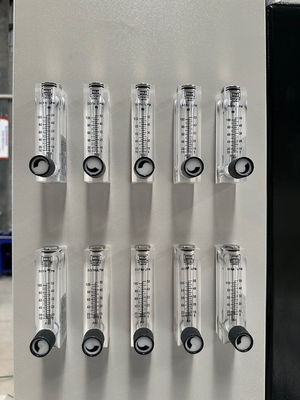

Atmosphere Conditions: Dry, clean, oil-free compressed air, working pressure of 0.2-0.4MPa, gas consumption of 10-30 m³/h
Ventilation System: Non-contact access to user pumping system, pumping capacity > 35 m³/h
Ground Requirements: Horizontal, no obvious vibration, load-bearing > 600 Kg/m²
Power Condition: Capacity > 70kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz
Installation Site: 3800×2650×3500mm (D×W×H), installation area > 12m²

About Chitherm

Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces.

Our product range includes bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces. These are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics.

Chitherm 1000°C Muffle Furnace BF216-11 LTCC Ceramic Sintering Bell Furnace

Frequently Asked Questions

What products does Chitherm offer?

We provide customers with high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.

What pre-sales services does Chitherm provide?

We offer timely consultation services to help customers select the most suitable products, along with highly customizable solutions to meet your specific requirements.

What are Chitherm's core strengths?

As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
