Steel Molding High-Temperature Box Furnace Heat Treatment Box Furnace

Large Image : Steel Molding High-Temperature Box Furnace Heat Treatment Box Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF300 - 13

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	31200
Packaging Details:	Wooden Package
Delivery Time:	60-90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now

Steel Molding High-Temperature Box Furnace Heat Treatment Box Furnace

Description

Model NO.:	HBF300 - 13	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Steel Molding
Fuel:	Electric	Effective Chamber Dimensions:	560780700mm(WHD)
Atmosphere:	Air	Rated Temperature:	1250ºC
Maximum Temperature:	1300ºC	Transport Package:	Wooden Package
Specification:	157020501830mm (WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Production Capacity:	50 Sets/Year
Highlight:	Steel Molding High-Temperature Box Furnace , Heat Treatment Box Furnace

Steel Molding High-Temperature Box Furnace HBF300-13

Product Overview

The HBF300-13 high-temperature box furnace is engineered for precision steel molding and heat treatment applications in industrial and laboratory settings. Featuring advanced silicon carbide heating elements and three-zone temperature control, this electric furnace delivers uniform heat distribution up to 1300°C with exceptional stability.

Technical Specifications

Attribute	Specification
Model Number	HBF300-13
Chamber Dimensions (W×H×D)	560×780×700mm
Effective Working Space	400×600×550mm
Temperature Range	1250°C (rated) / 1300°C (max)

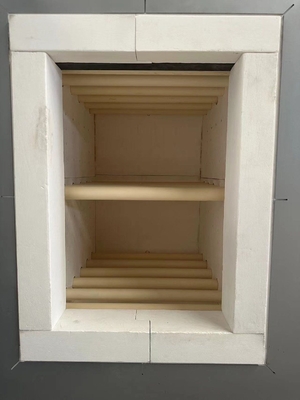

Heating Elements	Silicon carbide rods in ceramic tubes
Power Requirements	>90kVA, 3-phase 220V/380V, 50Hz
Cooling System	Natural cooling + forced blower

Key Features

Precision Temperature Control: Equipped with Yamatake control module and Type S thermocouples
Robust Construction: Industrial-grade components including Siemens PLC and Taiwan Techsil power regulator
Uniform Heating: Three-zone heating system with silicon carbide elements

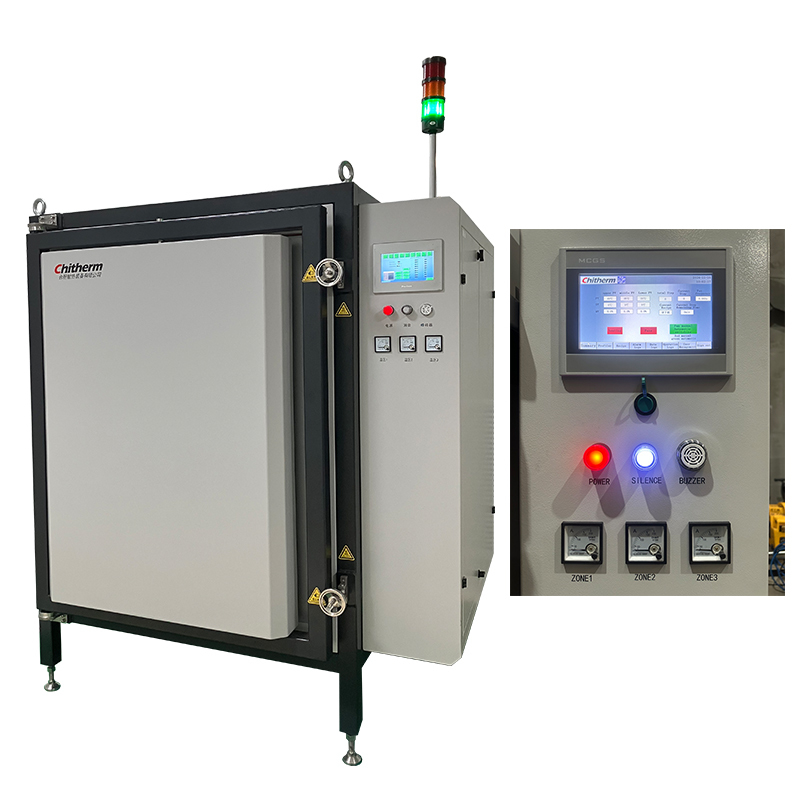

User-Friendly Interface: Touchscreen HMI for easy operation and monitoring
Safety Compliant: Designed for operation in standard industrial environments

Standard Configuration

Component	Description	Quantity
Kiln Main Unit	Complete furnace assembly	1 Unit
Temperature Control System	Yamatake module with touchscreen	1 Set
Heating Elements	Silicon carbide rods	3 Zones
Thermocouples	Type S precision sensors	3 Pieces
Spare Parts Kit	Includes 2 spare silicon carbide rods	1 Set

Installation Requirements

Space: Minimum 2800×2000×3000mm (D×W×H) with >6m² floor area
Environment: 0-40°C, ≤80% RH, corrosion-free atmosphere
Ventilation: Exhaust system with >10m³/h capacity
Electrical: Dedicated 3-phase power supply (>90kVA)

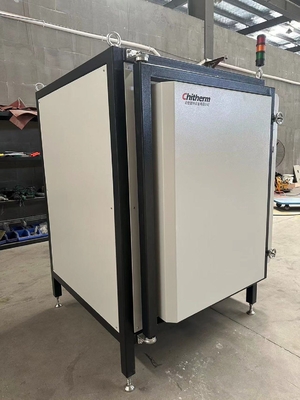

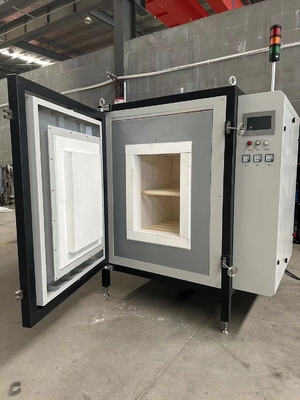

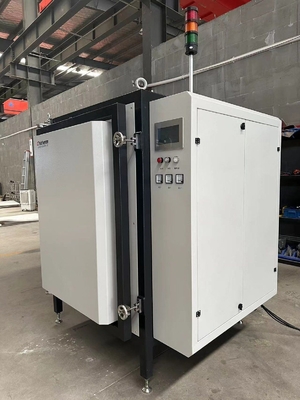

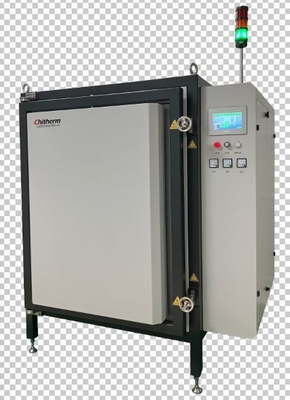

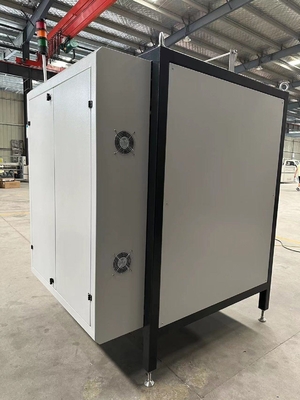

Product Images

Packaging & Shipping

The HBF300-13 furnace is securely packaged in wooden crates for international shipping. Each unit includes complete documentation including inspection certificates, technical manuals, and warranty information.

Production capacity: 50 units/year. Standard lead time: 4-6 weeks after order confirmation.
