1250ºC High-Temperature Box Furnace Uniform Temperature Box Furnace For Various Laboratories

Name: 1250ºC High-Temperature Box Furnace Uniform Temperature Box Furnace For Various Laboratories
Brand: Hefei Chitherm Equipment Co., Ltd
SKU: HBF300 - 13
Price: 31200 USD
Availability: InStock

All Products

High Temperature Box Furnace
(109)

Elevator Furnace
(77)

Hot Air Drying Oven
(58)

Atmosphere Box Furnace
(36)

Vacuum Muffle Furnace
(63)

Tube Furnace
(12)

Rotary Furnace
(4)

Waste Gas Incinerator
(4)

Continuous Annealing Furnace
(3)

Electric Muffle Furnace
(13)

Debinding Furnace
(1)

Conveyor Belt Furnace
(8)

Furnace Parts
(2)

Customer Reviews

Dear Valued Partner, Thank you for your support and trust over the past year. It is through your cooperation that we have been able to successfully achieve our goals. In the days to come, we look forward to continuing our close collaboration and creating even greater value together. — With best regards, [Chinese Academy of Sciences]

—— Chinese Academy of Sciences

I'm Online Chat Now

1250ºC High-Temperature Box Furnace Uniform Temperature Box Furnace For Various Laboratories

Large Image : 1250ºC High-Temperature Box Furnace Uniform Temperature Box Furnace For Various Laboratories

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF300 - 13

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	31200
Packaging Details:	Wooden Package
Delivery Time:	60-90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now Chat Now

1250ºC High-Temperature Box Furnace Uniform Temperature Box Furnace For Various Laboratories

Description

Model NO.:	HBF300 - 13	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Steel Molding
Fuel:	Electric	Effective Chamber Dimensions:	560780700mm(WHD)
Atmosphere:	Air	Rated Temperature:	1250ºC
Maximum Temperature:	1300ºC	Transport Package:	Wooden Package
Specification:	157020501830mm (WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Production Capacity:	50 Sets/Year
Highlight:	1250ºC High-Temperature Box Furnace , Uniform Temperature Box Furnace , Box Furnace For Various Laboratories

1250ºC High-Temperature Box Furnace Uniform Temperature Box Furnace For Various Laboratories

Product Specifications

Attribute	Value
Model NO.	HBF300 - 13
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Steel Molding
Fuel	Electric
Effective Chamber Dimensions	560780700mm(WHD)
Atmosphere	Air
Rated Temperature	1250ºC
Maximum Temperature	1300ºC
Transport Package	Wooden Package
Specification	157020501830mm (WHD)
Trademark	Chitherm
Origin	China
HS Code	8514101000
Production Capacity	50 Sets/Year

Product Overview

The HBF300-13 high-temperature box furnace is engineered for laboratory environments requiring precise temperature control up to 1300ºC. Featuring advanced silicon carbide heating elements and three-zone temperature regulation, this industrial-grade furnace delivers uniform heat distribution for material testing, heat treatment, and various high-temperature processes.

Technical Parameters

Specification	Value
External Dimensions	1540×1800×1380mm (W×H×D)

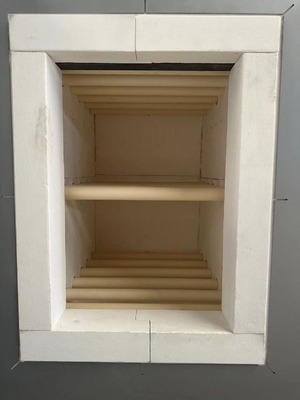

Chamber Dimensions	560×780×700mm (W×H×D)
Effective Dimensions	400×600×550mm (W×H×D)
Rated Temperature	1250ºC
Maximum Temperature	1300ºC
Heating Elements	Silicon carbide rods in ceramic tubes
Number of Heating Zones	3
Maximum Heating Power	≤70kW
Applicable Atmosphere	Air
Cooling Method	Natural cooling with the furnace
Power Supply	>90kVA, three-phase five-wire 220V/380V, 50Hz

Key Features

Precision temperature control with Type S thermocouples
Programmable logic controller (Siemens) for automated operation
Touchscreen human-machine interface for user-friendly control
Robust construction with alumina fiber insulation
Three-zone heating for uniform temperature distribution
Forced cooling system with blower fan

Standard Configuration

Kiln Main Unit (1 Unit)

Certification of Inspection (1 Set)

Technical Documentation (1 Set)

Ceramic Tube for Silicon Carbide Rod (1 Set)

Firing Plate (1 Set)

Temperature Control Module (1 Unit)

Thermocouple Type S (3 Pieces)

Touchscreen Interface (1 Unit)

Programmable Logic Controller (1 Unit)

Power Regulator (1 Set)

Blower Fan (1 Unit)

Silicon Carbide Rod Spares (2 Rods)

Operating Requirements

Environmental Conditions: Temperature 0~40ºC, humidity ≤80% RH, free of corrosive gases, and without strong airflow disturbances.

Ventilation System: Non-contact connection to exhaust system with capacity >10m³/h.

Power Requirements: >90kVA, three-phase five-wire, 220/380V, 50Hz.

Installation Space: Minimum 2800mm×2000mm×3000mm (D×W×H), area >6m².

Product Images

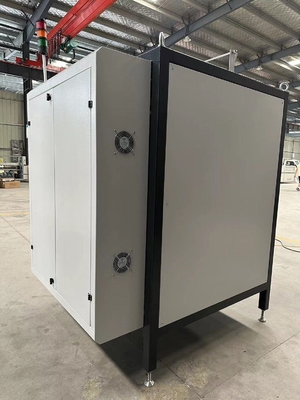

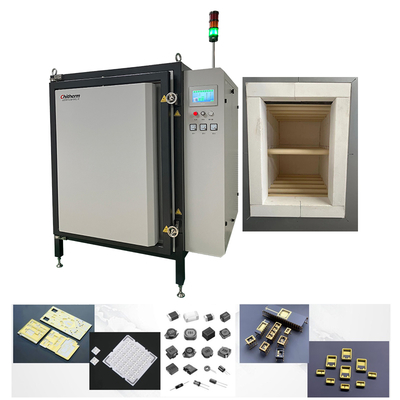

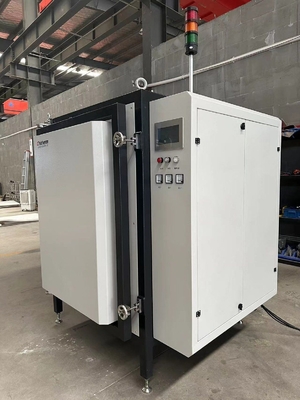

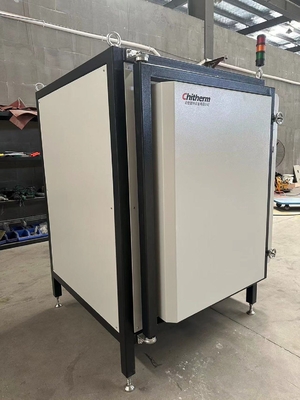

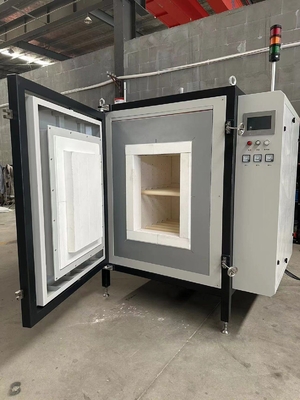

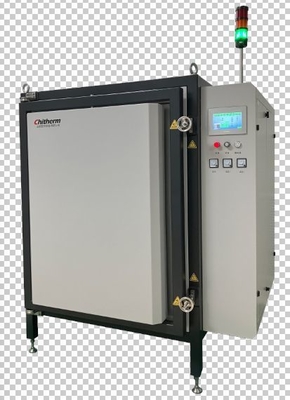

HBF300-13 High-Temperature Box Furnace with 1600°C class heating elements

Chitherm certification for 1000°C Muffle Furnace
