1300º C High Temperature Box Furnace For Steel Molding User-friendly Electric Holding Furnace

Large Image : 1300º C High Temperature Box Furnace For Steel Molding User-friendly Electric Holding Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF300 - 13

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	31200
Packaging Details:	Wooden Package
Delivery Time:	60-90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now

1300º C High Temperature Box Furnace For Steel Molding User-friendly Electric Holding Furnace

Description

Model NO.:	HBF300 - 13	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Steel Molding
Fuel:	Electric	Effective Chamber Dimensions:	560780700mm(WHD)
Atmosphere:	Air	Rated Temperature:	1250ºC
Maximum Temperature:	1300ºC	Transport Package:	Wooden Package
Specification:	157020501830mm (WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Production Capacity:	50 Sets/Year
Highlight:	1300º C High Temperature Box Furnace , Box Furnace For Steel Molding , User-friendly Electric Holding Furnace

1300°C High Temperature Box Furnace for Steel Molding

User-friendly electric holding furnace with precise temperature control up to 1300°C, ideal for industrial steel molding applications.

Product Specifications

Attribute	Value
Model NO.	HBF300 - 13
Type	Electric Holding Furnace
Effective Chamber Dimensions	560×780×700mm (W×H×D)
Rated Temperature	1250°C
Maximum Temperature	1300°C

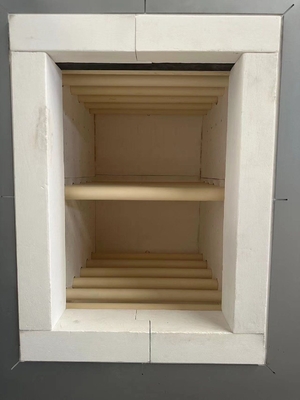

Heating Elements	Silicon carbide rods in ceramic tubes
Power Supply	Three-phase five-wire 220V/380V, 50Hz

Product Overview

The HBF300-13 high-temperature box furnace is designed for demanding laboratory and industrial applications. Featuring advanced heating elements and uniform temperature distribution, this furnace delivers reliable performance for material testing, heat treatment, and other high-temperature processes.

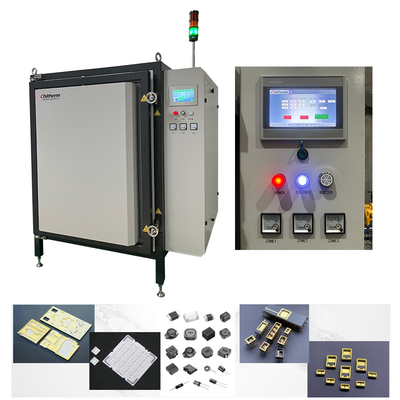

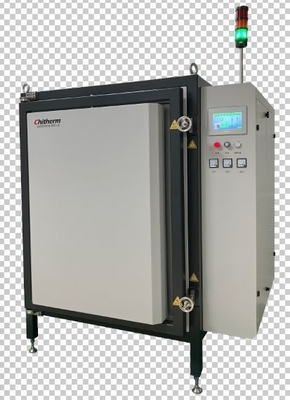

HBF300-13 High-Temperature Box Furnace with 1300°C heating capability

Key Features

Three heating zones for precise temperature control
Maximum heating power ≤70kW
Natural and forced cooling options available
Programmable logic controller (Siemens)
Touchscreen interface for easy operation
Type S thermocouples for accurate temperature measurement

Standard Equipment Package

Primary Configuration: Kiln main unit (1 unit)

Control System: Temperature control module, PLC, touchscreen interface

Heating Components: Silicon carbide rods, ceramic tubes, firing plate

Documentation: Certification of inspection, technical manuals

Installation Requirements

Operating environment: 0~40°C, humidity ≤80% RH
Minimum installation space: 2800×2000×3000mm (D×W×H)
Power requirement: >90kVA three-phase supply
Ventilation: Exhaust capacity >10m³/h

Frequently Asked Questions

What products does Chitherm offer?

We provide high-quality industrial furnaces including bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and specialized kilns for various thermal processes.

What pre-sales services are available?

Our team offers comprehensive consultation services and customized solutions to match your specific process requirements.

What are Chitherm's core strengths?

As a high-tech enterprise, we combine patented technologies with extensive manufacturing experience to deliver superior thermal processing solutions.

Chitherm 1000°C muffle furnace for ceramic sintering
