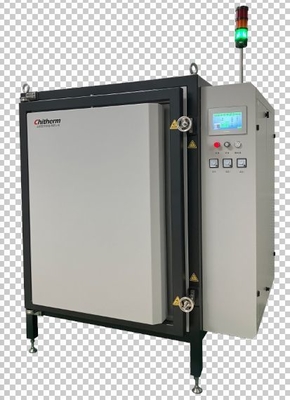

Hbf300-13 Advanced Heating Elements High Temperature Box Furnace For Material Testing

Large Image : Hbf300-13 Advanced Heating Elements High Temperature Box Furnace For Material Testing

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF300 - 13

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	31200
Packaging Details:	Wooden Package
Delivery Time:	60-90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now

Hbf300-13 Advanced Heating Elements High Temperature Box Furnace For Material Testing

Description

Model NO.:	HBF300 - 13	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Steel Molding
Fuel:	Electric	Effective Chamber Dimensions:	560780700mm(WHD)
Atmosphere:	Air	Rated Temperature:	1250ºC
Maximum Temperature:	1300ºC	Transport Package:	Wooden Package
Specification:	157020501830mm (WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Production Capacity:	50 Sets/Year
Highlight:	Hbf300-13 High Temperature Box Furnace , Advanced Heating Elements Box Furnace , Box Furnace For Material Testing

HBF300-13 Advanced Heating Elements High Temperature Box Furnace

Product Specifications

Model NO.	HBF300 - 13
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Steel Molding
Fuel	Electric
Effective Chamber Dimensions	560780700mm (WHD)
Atmosphere	Air
Rated Temperature	1250ºC
Maximum Temperature	1300ºC
Transport Package	Wooden Package
Specification	157020501830mm (WHD)
Production Capacity	50 Sets/Year

Product Overview

The HBF300-13 high-temperature box furnace is designed for laboratory environments requiring precise temperature control. Featuring advanced heating elements and uniform temperature distribution, this furnace is ideal for material testing, heat treatment, and other high-temperature applications across various industries.

Technical Parameters

Model: HBF300-13 High-Temperature Box Furnace
External Dimensions: 1540×1800×1380mm (W×H×D)
Chamber Dimensions: 560×780×700mm (W×H×D)
Effective Dimensions: 400×600×550mm (W×H×D)
Heating Elements: Silicon carbide rods in ceramic tubes
Number of Heating Zones: 3
Maximum Heating Power: ≤70kW
Cooling Method: Natural cooling with furnace or forced cooling with blower
Power Supply: >90kVA, three-phase five-wire 220V/380V, 50Hz

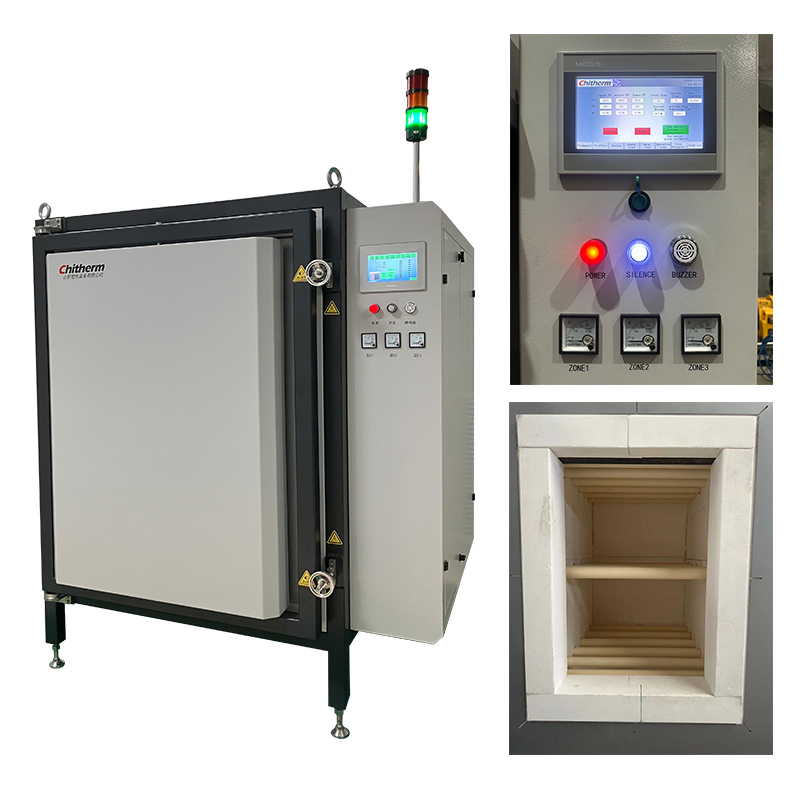

HBF300-13 High-Temperature Box Furnace with 1600°C class heating elements

Standard Equipment Package

Component	Description	Quantity
Kiln Main Unit	Core equipment of industrial electric kiln	1 Unit
Temperature Control Module	Precision temperature control system	1 Unit
Thermocouple (Type S)	High-precision temperature sensor	3 Pieces
Touchscreen Interface	HMI for kiln control	1 Unit
Programmable Logic Controller	Siemens automation control system	1 Unit
Silicon Carbide Rod	Heating element spare parts	2 Rods

Operating Requirements

Environment: 0~40ºC, ≤80% RH, free of corrosive gases
Ventilation: Exhaust capacity >10m³/h
Power: >90kVA, three-phase five-wire 220/380V, 50Hz
Installation Space: 2800×2000×3000mm (D×W×H)

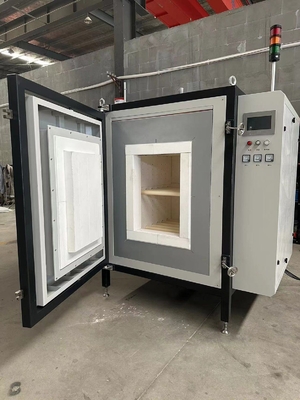

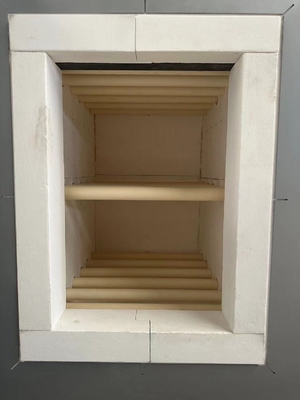

Alumina fiber lined HBF300-13 box furnace with 1600°C class heating elements

About Chitherm

Hefei Chitherm Equipment Co., Ltd. specializes in the R&D, manufacturing, and sales of high, medium, and low temperature industrial and laboratory furnaces. Our product range includes Bell Furnaces, Box Furnaces, Tube Furnaces, and Vacuum Furnaces, serving industries such as advanced ceramics, powder metallurgy, and lithium battery materials production.

We are committed to providing high-quality products and customized solutions for material processing applications including sintering, degreasing, firing, and ceramic metallization.

Chitherm 1000°C Muffle Furnace BF216-11 for LTCC ceramic sintering
