Elevator Furnace Type BF150-17 50kW Heating Power 800mm Lifting Trip

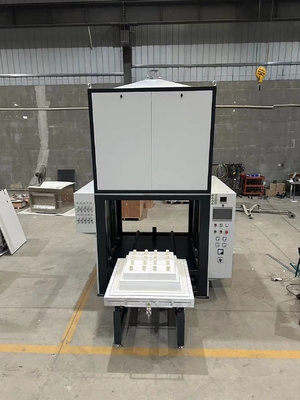

Large Image : Elevator Furnace Type BF150-17 50kW Heating Power 800mm Lifting Trip

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	BF150-17

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Customized
Delivery Time:	Customized
Payment Terms:	Customized
Supply Ability:	Customized

Contact Now Chat Now

Elevator Furnace Type BF150-17 50kW Heating Power 800mm Lifting Trip

Description

Range Of Applications:	Industrial	Type:	Electric Holding Furnace
Usage:	Steel Molding	Fuel:	Electric
Atmosphere:	Air	Effective Chamber Dimensions:	1740&;2780&;2505 (mm) (W×h×d)
Rated Temperature:	1650ºC	Maximum Temperature:	1700°c
Transport Package:	Wooden Packaging	Specification:	1740&; 2780&; 2505 (mm) (W× H× D)
HS Code:	8514101000	Supply Ability:	50 Sets/Year
Place Style:	Vertical
Highlight:	Type BF150-17 Elevator Furnace , 50kW Heating Power Elevator Furnace , 800mm Lifting Trip Elevator Furnace

Elevator Furnace Type BF150-17 50kW Heating Power 800mm Lifting Trip

Product Specifications

Attribute	Value
Range of Applications	Industrial
Type	Electric Holding Furnace
Usage	Steel Molding
Fuel	Electric
Atmosphere	Air
Effective Chamber Dimensions	1740×2780×2505 mm (W×H×D)
Rated Temperature	1650°C
Maximum Temperature	1700°C
Transport Package	Wooden Packaging
Specification	1740×2780×2505 mm (W×H×D)
HS Code	8514101000
Supply Ability	50 Sets/Year
Place Style	Vertical

Product Overview

Hefei Chitherm Equipment Co., Ltd. specializes in industrial furnaces for advanced ceramics, electronic components, powder metallurgy, and new energy applications. Our product range includes bell furnaces, box furnaces, vacuum furnaces, and more, designed for various thermal treatment processes.

Applications

Designed for electronic ceramic materials, magnetic materials, and ceramic filters requiring high temperature uniformity or small batch production.

Technical Specifications

Rated Temperature: 1650°C
Maximum Temperature: 1700°C
Effective Dimensions: 550×500×550 mm (D×W×H)
Heating Method: U-shaped silicon molybdenum heater
Thermocouple: B-Type
Temperature Control: 1 Point
Temperature Accuracy: ±1°C (flat temp. insulation)
Control Mode: PID control module imported from Japan
Heat-up Rate: 400-1000°C ≤5°C/min, 1000-1500°C ≤2°C/min
Temperature Uniformity: ±5°C (empty furnace at 1500°C for 2 hours)
Maximum Lifting Trip: 800mm
Exhaust System: 1 exhaust chimney at top
Maximum Heating Power: 50kW
Insulation Power: ≤25kW
External Dimensions: 1740×2780×2505 mm (D×W×H)
Appearance Color: Light gray

Delivery List

Item	Note	Qty.
Basic Components	Furnace	1 SET
Inspection Certificates	Certificates of major outsourced components	1 SET
Technical Documents	Instructions, technical documents	1 SET
Control Cabinet	1000×2000×600 mm (W×H×D)	1 SET
Key Components	Heating Plate (U-shaped silicon molybdenum heater)	1 SET
Flow Meter	TOFCO	1 SET
Thermocouple	THERMOWAY	1 SET
Lifting System		1 SET
Temperature Control Module	Azbil	1 SET
PLC	SIEMENS	1 SET
Touch Screen	MCGS	1 SET
Spare Parts	Heating Element (U-shaped silicon molybdenum heater)	1 PC

Operating Conditions

Environmental: 0-40°C, humidity ≤80%RH, no corrosive gas
Atmosphere: Dry, clean, oil-free compressed air (0.2-0.4MPa, 10-30 m³/h)
Ventilation: Non-contact access to pumping system (>35 m³/h)
Ground: Horizontal, minimal vibration, load-bearing >600 kg/m²
Power: >70kVA, 3-phase 5-line, 220/380V, 50Hz
Installation Space: 3800×2650×3500 mm (D×W×H), area >12m²

Certifications

Packaging & Shipping

Frequently Asked Questions

What products does Chitherm offer?

We provide bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, and various other industrial furnace solutions.

What pre-sales services does Chitherm provide?

We offer consultation services and customizable solutions to meet specific requirements.

What are Chitherm's core strengths?

As a high-tech enterprise with patented technologies, we deliver superior industrial furnace solutions through integrated R&D, manufacturing, and sales.
