BF220-17NH Type B Thermcouple Elevator Furnace

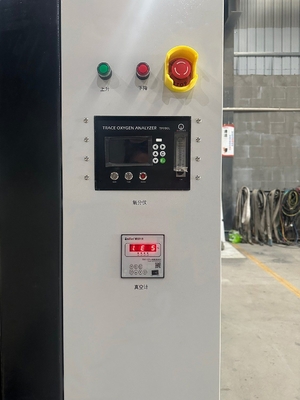

Large Image : BF220-17NH Type B Thermcouple Elevator Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	BF220-17NH

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	142173
Packaging Details:	Wooden Packaging
Delivery Time:	60-90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now Chat Now

BF220-17NH Type B Thermcouple Elevator Furnace

Description

Atmosphere:	H2/N2	Effective Chamber Dimensions:	Φ750*500
Transport Package:	Wooden Packaging	Specification:	224029003000mm(WHD)
Trademark:	Chitherm	Production Capacity:	50 Sets/Year
Highlight:	Type B thermocouple elevator furnace , BF220-17NH elevator furnace , high-temperature elevator furnace with thermocouple

BF220-17NH Type B Thermocouple Elevator Furnace

Product Specifications

Attribute	Value
Atmosphere	H2/N2
Effective Chamber Dimensions	Φ750*500
Transport Package	Wooden Packaging
Specification	224029003000mm(WHD)
Trademark	Chitherm
Production Capacity	50 Sets/Year

Technical Specifications

Rated Temperature: 1600°C
Maximum Temperature: 1650°C
Effective Dimensions: Φ750×50
Heating Method: Molybdenum-made heater
Thermocouple: Type B
Temperature Control: 3 heating groups with independent temperature control points
Temperature Set Accuracy: ±1°C (flat temperature insulation)
Temperature Control Mode: PID control module imported from Japan
Heat-up Rate: RT~1200°C ≤5°C/min, 1200~1600°C ≤3°C/min
Temperature Uniformity: ±5°C (empty furnace insulation test 2 hours under 1600°C)
Dew point range: -20~60°C
Furnace Surface Temperature: <35°C
Pressure range: 5000~15000Pa
Vacuum detection: Digital vacuum gauge displays vacuum value
Loading Weight: ≤3500kg (with firing furniture and products)
Explosion protection: Exhaust valve automatically opens when pressure exceeds set value
Exhaust chimney: Includes ignition device
Alarm System: Comprehensive protection including over temperature, broken couple, electric leakage, etc.
Maximum Heating Power: 120kW
Insulation Power: ≤60kW
External Dimensions: 2240×2900×3000mm (W×H×D) without control cabinet

Delivery List

Item	Note	Quantity
Basic Components	Furnace	1 SET
Inspection Certificates	Certificates of major outsourced components	1 SET
Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 SET
Key Components	Molybdenum wire (Custom-made)	1 SET
Flow Meter	Azbil or HORIBA	1 SET
Thermocouple	Song Qi	1 SET
Lifting System		1 SET
Temperature Control Module	Azbil	3 SET
PLC	SIEMENS	1 SET
Touch Screen	MCGS	1 SET
Spare Parts	Heater	1 PC

Company Profile: Hefei Chitherm Equipment Co., Ltd.

As a leading industrial furnace manufacturer, we specialize in R&D, production, and service of comprehensive thermal processing solutions across low/medium/high temperature ranges. Our product portfolio includes bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary kilns, roller hearth furnaces, and pusher furnaces.

These systems serve critical thermal processing needs in advanced ceramics, electronic components (MLCC/HTCC/LTCC), thick-film circuits, additive manufacturing, powder metallurgy (CIM/MIM), new energy (lithium battery electrodes), photovoltaics, and magnetic materials - supporting material processes including sintering, dewaxing, heat treatment, ceramization, and specialized treatments for ITO targets and ceramic filters.
