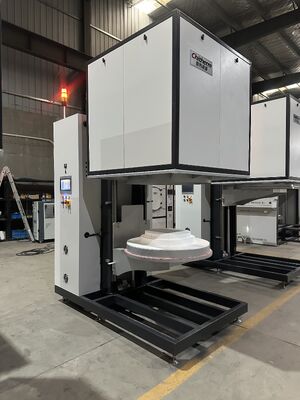

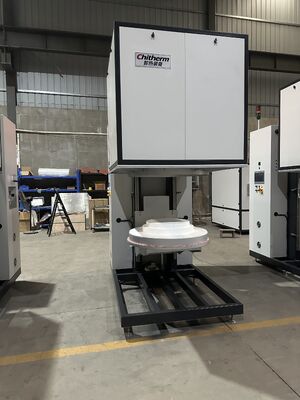

Ztl9815 1500℃ Ultra-High Temperature Bell Jar Furnace

Large Image : Ztl9815 1500℃ Ultra-High Temperature Bell Jar Furnace

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	ZTL9815

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now Chat Now

Ztl9815 1500℃ Ultra-High Temperature Bell Jar Furnace

Description

I. Equipment Overview

Name: High-Temperature Bell Jar Furnace
Model: ZTL9815
Application Field: Specifically designed for the high-temperature sintering process of electronic ceramics, magnetic materials, special ceramics and other products. It is suitable for research and development as well as production with high requirements for temperature control accuracy and uniformity.

2. Core Technical Indicators

Indicator Item	Parameter Specification	Remarks/Conditions
Rated Temperature	1600ºC	Long-term operating temperature
Maximum Temperature	1700ºC	Short-term achievable temperature
Effective Working Area	500 (W) × 500 (H) × 500 (D) mm	Meets various material loading requirements
Heating Power	Max. 50 kW	Full-power heating
Heat Preservation Power Consumption	≤ 25 kW (Empty Furnace)	Reference value of heat preservation energy consumption for empty furnace
Temperature Uniformity	≤ ±5ºC	Measured at 1500ºC with empty furnace kept warm for 2 hours
Temperature Control Accuracy	±1ºC	High-temperature constant temperature platform state
Number of Temperature Control Points	1 point	Single-zone control
Heating Rate	≤ 5ºC/min (400~1000ºC); ≤ 2ºC/min (1000~1500ºC)	Settable to meet different process curves
Worktable Load Capacity	≤ 1000 Kg	Including products and carriers (e.g., crucibles, base plates, etc.)

3. Key Configurations and Systems

Category	Configuration Details
Heating System	Heating Element: U-shaped silicon molybdenum rods, high temperature resistant and long service life.
Temperature Measurement System	Temperature Measuring Thermocouple: R-class noble metal thermocouple, suitable for ultra-high temperature measurement.<br>Temperature Control Instrument: High-precision temperature controller imported from Japan, supporting P.I.D control and self-tuning function to ensure accurate and stable temperature control.
Control System	Control Method: High-performance phase-shift voltage regulation + SCR (Thyristor) module control to achieve smooth stepless power regulation.<br>Protection Functions: Equipped with multiple sound and light alarms and automatic protection functions for over-temperature, thermocouple breakage, over-current, over-load, over-travel, deviation, etc.
Mechanical Structure	Lifting System: Lead screw transmission mechanism with a maximum lifting stroke of about 800mm, running stably.<br>Exhaust System: Automatically opening and closing exhaust chimney on the furnace top for process waste gas emission.
Furnace Frame	Steel structure, firm and stable.

4. Equipment Dimensions and Weight

Equipment Overall Dimensions (Reference): Approx. 1740 (W) × 2780 (H) × 2505 (D) mm

(Note: Excluding the dimensions of the independent control cabinet)

Equipment Weight: Approx. 2000 Kg

5. Overall Design
The equipment adopts a classic bell-type design, mainly composed of the furnace chamber (bell cover), fixed frame, carrying trolley, lead screw lifting mechanism, and independent electronic control system. It has a compact structure and is convenient for operation and maintenance, especially suitable for process scenarios that require loading and unloading materials from the top.

6.Delivery List

Table 1 Delivery list
	Item	Note	Qty.
Basic Components	Furnace		1 SET
	Inspection Certificates	Certificates of major outsourced components	1 SET
	Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 SET
			1 SET
Key Components	Heating Plate	U-shaped silicon molybdenum heater	1 SET
	Baking plate	Corundum-mullite.	1 SET
	Thermocouple	THERMOWAY	1 SET
	Lifting System		1 SET
	Temperature Control Module	Azbil	1 SET
	PLC	SIEMENS	1 SET
	Touch Screen	MCGS	1 SET
Spare Parts	Heating Element	U-shaped silicon molybdenum heater	1 PC

4. Equipment Normal Operating Conditions

Environmental Conditions: temperature: 0~40ºC, humidity≤ 80%RH, no corrosive gas, no strong airflow disturbance;
Atmosphere Conditions: dry, clean, oil-free compressed air, working pressure of 0.2- 0.4MPa, gas consumption of 9 m³/h;
Ventilation System: non-contact access to the user pumping system, pumping capacity is greater than 10 m³/h
Ground Requirements: horizontal, no obvious vibration, load-bearing> 500 Kg/m²;
Power Condition(TBD): capacity >43kVA, 3-phases 5-lines, voltage 220 / 380V, frequency 50Hz. Fire line: yellow, green, red, Zero line: blue, Ground line: yellow-green;
Installation Site: 3000mm×3000mm×3000mm(D×W×H), with an installation area greater than 9m².
