HBF300-13 High-Temperature Box Furnace: Precise Temperature Control, High-Efficiency Sintering

Large Image : HBF300-13 High-Temperature Box Furnace: Precise Temperature Control, High-Efficiency Sintering

Product Details:

Place of Origin:	China
Brand Name:	Chitherm
Model Number:	HBF300 - 13

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	31200
Packaging Details:	Wooden Package
Delivery Time:	60-90 work days
Payment Terms:	L/C,T/T
Supply Ability:	50 Sets/Year

Contact Now Chat Now

HBF300-13 High-Temperature Box Furnace: Precise Temperature Control, High-Efficiency Sintering

Description

Model NO.:	HBF300 - 13	Range Of Applications:	Industrial
Type:	Electric Holding Furnace	Usage:	Steel Molding
Fuel:	Electric	Effective Chamber Dimensions:	560780700mm(WHD)
Atmosphere:	Air	Rated Temperature:	1250ºC
Maximum Temperature:	1300ºC	Transport Package:	Wooden Package
Specification:	157020501830mm (WHD)	Trademark:	Chitherm
Origin:	China	HS Code:	8514101000
Production Capacity:	50 Sets/Year

Overview

Suitable for Various Laboratories: HBF300-13 High-Temperature Box Furnace

The HBF300-13 high-temperature box furnace is designed to meet the diverse needs of laboratory environments. With its advanced heating elements, uniform temperature distribution, and user-friendly operation, it is ideal for a wide range of laboratory processes. Whether for material testing, heat treatment, or other high-temperature applications, this furnace ensures reliable performance and precise temperature control. Its robust construction and safety features make it a versatile and dependable choice for laboratories across various industries.

Specifications

Model: HBF300-13 High-Temperature Box Furnace
External Dimensions: 1540×1800×1380mm (W×H×D)
Chamber Dimensions: 560×780×700mm (W×H×D)
Effective Dimensions: 400×600×550mm (W×H×D)
Rated Temperature: 1250ºC
Maximum Temperature: 1300ºC
Heating Elements: Silicon carbide rods in ceramic tubes
Number of Heating Zones: 3
Maximum Heating Power: ≤70kW
Applicable Atmosphere: Air
Cooling Method: Natural cooling with the furnace
Power Supply: Greater than 90kVA, three-phase five-wire 220V/380V, 50Hz
Cooling Method: Forced cooling with a blower

Equipment Handover Checklist

Table 1 - Delivery Overview
	Name	Main Content	Quantity
Primary Configuration	Kiln Main Unit	The core equipment of the industrial electric kiln	1 Unit
	Certification of Inspection	Documentation certifying the conformity of components	1 Set
	Technical Documentation	Manuals and technical files accompanying major purchased components	1 Set
Key Components	Ceramic Tube for Silicon Carbide Rod	Protective tube for the heating element	1 Set
	Firing Plate or Burner Plate	Component for supporting and firing materials	1 Set
	Temperature Control Module (Yamatake or Equivalent)	Precision temperature control system	1 Unit
	Thermocouple (Type S)	Temperature sensor with S-type calibration	3 Pieces
	Touchscreen Interface	HMI (Human-Machine Interface) for kiln control	1 Unit
	Programmable Logic Controller (Siemens)	Automation control system	1 Unit
	Power Regulator (Taiwan Techsil)	Device for adjusting power output	1 Set
	Blower Fan	Component for air circulation or forced convection	1 Unit
Spare Parts	Silicon Carbide Rod	Heating element for the kiln	2 Rods

Normal Operating Conditions for Equipment

Environmental Conditions: Temperature 0~40ºC, humidity ≤80% RH, free of corrosive gases, and without strong airflow disturbances.
Ventilation System: Non-contact connection to the user's exhaust system, with an exhaust capacity greater than 10m³/h.
Power Requirements: Capacity greater than 90kVA, three-phase five-wire, voltage 220/380V, frequency 50Hz. Live wires: yellow, green, red; neutral wire: blue; ground wire: yellow-green.
Installation Space: 2800mm×2000mm×3000mm (D×W×H), with an installation area greater than 6m².

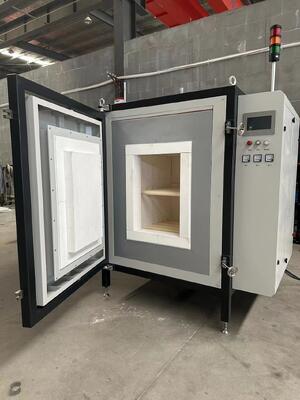

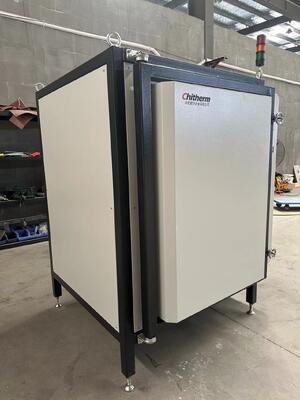

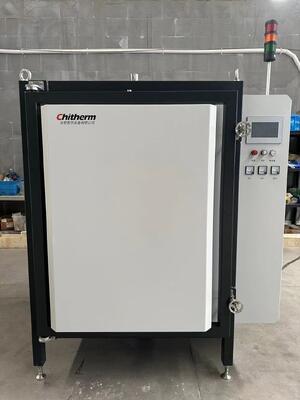

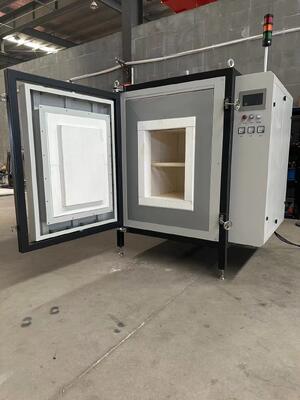

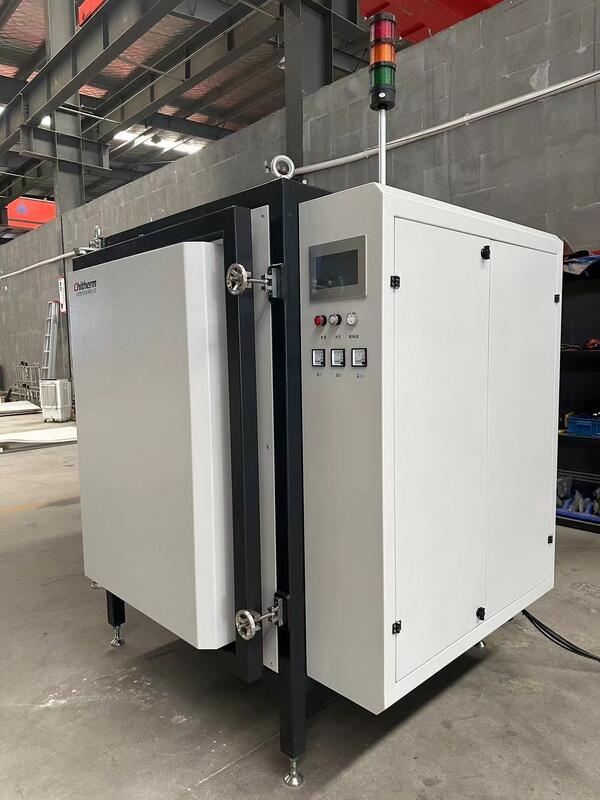

HBF300-13 High-Temperature Box Furnace: Precise Temperature Control, High-Efficiency Sintering 1

HBF300-13 High-Temperature Box Furnace: Precise Temperature Control, High-Efficiency Sintering 2

HBF300-13 High-Temperature Box Furnace: Precise Temperature Control, High-Efficiency Sintering 3
