| Category | Item | Specifications & Description |
|---|---|---|

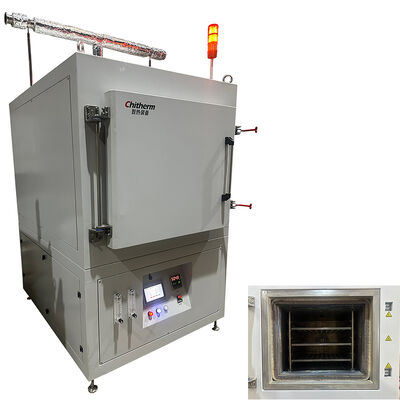

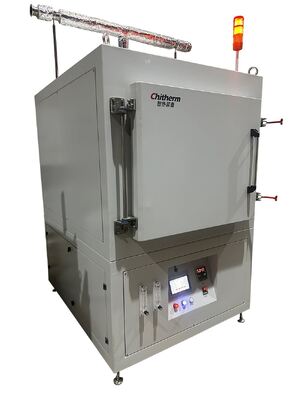

| I. Basic Information | Equipment Name | Hot Air Debinding Furnace |
| Model | HRF216-07N | |
| Color | Light Gray | |
| Total Weight | Approx. 1000 kg | |
| II. Core Performance Indicators | Rated Operating Temperature | 650 ºC |
| Maximum Design Temperature | 700 ºC | |
| Maximum Heating Rate | 5 ºC/min | |
| Temperature Control Stability | ±1 ºC | |
| Temperature Uniformity (Empty Furnace) | ±5 ºC (Tested at 300-600ºC platform with 1h constant temperature) | |
| Surface Temperature Rise | ≤ 35 ºC | |
| III. Structural Dimensions | Effective Chamber Size (W×H×D) | 600 × 600 × 600 mm |
| Overall Equipment Dimensions (W×D×H) | 1300 × 1710 × 1800 mm (Excluding Chimney) | |
| Recommended Installation Space (W×D×H) | 2000 × 3000 × 3000 mm (Area >6m²) | |
| IV. Main Configuration & Material | Furnace Lining Material | SUS310S Stainless Steel |
| Heating Element | Stainless Steel Heater | |
| Material Bearing Method | Stainless Steel Material Tray | |

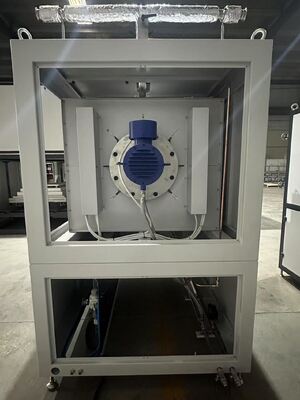

| Hot Air Circulation System | Standard Configuration (Including Fan Overcurrent Protection) | |
| Atmosphere System | Supports Air or Nitrogen | |
| Exhaust System | 1 Manually Adjustable Exhaust Chimney | |
| Water Cooling System | Standard Configuration | |
| Furnace Body Structure | Composed of Frame, Furnace Lining, Furnace Door, etc. | |
| V. Control System | Control Core | Centralized Control by PLC + Touch Screen |
| Temperature Control Instrument | Imported Intelligent Temperature Controller from Japan | |
| Program Control Capability | 4 × 16 Segments Programmable | |
| Temperature Control Points | 1 Point (Controls Chamber Temperature) | |
| Detection/Monitoring Points | 1 Point (Monitors Heating Chamber Temperature) | |
| Thermocouple Type | K Grade | |
| Alarm Protection | Acousto-optic alarm for over-temperature, thermocouple breakage, etc. | |
| VI. Utility Requirements | Power Supply | Capacity: > 32 kVA
System: 3-phase 5-wire, 380V/220V, 50Hz
Wire Color: Live Wire (Yellow/Green/Red), Neutral Wire (Blue), Ground Wire (Yellow-Green)
|
| Gas Supply | Type: Clean Oil-free Compressed Air or High Purity Nitrogen (99.999%)
Pressure: 0.2 ~ 0.4 MPa
Consumption: 3 ~ 7 Nm³/h
|
|
| Water Supply | Requirement: Clean, Non-corrosive, Water Temperature ≤ 23 ºC
Pressure: 0.2 ~ 0.4 MPa
Consumption: 2 ~ 6 L/min
|
|
| Exhaust | Requirement: Non-contact Connection to User's Air Extraction System
Capacity: Exhaust Volume > 10 m³/h
|
|
| VII. Operating Environment | Ambient Temperature | 0 ~ 40 ºC |
| Ambient Humidity | ≤ 80% RH | |
| Environmental Requirements | No Corrosive Gas, No Severe Airflow Disturbance | |
| Ground Requirements | Level, No Obvious Vibration, Load Capacity > 300 kg/m² | |
| VIII. Electrical & Power Consumption | Heating Power | 24 kW |
| Empty Furnace Insulation Power | ≤ 12 kW |
Hefei Chitherm Equipment Co., Ltd. is a professional enterprise engaged in the research and development, design, manufacturing, sales, maintenance and service of high, medium and low temperature industrial furnaces and experimental furnaces. Our products include Bell Furnaces, Box Furnaces, Hot Air Dryer, Tube Furnaces, Vacuum Furnaces, Trolley Furnaces, and Rotary Furnaces. All of which are widely used in scientific research and experimentation in advanced ceramics, additive manufacturing, powder metallurgy, new energy and other fields. Suitable for the extrusion, sintering process of magnetic materials, honeycomb ceramics, alumina ceramics, zirconia ceramics, CIM/MIM, and positive and negative electrode materials of lithium batteries, as well as various other new materials such as pre-firing, extrusion, degreasing, firing, drying, co-firing, post-firing, soldering, curing, ceramic metallization, etc. We insist responsible attitude towards customers and provide high-quality products and services. It is precisely because of the support, understanding, and trust of our customers and friends that our intelligent equipment manufacturing capabilities continue to improve. We are willing to work with customers to support the rapid development of electronis and advance materials all over the world.![]()
![]()
![]()
![]()
![]()
1.What products does Chitherm offer?
We provide customers with high-quality bell furnaces, hot air furnaces, box furnaces, tube furnaces, vacuum furnaces, car bottom furnaces, rotary kilns, mesh belt furnaces, and pusher furnaces.
2.What pre-sales services does Chitherm provide?
We offer timely consultation services to help customers select the most suitable products, along with highly customizable solutions to meet your specific requirements.
3.What are Chitherm's core strengths?
As a high-tech enterprise integrating R&D, manufacturing, and sales, Chitherm possesses patented technologies and core resources to deliver superior solutions.
